2 DESCRIPTION
2.1 Description of EVX802 and EVX812

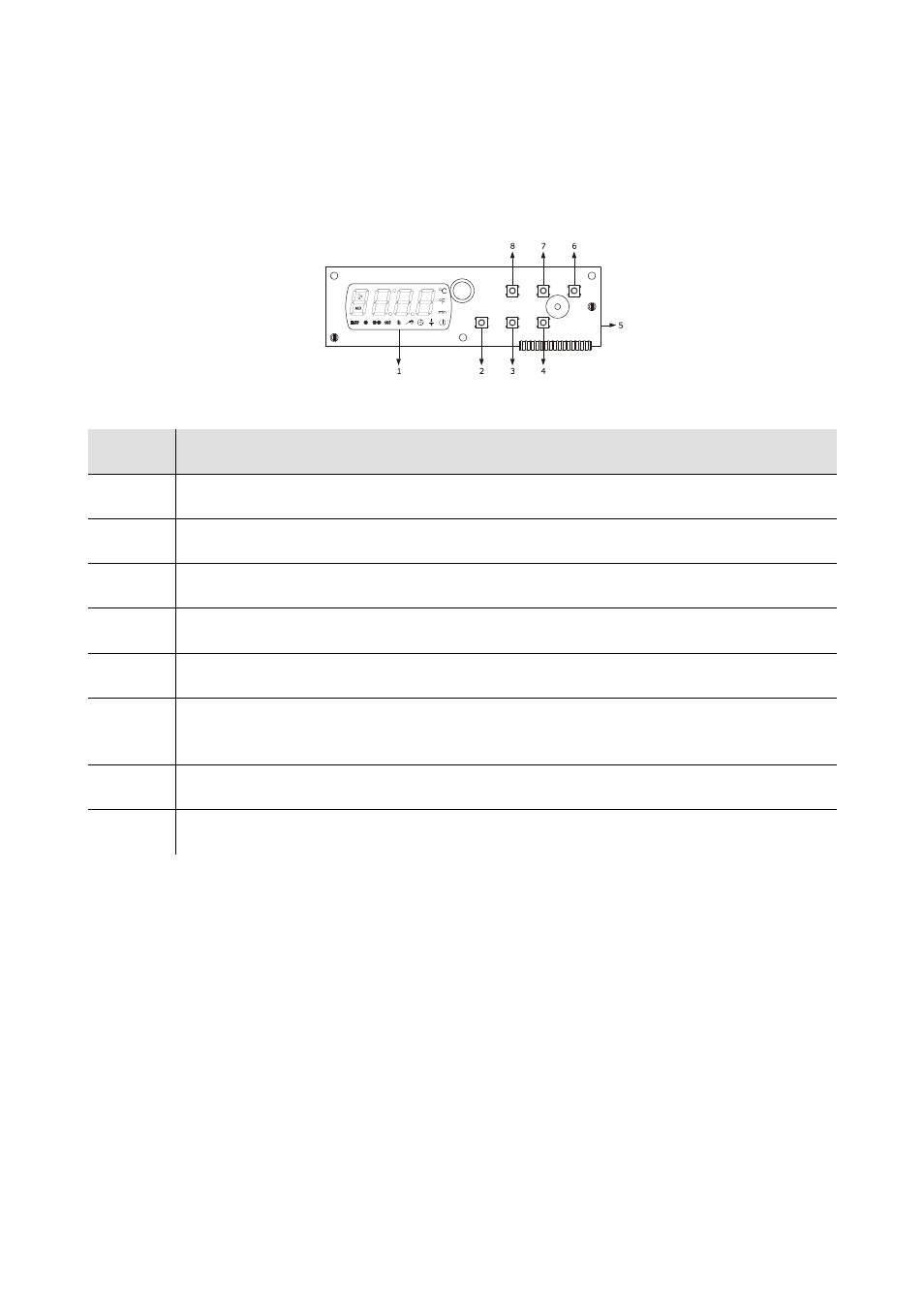

The following drawing illustrates the aspect of EVX802 and EVX812
The following table illustrates the meaning of EVX802 and EVX812. parts.
Part Meaning
1 display
2 blast chilling key
3 deep freezing key
4 hard blast chilling or soft deep freezing key, hereon called HARD/SOFT" key
5 serial port with MODBUS communication protocol
6 switch-on/switch-off/cycle start/cycle cut-off key, hereon called "START/STOP key"
7 increase key, hereon call "UP key"
8 decrease key, hereon call "DOWN key"
For further information, see the next chapters.
