Overview
The Digilab Digital I/O board 2 (the DIO2) is
one of several expansion boards designed to
mate with Digilab system boards. The DIO2
board provides an assortment of frequently
used digital I/O devices, many of which are
controlled by an on-board Xilinx XC95108
CPLD. The CPLD also provides a bus interface
to simplify communications with Digilab
system boards. DIO2 boards can be combined
with Digilab system boards to implement
projects ranging from basic logic designs to
general computer systems, without the need for
any other components.
DIO2 board features include:
• A XC95108 CPLD for I/O device and
system bus control;
• A 16x2 character LCD with integral
Samsung controller IC;
• A four digit seven-segment LED display;
• 16 individual LEDs of various colors;
• An 8-bit VGA port;
• A 15-button keypad;
• 8 slide switches;
• A PS2 mouse/keyboard port;
• An on board 5VDC regulator.
The CPLD comes pre-configured with the
circuit shown in Appendix 1, but it can also be
reprogrammed from any Xilinx CAD tool,
including the free WebPack tools available
from the Xilinx website. CPLD configuration
can be accomplished using the Xilinx JTAG
cable or the Digilent XC95 programming
board.
16x2
LCD
15 LEDs
4 7-seg.
displays
8 switches
15 button
keypad
PS2
port
XC95108
PC84
10
VGA
port
5VDC
regulator
2
3
8
data
control
4
address
6
JTAG
4
Connector B
Connector A
GND
VU
VDD

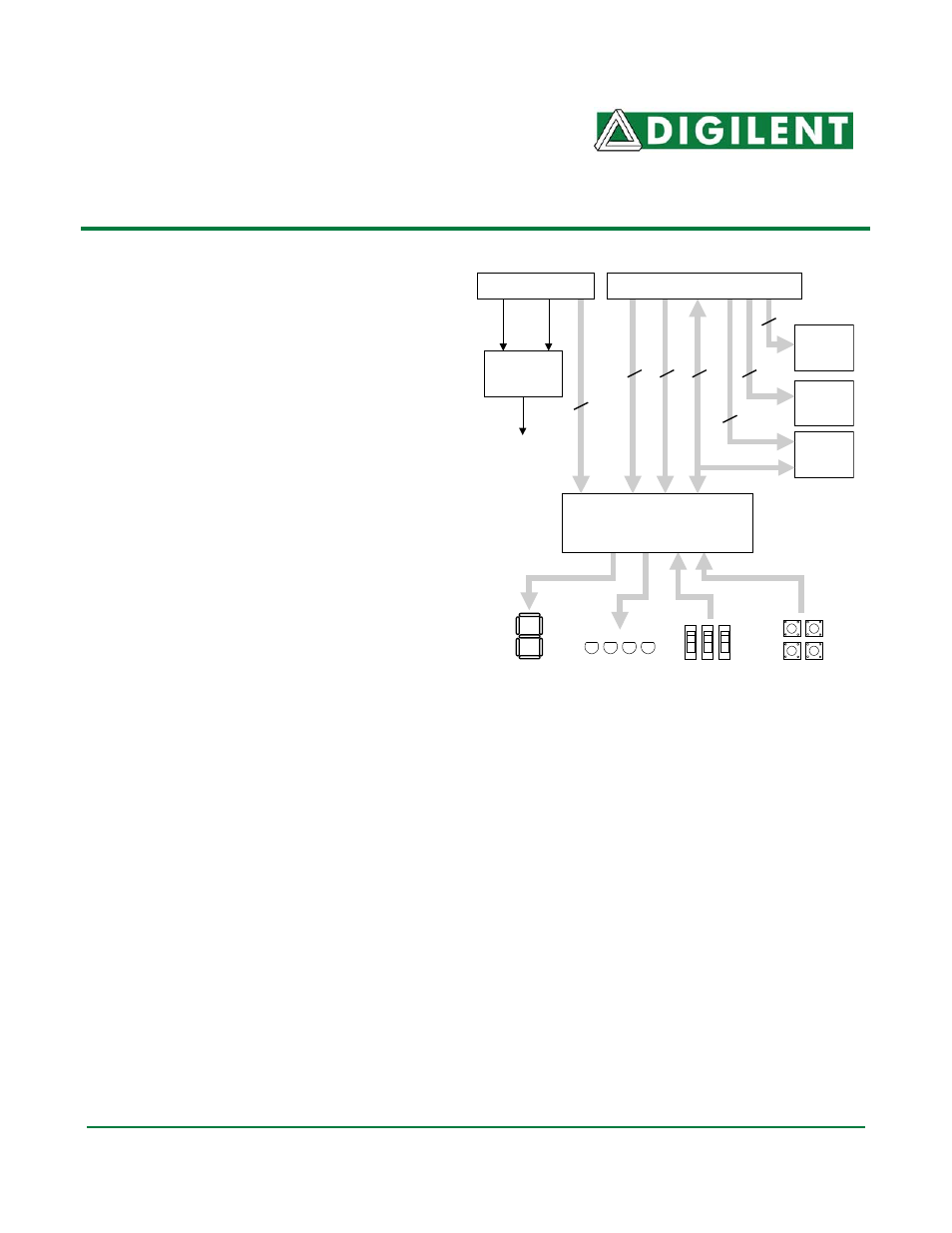

DIO2 circuit board block diagram
