Backup and Restore

You can use the Backup option to save the current configuration saved in
the ES9528 flash to a PC/laptop or a TFTP server.

This allows you to use the Restore option to restore a configuration file
back to the ES9528 or load the same settings to another ES9528. Before
you can restore a configuration file, you must save the backup
configuration file in the PC or TFTP server. The ES9528 then downloads
this file back into the flash.

The ES9528 configuration file is a standard text file. You can open the file
with WordPad or Notepad. You can also modify the file, add/remove the
configuration settings, and then restore the file back to the ES9528.

There are two modes to backup and restore the configuration file on the
web page:

•

Local File

Note: If you have a Windows operating system above Windows XP, you can use the TFTP Server method,

the CLI, PortVision DX, or apply exclusions for Java for the Windows firewall to backup or restore
configuration files.

PortVision DX supports saving and loading configuration files, without any Windows operating
system firewall restrictions.

•

TFTP Server

DHCP Option82 Relay Agent

Circuit ID

Default: Default value of the Circuit-ID.

Port: Port of the switch.

Circuit ID: The Circuit ID includes information specific to which circuit the request
came in on. It is an identifier that is specific to the relay agent, so the type of circuit
varies depending on the relay agent.

Remote-ID

Default: Default value of the Remote-ID.

IP Address: IP Address of the switch.

Remote ID: The Remote-ID carries information relating to the remote host end of the
circuit, which is the MAC address of the relay.

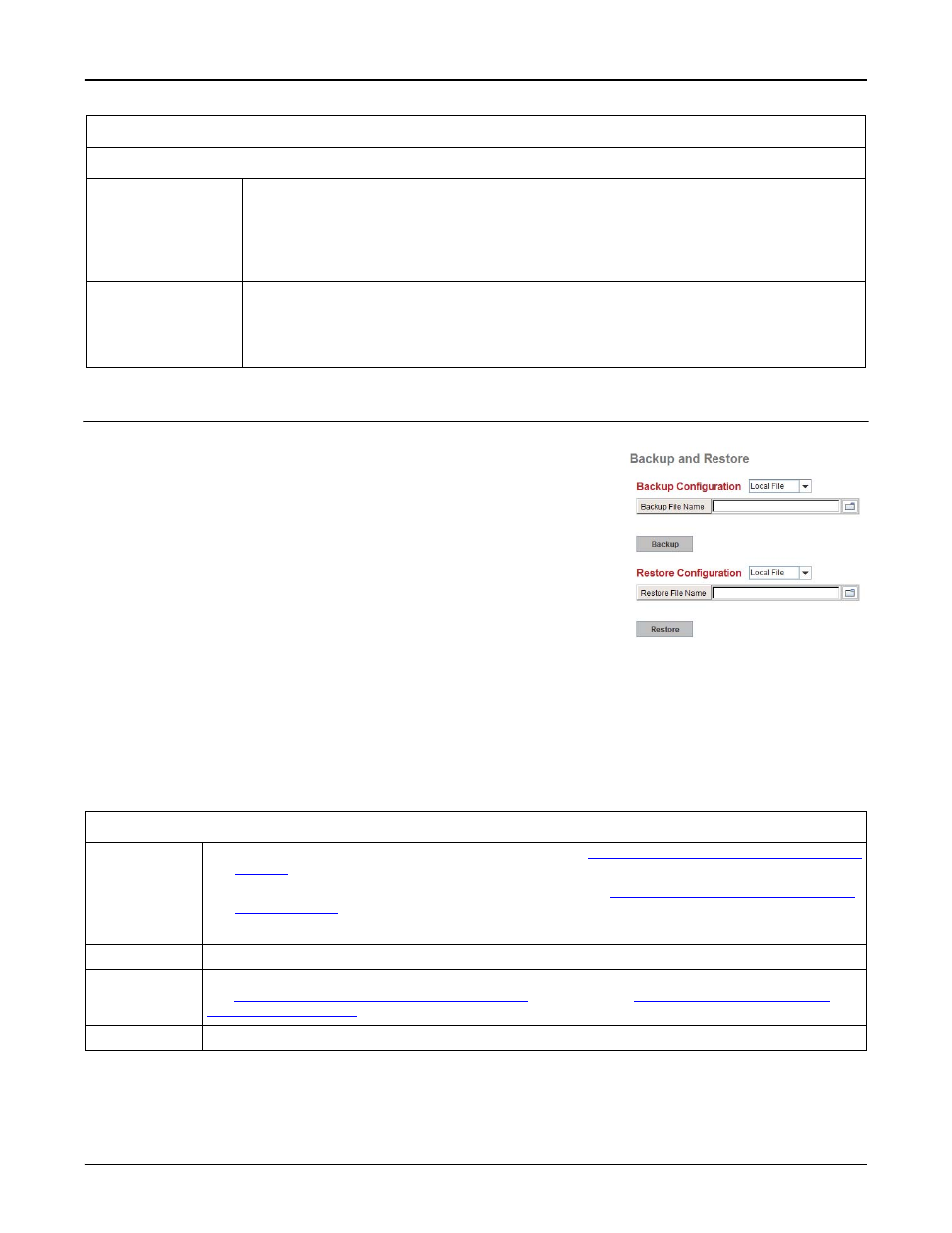

Backup & Restore Page

Backup
Configuration

•

Local File: The ES9528 acts as the file server, see

Backup the Configuration - Local File

Method

on Page 56.

•
