110 - 802.1x Port Configuration RocketLinx ES9528 and ES9528-XT User Guide: 2000508 Rev. G
Configuration Using the Web Interface

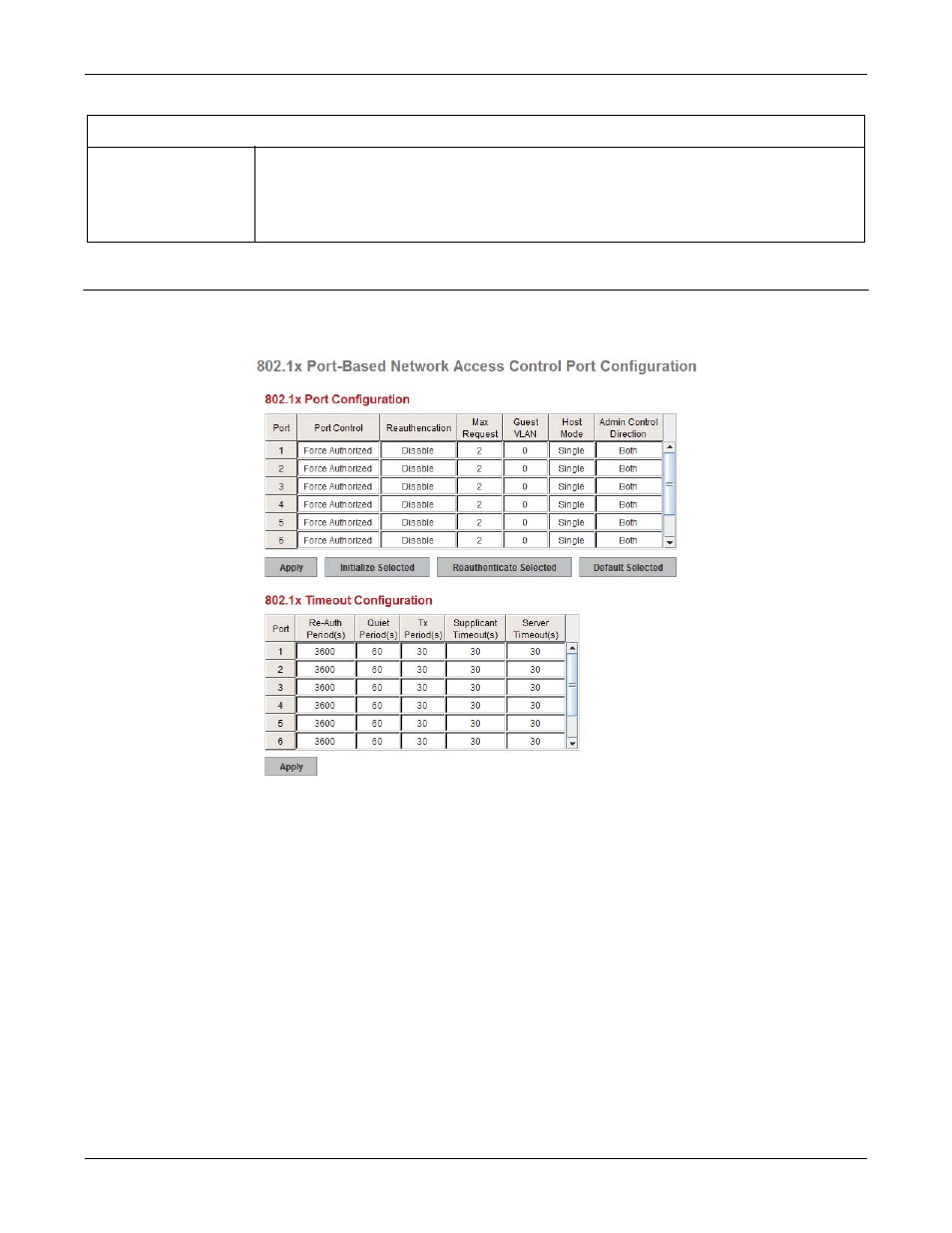

802.1x Port Configuration
After configuring the RADIUS Server or Local RADIUS User List, you also need to configure the authentication
mode, authentication behavior, applied VLAN for each port, and permitted communications.
Local RADIUS User
List
Shows the account information, select Remove to remove a selected account.
• User name: The user name of the local RADIUS user.
• Password: The password of the local RADIUS user.
• VID: The VLAN ID (VID) of the local RADIUS user.
IEEE 802.1x Page (Continued)
