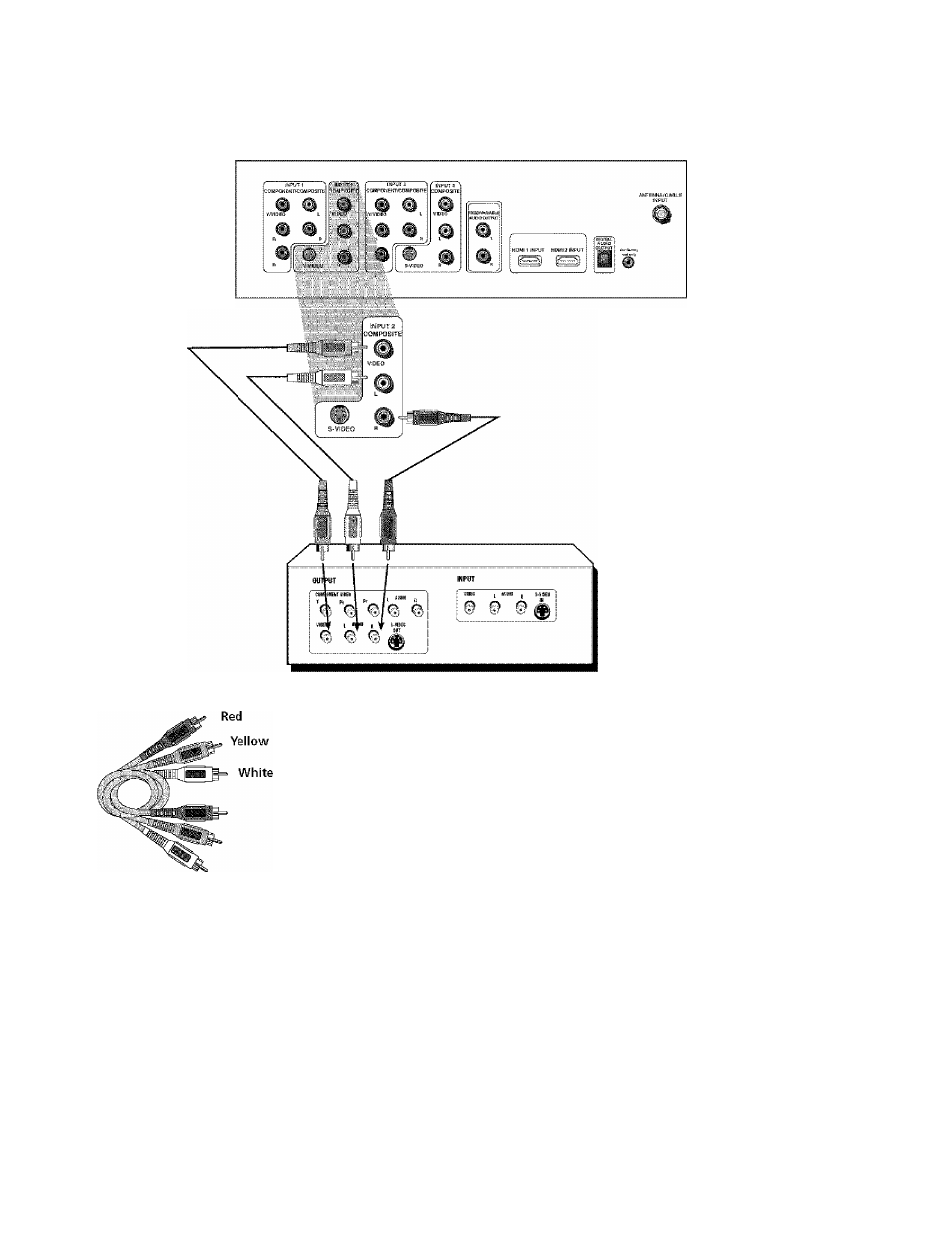

Audio/Video Connection
Note: This hack panel
graphic is for representation
only. Your back panel might
be different.
• If you are done
connecting devices to
your TV, go to page 15
to complete the Assisted
Setup.
• To continue connecting
devices, go to the next
page.
w
Composite cables are color coded-
Yellow= video; Red= right audio; white=
left audio
Connecting the Device
This connection allows you to connect a device
slk
:1
i
as a VCR that has audio,-video
outputs.
Using the example of a VCR:
1. Connect your cable and/or off-air antenna as described on page 8.
2.
Connect your composite audio/video cables to the TV’s input.
Connect c:omposite aiidity'video cables to the IV’s INPliT 2 jacks (R and L-
Audio, and Video) and to the VCR’s atidicx'video outputs.
Notes: Press the INPUT button on the remote control to scroll through the
Video Input Cha nnels u ntil you see Input 2 displayed in the channel ba nner.
You can set up the TV to automatically tune to the correct deidce you want
to view, This is called Auto Tuning. See CJbapter 3 for rnore informaturn on
Auto Tuning.
Chapter 1
