S e n d d o c u m e n t a t i o n c o m m e n t s t o n x 5 0 0 0 - d o c f e e d b a c k @ c i s c o . c o m
2-3
Cisco Nexus 5000 Series Hardware Installation Guide
OL-15902-01
Chapter 2 Cisco Nexus 5000 Series Overview
Cisco Nexus 5020 Switch

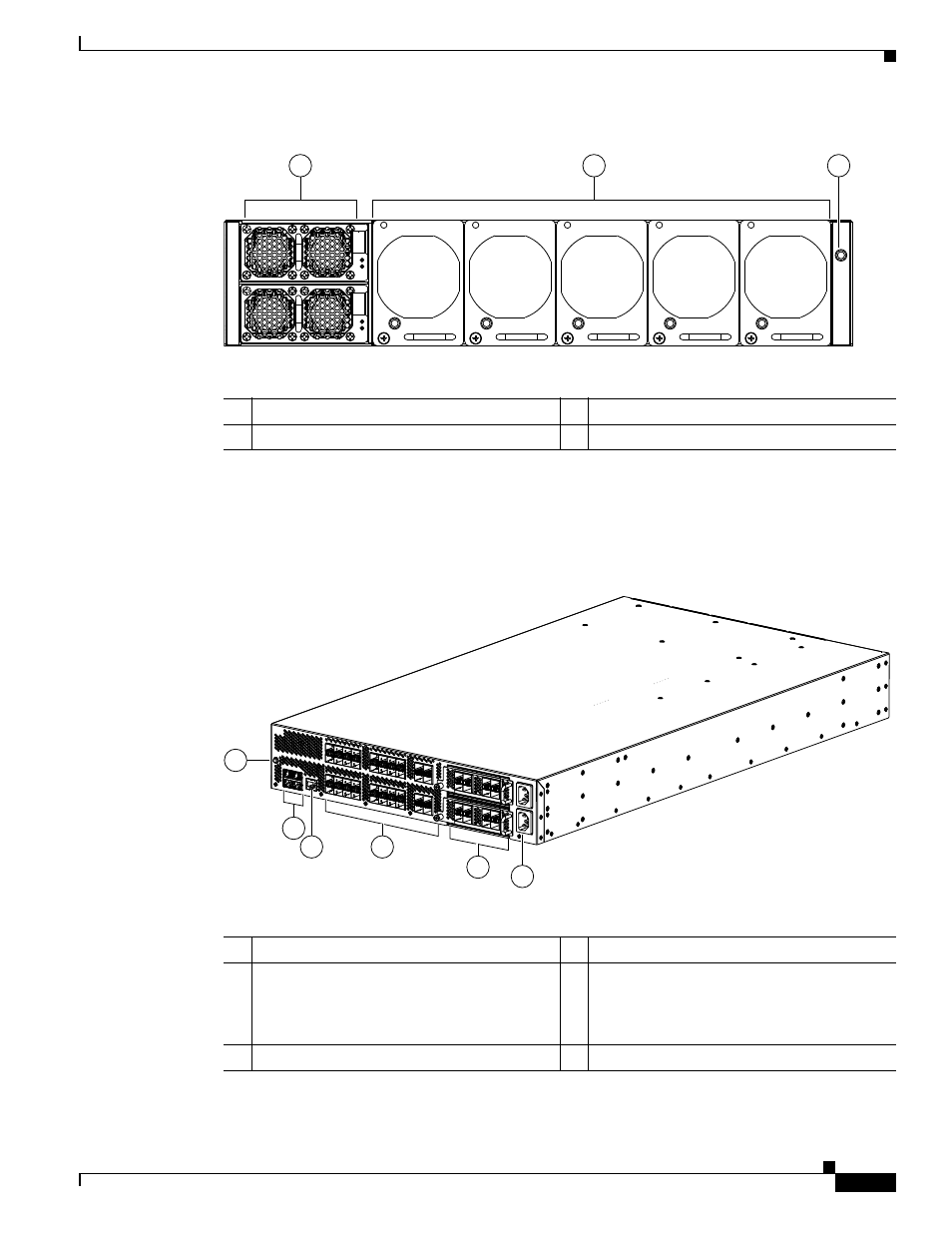

Figure 2-2
Cisco Nexus 5020 Switch Front View Close-up
The rear of the Cisco Nexus 5020 chassis has 40 fixed 10-Gigabit Ethernet ports, 2 slots for optional
expansion modules, an Ethernet connector with 2 cross-connect ports and 2 management ports, a console
port, and 2 AC power connectors.
shows the rear of the Cisco Nexus 5020 switch.
Figure 2-3
Cisco Nexus 5020 Switch Rear View
186261
1
2
3
1
Two power supplies
3
System status LED
2
Five fan modules
186265
2
5
6
3
4
1
1
System status LED
4
40 fixed 10-Gigabit Ethernet ports
2
Ethernet connector with two cross-connect
ports on the left (top and bottom), and two
network management ports on the right (top
and bottom)
5
Expansion modules, shown here with two
4-port Fibre Channel plus 4-port 10-Gigabit
Ethernet expansion modules
3
Console port
6
AC power connectors
