Cisco Nexus 5010 Switch

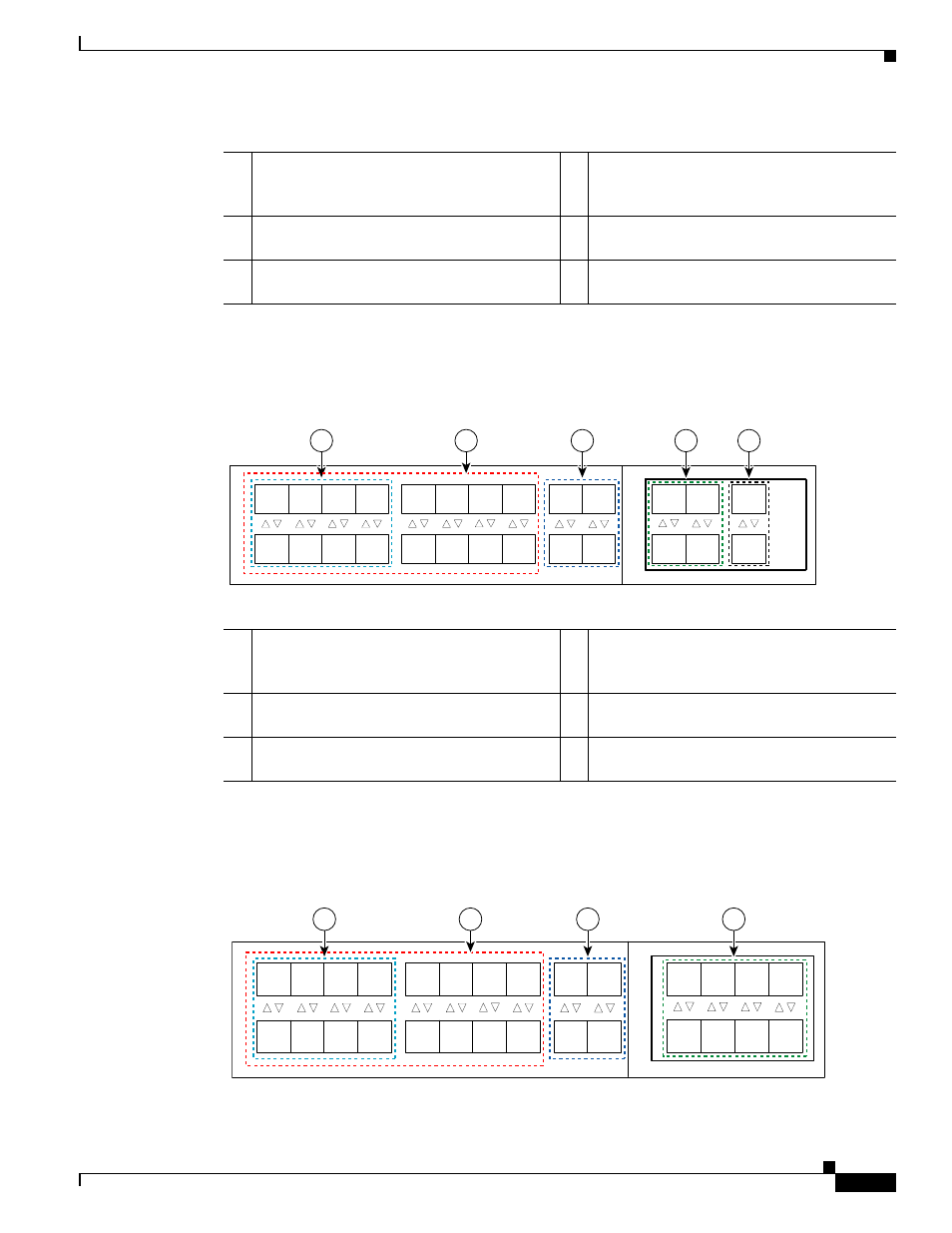

Figure 2-32 shows how ports are numbered and grouped by function with the N5K-M1600 GEM
installed.
Figure 2-32 Port Numbering of the Cisco Nexus 5010 Switch with the N5K-M1600 GEM
Figure 2-33 shows how ports are numbered and grouped by function with the N5K-M1008 GEM
installed.
Figure 2-33 Port Numbering of the Cisco Nexus 5010 Switch with the N5K-M1008 GEM
A Group 1, ports 1 through 8: 10-Gigabit
Ethernet and 1-Gigabit Ethernet capable
unencrypted ports D Group 2, ports 1 through 4: Encrypted
Ethernet ports
B Group 1, ports 1 through 16: Unencrypted
Ethernet ports E Group 2, ports 5 through 8: Fibre Channel
ports
C Group 1, ports 17 through 20: Encrypted
Ethernet ports
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1 2
A B C D E
192242
A Group 1, ports 1 through 8: 10-Gigabit
Ethernet and 1-Gigabit Ethernet capable
unencrypted ports D Group 2, ports 1 through 4: Encrypted
Ethernet ports
B Group 1, ports 1 through 16: Unencrypted
Ethernet ports E Group 2, ports 5 and 8: Unencrypted Ethernet
ports
C Group , ports 17 through 20: Encrypted
Ethernet ports
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1 2
A B C D
