S e n d d o c u m e n t a t i o n c o m m e n t s t o n e x u s 5 k d o c s @ c i s c o . c o m
4-9
Cisco Nexus 5000 Series Hardware Installation Guide
OL-15902-01
Chapter 4 Connecting the Switch
Connecting to a Fibre Channel Port
c.
Insert a dust plug into the cable end of the transceiver.
Caution
If the transceiver does not remove easily in the next step, push the transceiver completely in
and then ensure that the latch is in the correct position before continuing.
Step 3
Remove the transceiver from the port, as follows:
•
If the transceiver has a Mylar tab latch, gently pull the tab straight out (do not twist), and then pull
the transceiver out of the port.
•
If the transceiver has a bale clasp latch, open the clasp by pressing it downwards, and then pull the
transceiver out of the port.
Note
If you have difficulty removing a bale clasp SFP transceiver, you should reseat the SFP by
returning the bale clasp to the up position. Press the SFP inward and upward into the cage. Next,
lower the bale clasp and pull the SFP straight out with a slight upward lifting force (see
). Be careful not to damage the port cage during this process.

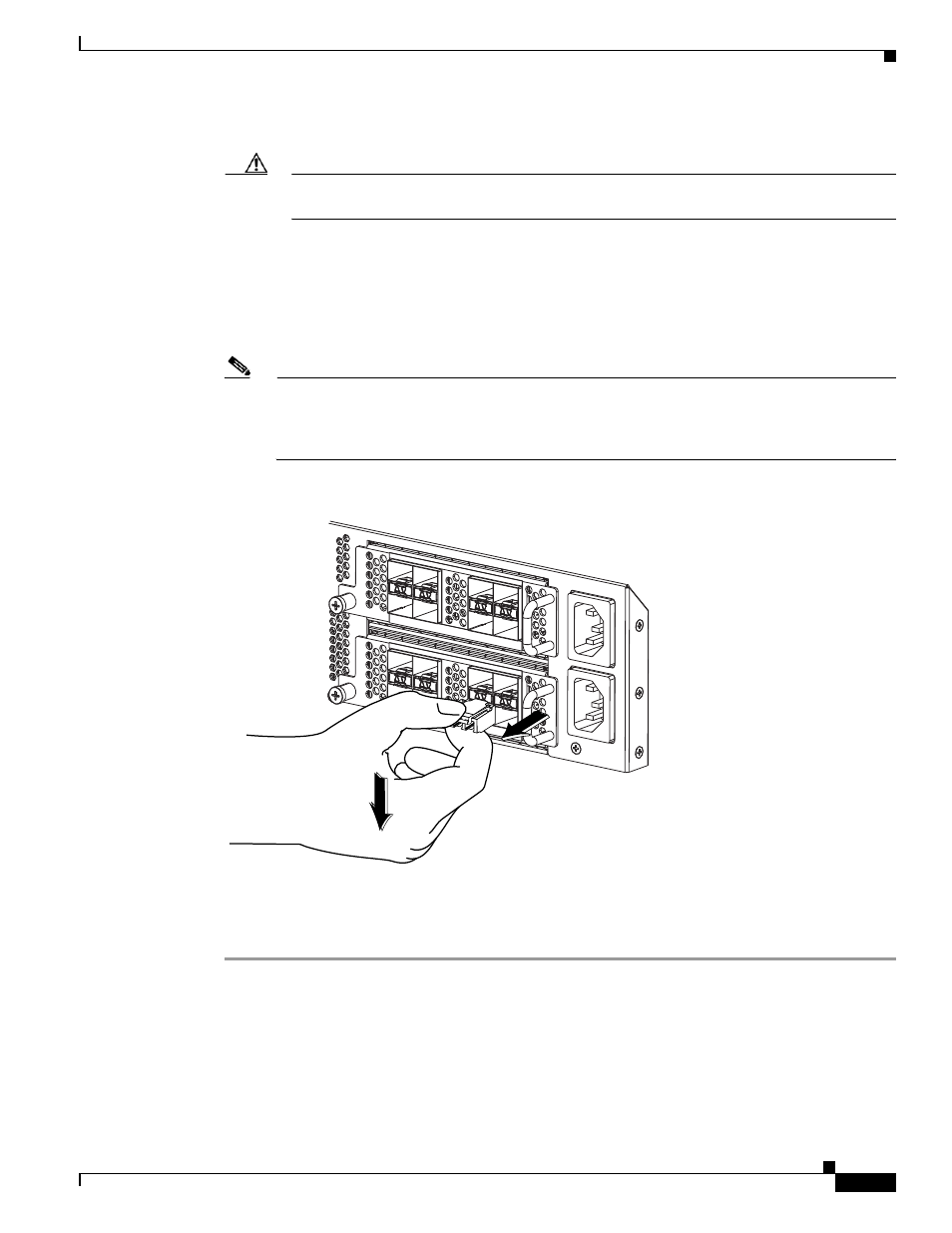

Figure 4-3
Alternate Removal Method for Bale Clasp SFP Transceivers
Step 4
Insert a dust cover into the port end of the transceiver and place the transceiver on an antistatic mat or
into a static-shielding bag if you plan to return it to the factory.
Step 5
If another transceiver is not being installed, protect the optical cage by inserting a clean cover.
186903
