2-30
Cisco Nexus 5000 Series Hardware Installation Guide
OL-15902-01
Chapter 2 Cisco Nexus 5000 Series Overview
Cisco Nexus 5010 Switch

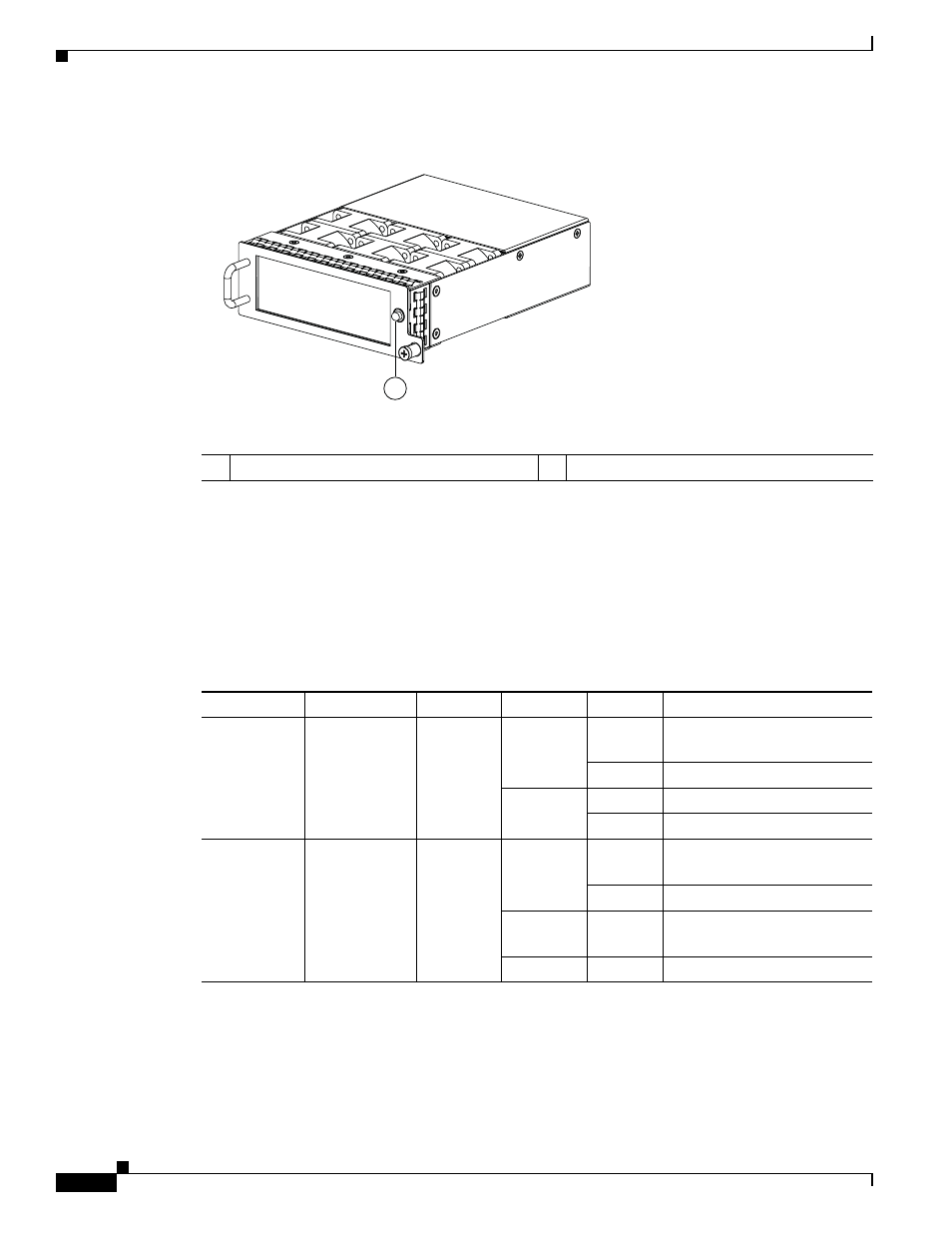

Figure 2-36 Cisco Nexus 5010 Fan Module
The bicolor fan module LED indicates the fan tray health. Green indicates normal operation, while
amber indicates a fan failure.
LED Descriptions
Table 2-9 describes the LEDs for the Cisco Nexus 5010 switch.
189956
1
1 Fan module LED
Table 2-9 LEDs for the Cisco Nexus 5010 Switch
LED Location Function Color Status Description
Power LED Front of
Chassis Chassis
Power/

Health
Green Solid On System is and on operation
normally
Off Switch is powered off
Amber On Fault condition
Fan Tray Status Fan
trays (front)
Fan tray
heath
indicator
(multicolor)
Green Solid On Fan tray operating
normally
Amber Solid On Fan failure within the fan
tray
