S e n d d o c u m e n t a t i o n c o m m e n t s t o n x 5 0 0 0 - d o c f e e d b a c k @ c i s c o . c o m
2-7
Cisco Nexus 5000 Series Hardware Installation Guide
OL-15902-01
Chapter 2 Cisco Nexus 5000 Series Overview
Cisco Nexus 5020 Switch
Ethernet Expansion Module
The Ethernet expansion module supports six 10-Gigabit Ethernet ports, four of which will have
encryption capability. The Ethernet expansion module is a field-replaceable unit (FRU).
Figure 2-8
shows the Ethernet expansion module.

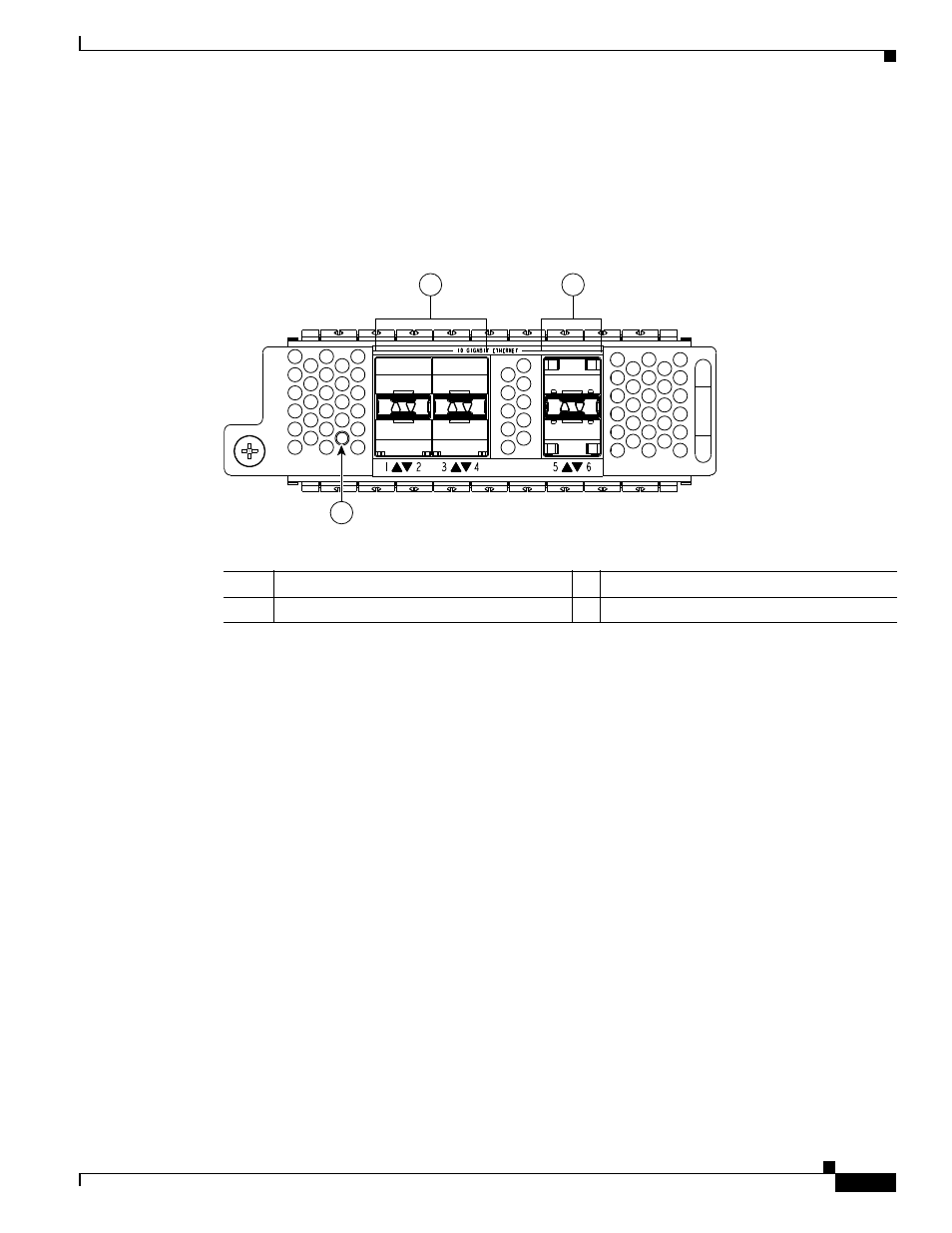

Figure 2-8 Ethernet Expansion Module
See Figure 2-14 for an illustration of how ports are grouped and numbered on the Ethernet expansion
module.
N5K-M1008 Gatos Expansion Module
The N5K-M1008 GEM supports 8 1/2/4G Fiber Channel, SFP-based uplink connection. Figure 2-9
shows the N5K-M1008 GEM.
186259
1 2 3 4 5 6
10 GIGABIT ETHERNET
1 3
2
1 10-Gigabit Ethernet ports 3 10-Gigabit Ethernet ports
2 Module LED
