Chapter 2 Cisco Nexus 5000 Series Overview
Cisco Nexus 5010 Switch

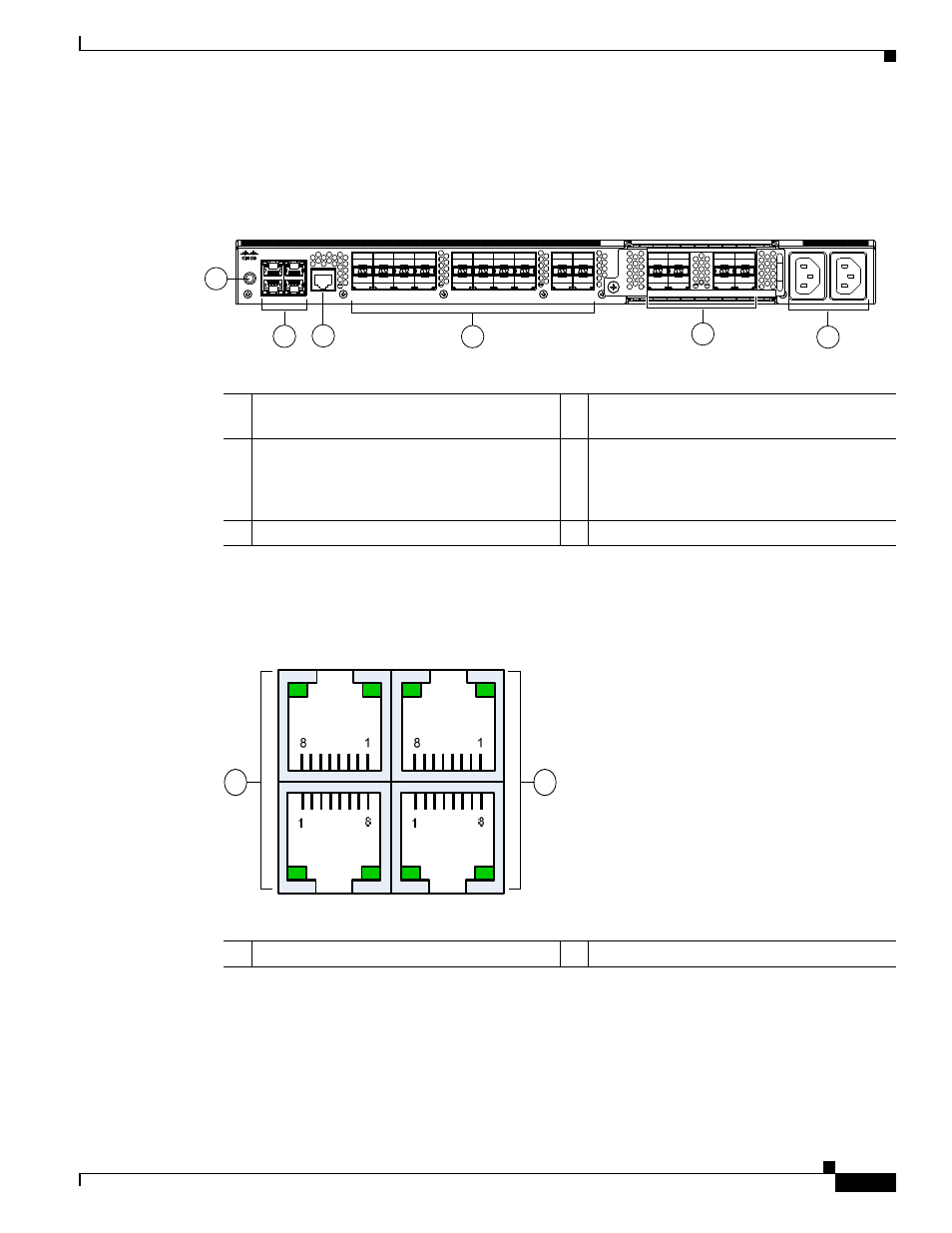

Figure 2-22 shows a close-up view of the rear of the Cisco Nexus 5010 chassis.
Figure 2-22 Cisco Nexus 5010 Switch Rear View Close-up
The Ethernet connector port exposes four Ethernet ports that are in a 2x2 stacked RJ-45 jack. Figure 2-23
shows a close-up view of the Ethernet connector port.
Figure 2-23 Ethernet Connector Port
1
2 6 4 3
189952
5
1 System status LED 4 Slot 1, with 20 fixed 10-Gigabit Ethernet
ports (highlighted in red).
2 Ethernet connector with two cross-connect
ports on left side and two network
management1 (top) and management2
(bottom) ports on the right side 5 Slot 2 for an optional expansion module
3 Console port 6 AC power connectors
1 2
186385
1 Internal cross connect ports 2 Network management ports
