2-23
Cisco Nexus 5000 Series Hardware Installation Guide
OL-15902-01
Chapter 2 Cisco Nexus 5000 Series Overview
Cisco Nexus 5010 Switch

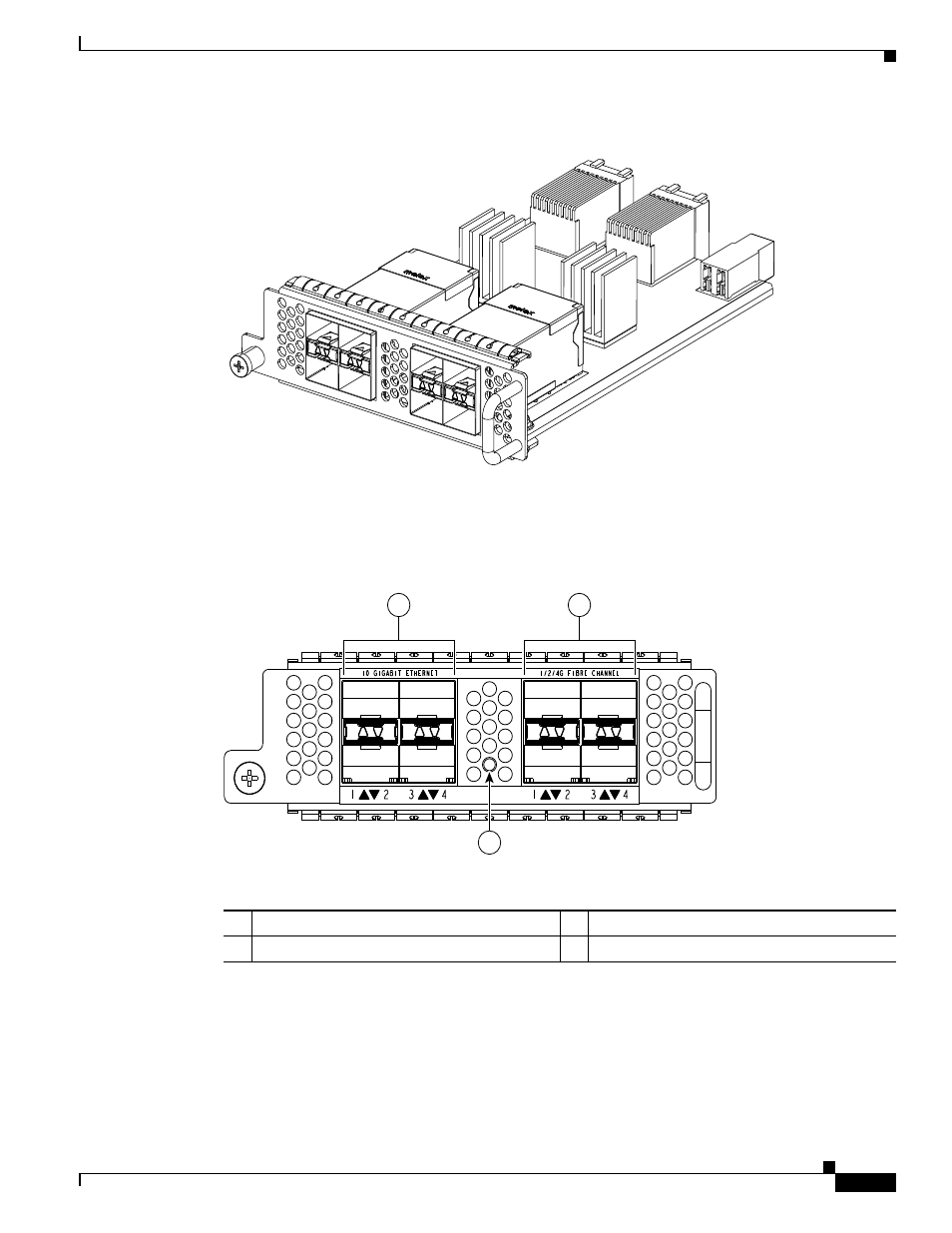

Figure 2-24 N5K-M1404 Gatos Expansion Module
Figure 2-25 shows the front of the N5K-M1404 GEM . Figure 2-13 shows how ports are numbered on
the GEM.
Figure 2-25 Front of the N5K-M1404 GEM
N5K-M1600 Gatos Expansion Module
The N5K-M1600 GEM supports 6 10G SFP+ based uplink connections. Figure 2-26 shows the
N5K-M1600 GEM.
186384
1 2 3 4 1 2 3 4
10 GIGABIT ETHERNET 1/2/4G FIBRE CHANNEL
186258
1 3
2
1 Four 10-Gigabit Ethernet ports 3 Four 1-, 2-, 4-Gbps Fibre Channel ports
2 Module LED
