6. ‡ From scrap 3/16” balsa, cut a piece 1/2”x 1/2”
triangle to form a gusset.
‡ Glue in place, as shown.

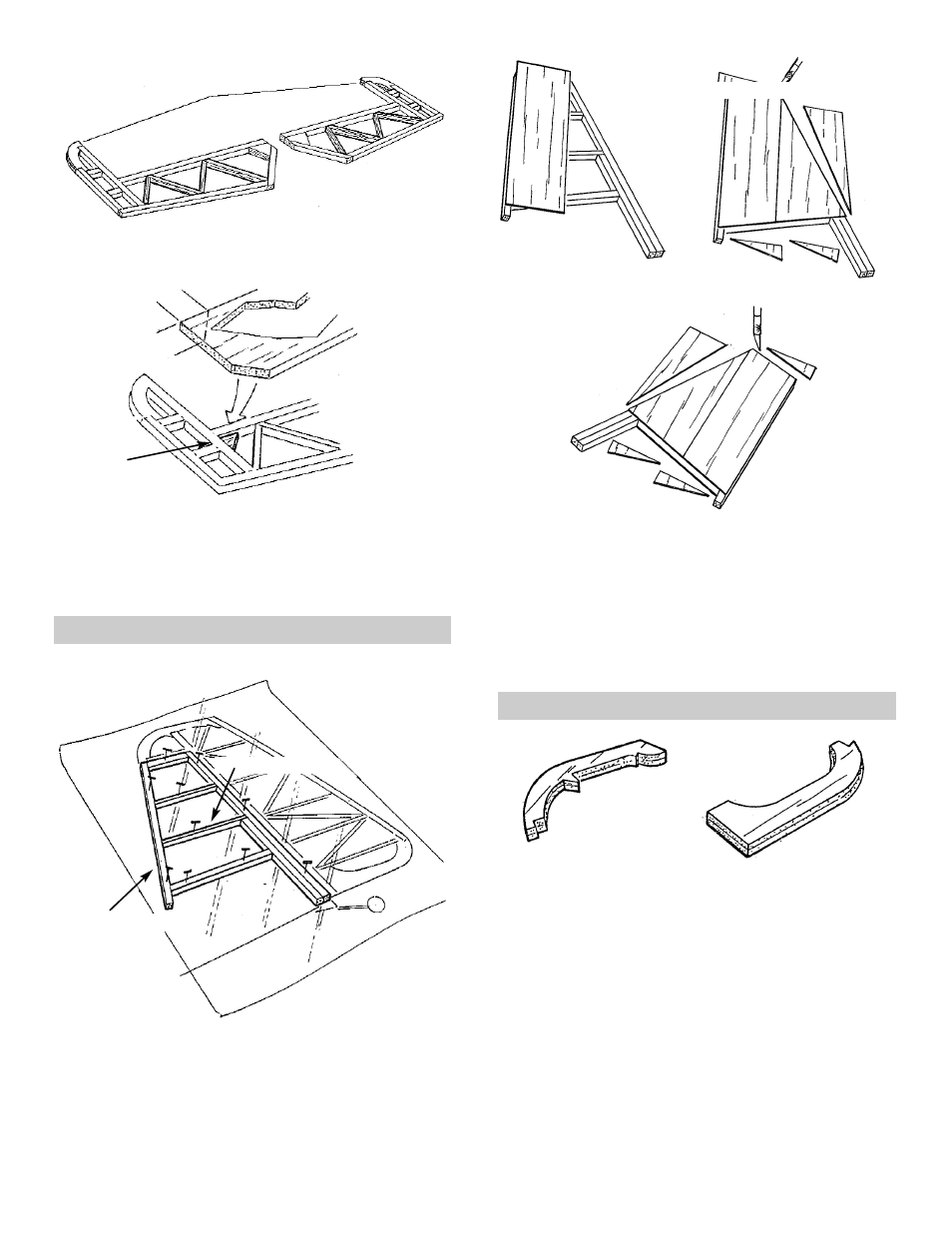

VERTICAL FIN
RUDDER
1. ‡ After covering the fin portion of the FUSE-
LAGE PLAN with waxed paper, begin trim-
ming, gluing, and pinning the 1/4 x 5/16 balsa
PERIMETER STICKS in place.
‡ Next, trim and glue the 1/8 x 1/4 TRUSS
STICK pieces in place.
2. ‡ Trim the SHEETING to fit the fin framework.
When satisfied with the fit, glue in place.
‡ Turn the fin over and sheet the other side of the
fin structure.
NOTE: When covering the fin, DO NOT cover posts
and bottom where the structure is to be
glued to the fuse.
5. ‡ Trim and glue the 3/16 x 3/8” TRUSS STICKS.
1. ‡ Laminate the two RUDDER TOPS and RUD-
DER BOTTOMS.
8
1/2"
1/2"
1/4 x 5/16" BALSA
RUDDER BOTTOM
RUDDER TOP
ELEVATOR
1/8 x 1/4" BALSA
GUSSET
