Carl Goldberg GBGA0059 - Manual (Page 5)

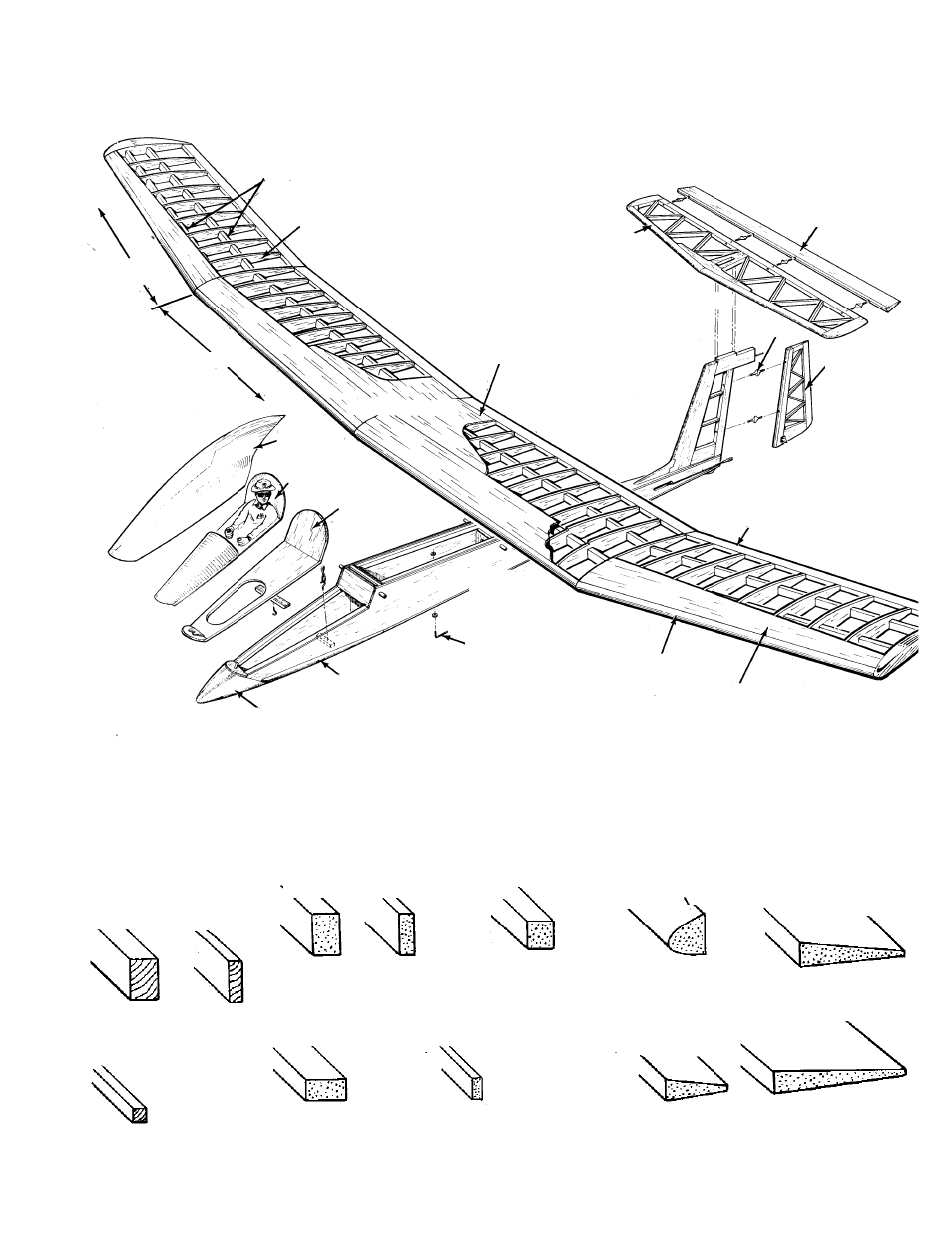

END VIEW OF STRIP WOOD PARTS
BASSWOOD BALSA
FRONT SPAR
1/4 x 13/32”
REAR SPAR
1/8 x 3/8”
FRONT SPAR
1/4 x 3/8”
REAR SPAR
1/8 x 3/8”
1/4” SQUARE
17-7/8”
INBOARD L.E. = 20-3/4” LONG
OUTBOARD L.E. = 17-5/8” LONG
ELEVATOR L.E.
3/16 x 3/8”
ELEVATOR
TRUSS
5/64 x 3/16”
RUDDER T.E.
8-1/4” LONG
ELEVATOR.
20-3/4” LONG
INBOARD T.E. = 20-3/4” LONG
OUTBOARD T.E. = 17-1/2” LONG
HATCH RAIL
1/8” SQ.
INBOARD WING SPAR
OUTBOARD WING SPAR WING LEADING
EDE (L.E.) WING TRAILING
EDGE (T.E.)
PUSHROD
5
AIRPLANE STRUCTURE
NOSE BLOCK
CHIN BLOCK
TOW HOOK
WING ASSEMBLY
COCKPIT DETAIL
CANOPY
OUTBOARD
PANEL
RUDDER
HINGES
HORIZONTAL STABILIZER
TAIL ASSEMBLY
ELEVATOR
CENTER SHEETING
FUSELAGE
LEADING EDGE
LEADING EDGE SHEETING
TRAILING EDGE
COCKPIT PLATFORM
INBOARD PANEL
MAIN & REAR SPAR
RIBS
