Carl Goldberg GBGA0059 - Manual (Page 15)

15

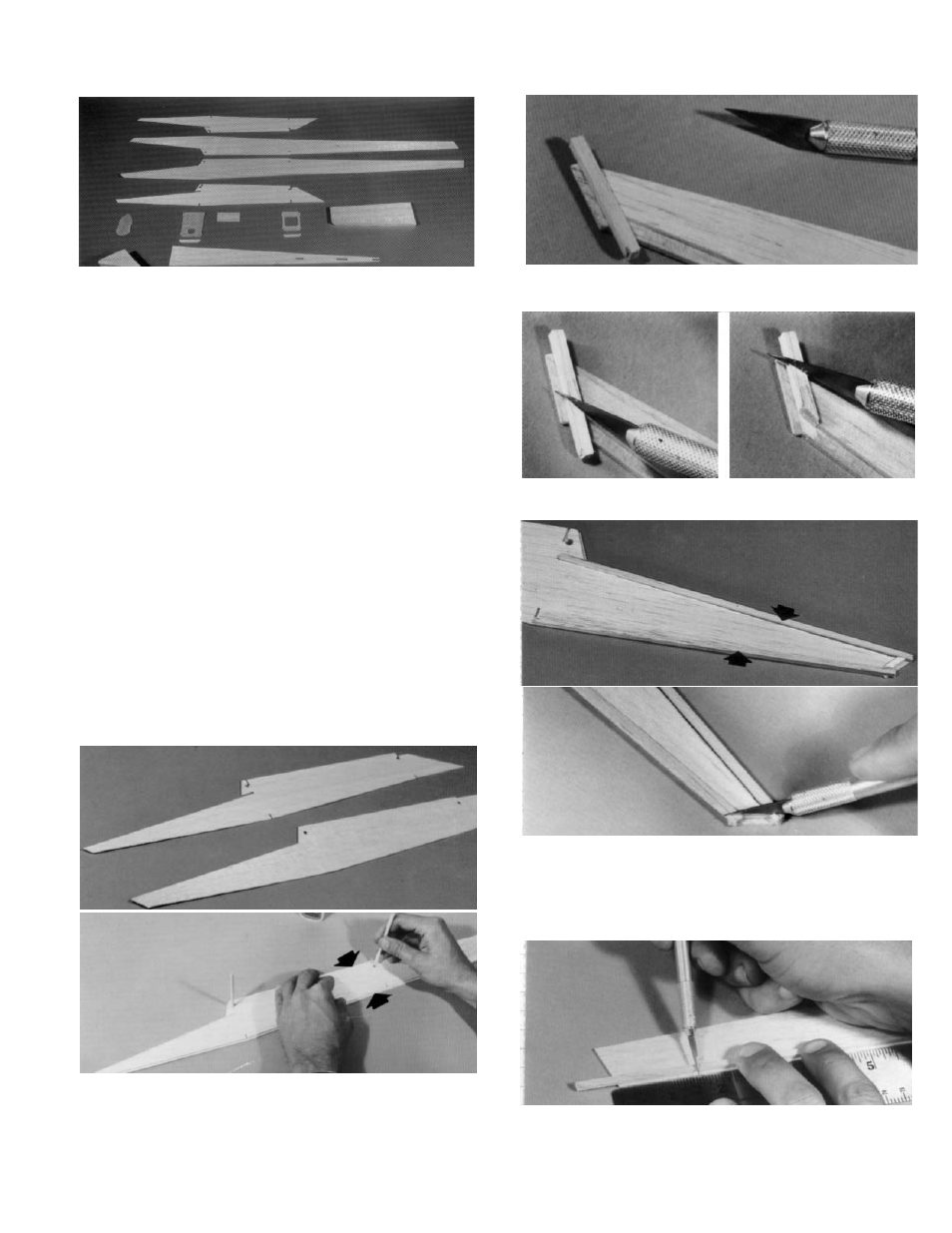

FUSELAGE CONSTRUCTION
1. ‡ Collect the following items:
(2) D/C SHT. 5901 FUSELAGE SIDE PT. #3401
(1) BALSA CHIN BLOCK PT. #4568
(1) BALSA NOSE BLOCK PT. #4569
(5) 1/8” SQ. x 36” BALSA STICK PT. #4705
(1) D/C SHEET 5902
Contains:Fuse top and Fuse bottom PT. #3402
(2) D/C SHEET 5903
Contains: Fuse Doubler PT. #3403
(1) D/C SHEET 5905
Contains Formers & fuse bottom PT. #3405
(2) D/C SHEET 4014 PT. #3614
(1) D/C SHEET 5907 FORMERS PT. #3407
(1) 1/8 x1/4 BALSA STICK PT. #4561
(2) SCREW EYES PT. #1194
(1) 1/8 x7/8" DOWEL PT. #1736
(2) 3/16 x 3-7/16 DOWEL PT. #1748
(1) HATCH HOLD DOWN PT. #4570
(1) TOWHOOK PT. #5811
(1) CANOPY PT. #1569
(1) COCKPIT INSERT PT. #1570
‡ Carefully remove the die-cut pieces and lightly
sand any rough edges before beginning
assembly.
3. ‡ Glue an 1/8" sq. balsa stick to the front of the
fuse side assembly.
2. ‡ Place the fuse side and fuse side doubler
together, using the 3/16" diameter dowel to
align the two pieces correctly.
‡ When satisfied with the fit, glue the pieces
together.
‡ Trim the stick flush with the edges of the dou-
bler, as shown above.
5. ‡ Measure 1-1/2" back from the read end of the
fuse side and make a mark. Trim the 1/8"
square balsa stick to this point and then glue
the stick in place.
4. ‡ Again using 1/8" sq. balsa sticks, fit and glue to
the top and bottom of the fuselage side. Do
NOT GLUE at rear of fuse.
‡ Trim the 1/8" balsa pieces flush with the fuse
front.
