26
5. ‡ Referring to the plan, mark the location of the
elevator control horn on the elevator.

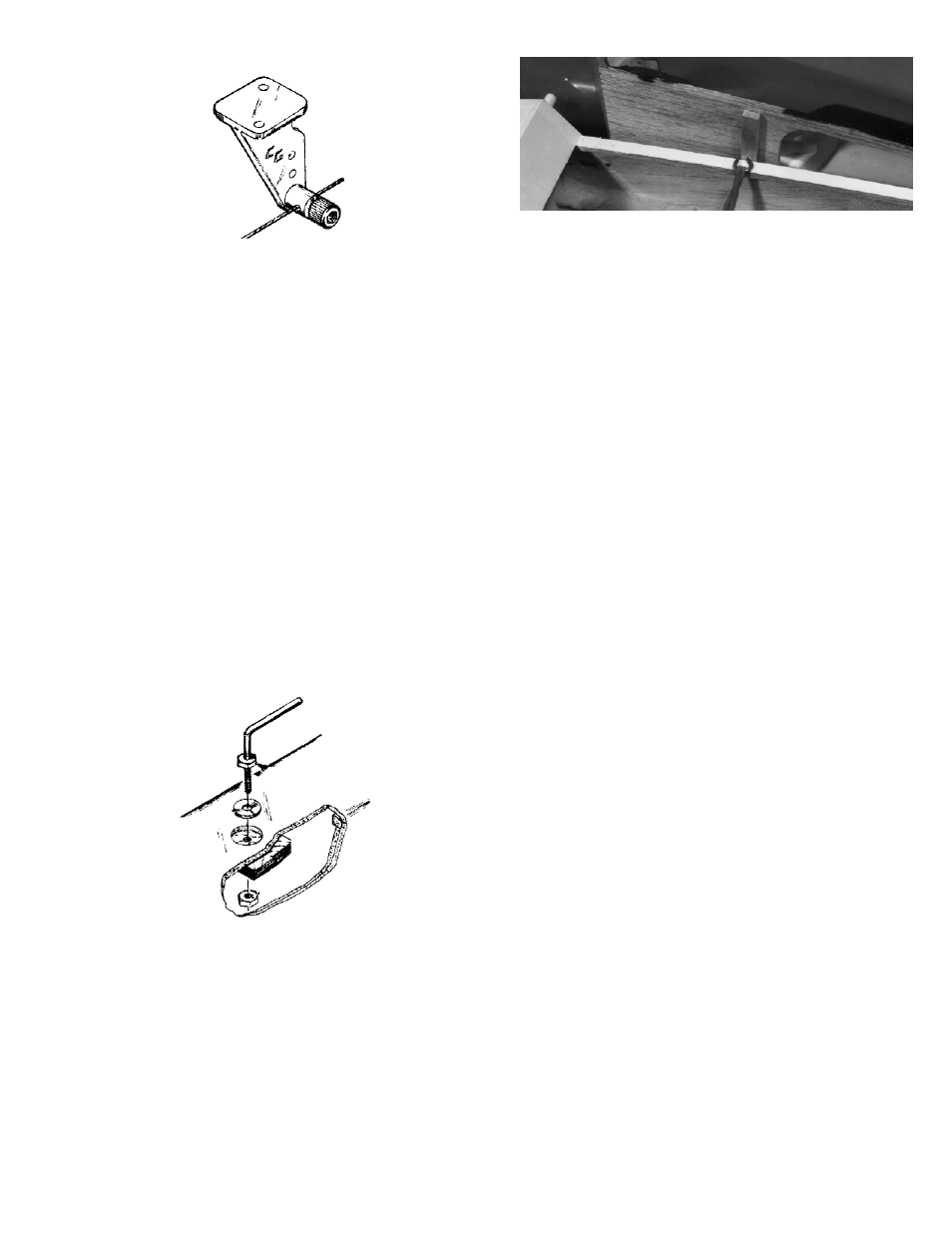

6. ‡ Snap a pushrod connector body on the last
hole of the elevator control horn.
‡ Slide the stranded brass cable through the
nylon guide tube and through the hole in the
connector body, as shown above.
7. ‡ Tighten the set screw with the cable extending
through about 1/4" past the connector body.
8. ‡ Return the control horn to the previously
marked spot on the elevator and screw in
place.
‡ Grasp the servo end of the cable and work it
back and forth, making sure that the movement
is smooth.
INSTALLATION OF THE TOW HOOK &
CANOPY HOLD-DOWN
1. ‡ Install the tow hook, as shown above.
TOW HOOK
4-40 HEX NUT
#4 WASHER
2. ‡ Glue a brass screweye mount to the canopy
platform and fuselage bottom.
‡ Install the screweyes and rubber band for
canopy hold-down.
