20

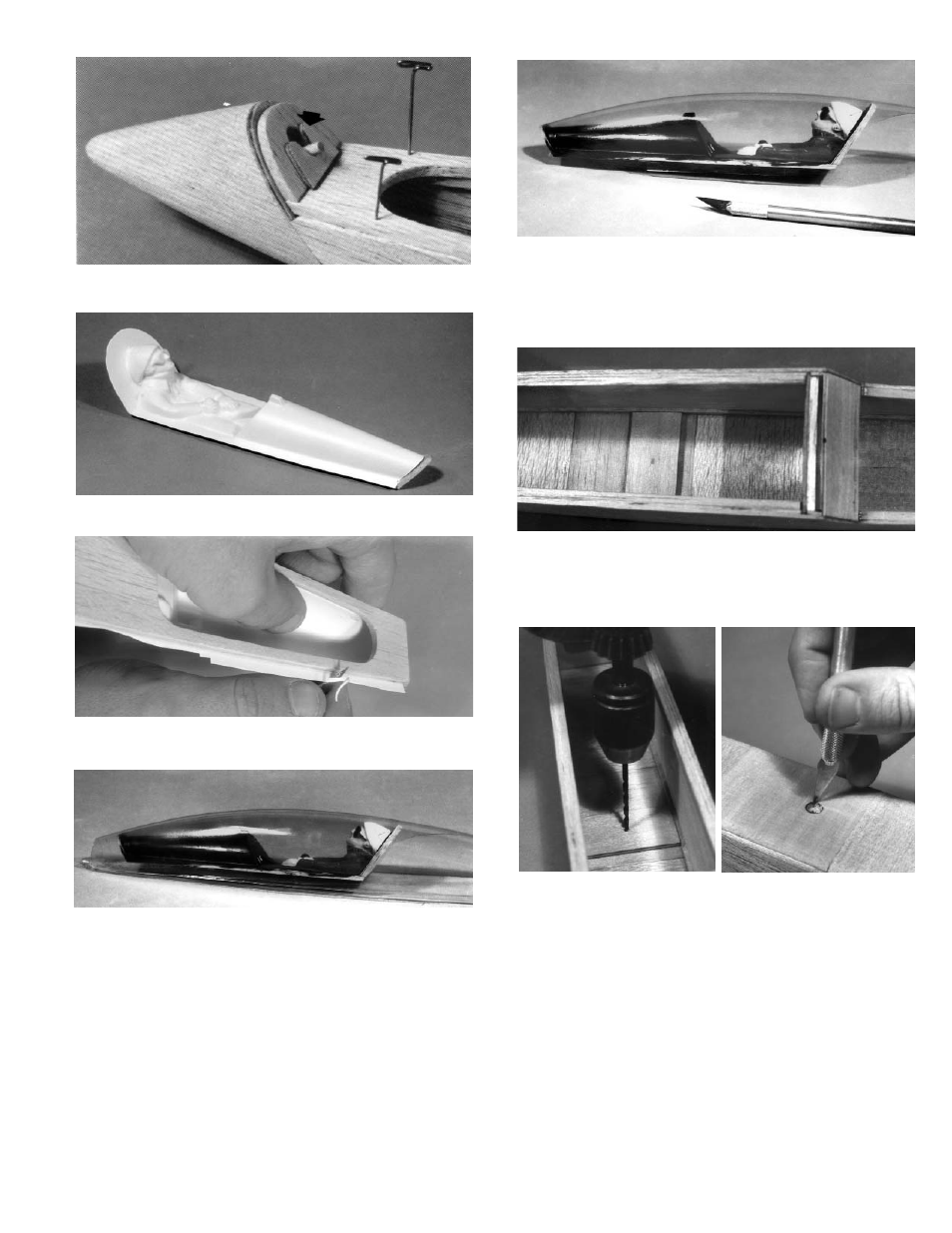

29. ‡ Position the 1/16" D/C plywood yoke snugly
under the hatch pin and glue in place.
30 ‡ Trim the plastic cockpit detail to fit onto the plat-
form.
‡ Glue the plastic detail in place and trim any
excess flush with the platform edges.
31. ‡ Apply the instrument panel decal (see decal
instructions in Final Assembly section.)
‡ Fit the canopy in place, rough trimming it to
size.
‡ Making sure the platform remains flat, glue the
canopy to the platform.
‡ Trim excess plastic flush with the platform bot-
tom and front. Trial fit the back of the canopy
onto the wing. The final fitting will occur when
the wing is mounted on the fuse.
32. ‡ Glue the two 1/16" D/C plywood tow hook
mounting plates together.
‡ Fit the laminated mount in place, as shown on
the plan.
33. ‡ With the punch marks facing up, drill a 3/32"
diameter hole through the plywood mount and
the balsa fuse bottom.
‡ Trace the tow hook washer on the fuse bottom
and cut in the washer clearance, as shown. Be
sure to go through the balsa and down to the
plywood layer.
