ABOUT THE WOOD IN THE KIT
We strive to supply good quality materials in your kit.
Wood parts are inspected with regard to the function
they will serve. If an imperfection is spotted in a scrap
corner of a die-cut sheet and doesn't affect actual parts,
the sheet is considered acceptable. Also, internal
stresses in wood are relieved as it is cut into parts.
These relieved stresses may cause some parts to bow.
Bows in wood parts (such as leading edges) readily
straighten out as they are glued into a structural unit
WOOD PARTS
Be careful when removing parts (such as fuselage
sides) from the die-cut sheets. Long parts are fragile
until Super Jeted into a structural unit. If necessary, use
a razor knife or razor saw to assist in the removal of
parts from the sheet. Sometimes a little trimming and
sanding can improve parts, where desired. Save scrap
until the model is completed, in case a part is missing
or damaged. Also, scrap is used in some building steps.
4

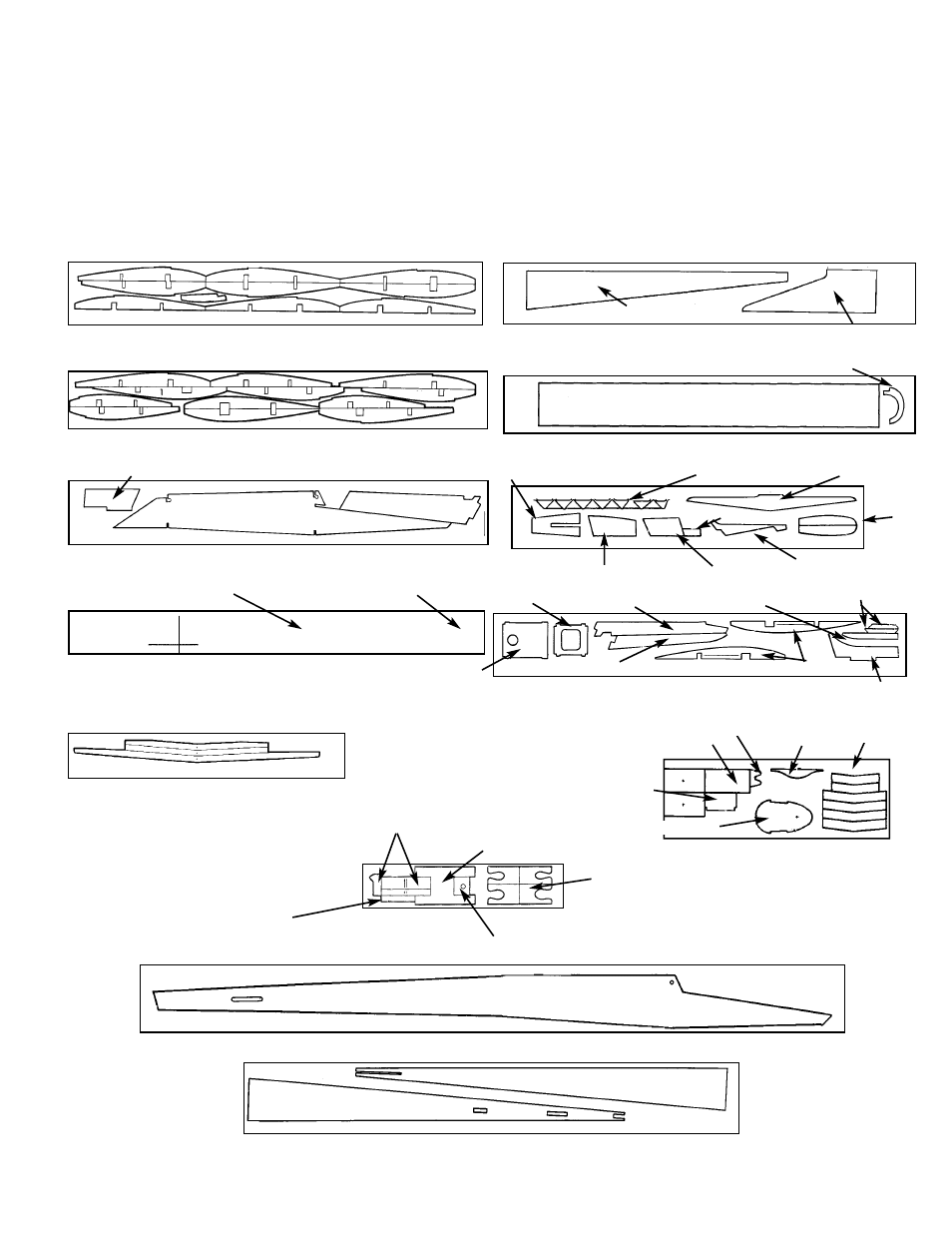

SHEET 4001 WING RIBS 5/64 x 2-7/8 x 24" 2 REQ’D.
SHEET 4002 WING RIBS 5/64 x 2-7/8 x 24"” 2 REQ’D.
D/CSHEET 5902 5/64 x 2-7/8 x24" 2 REQ’D.
D/C SHT. 4014 1/8x2-1/4x13" PLY 2 REQ'D
D/C SHT. 4012 1/16 x 3 x 24" 2 REQ'D.
D/C SHT. 4013 1/16 x 3 x 24" 2 REQ'D/
D/C SHT. 4009 1/8 x 2-3/8x17" PLY 1 REQ'D.
D/C SHT. 5903 5/64 x 3 x 24" 2 REQ'D.
D/C SHT. 590 5 1/8 x 2-1/2 x 24" 1 REQ'D.
D/C SHT. 5906 5/16 x 2-1/2 x 24" 1 REQ'D.
D/C SHT. 5907 1/16 x 3 x 9-7/8" 1 REQ'D.
D/C SHT. 5904 3/16 x2-1/2 x 18" 1 REQ'D.
D/C SHT. 5901 5/64 x 3 x36" ” 2 REQ’D.
WING POLYHEDRAL
JOINERS
TAIL SKID
YOKE
BALLAST BULKHEAD
FIN PART #1
FIN PART #2
FUSE SIDE DOUBLER
FUSE BOTTOM SHEETING
COCKPIT FRONT FORMER
COCKPIT PLATFORM
COCKPIT REAR FORMER
BEVELING TOOL
WING GAUGE
MOTOR SWITCH MOUNT
JOINER CLAMPS
SERVO MOUNTING RAIL
FUSE SIDE
NOT NEEDED IN THIS KIT
INBOARD PANEL L.E. SHEETING
STAB CENTER PLATFORM
WING/TAIL GUSSETS STAB L.E. JOINER
RUDDER TOP
DORSAL FIN
STAB TIPS
VERT.FIN BOTTOM RUDDER BOTTOM
FRONT BULKHEAD
REAR BULKKHEAD FIN PART #3
FIN PART #5
POWER POD RIB #1
BULKHEAD DOUBLERS FIN PART #6
FIN PART #4
FUSE TOP
FUSE BOTTOM
FRONT FORMER
CANOPY REST
WING CENTER JOINERS
OUTBOARD PANEL L.E. SHEETING
MID-CENTER SHEETING
