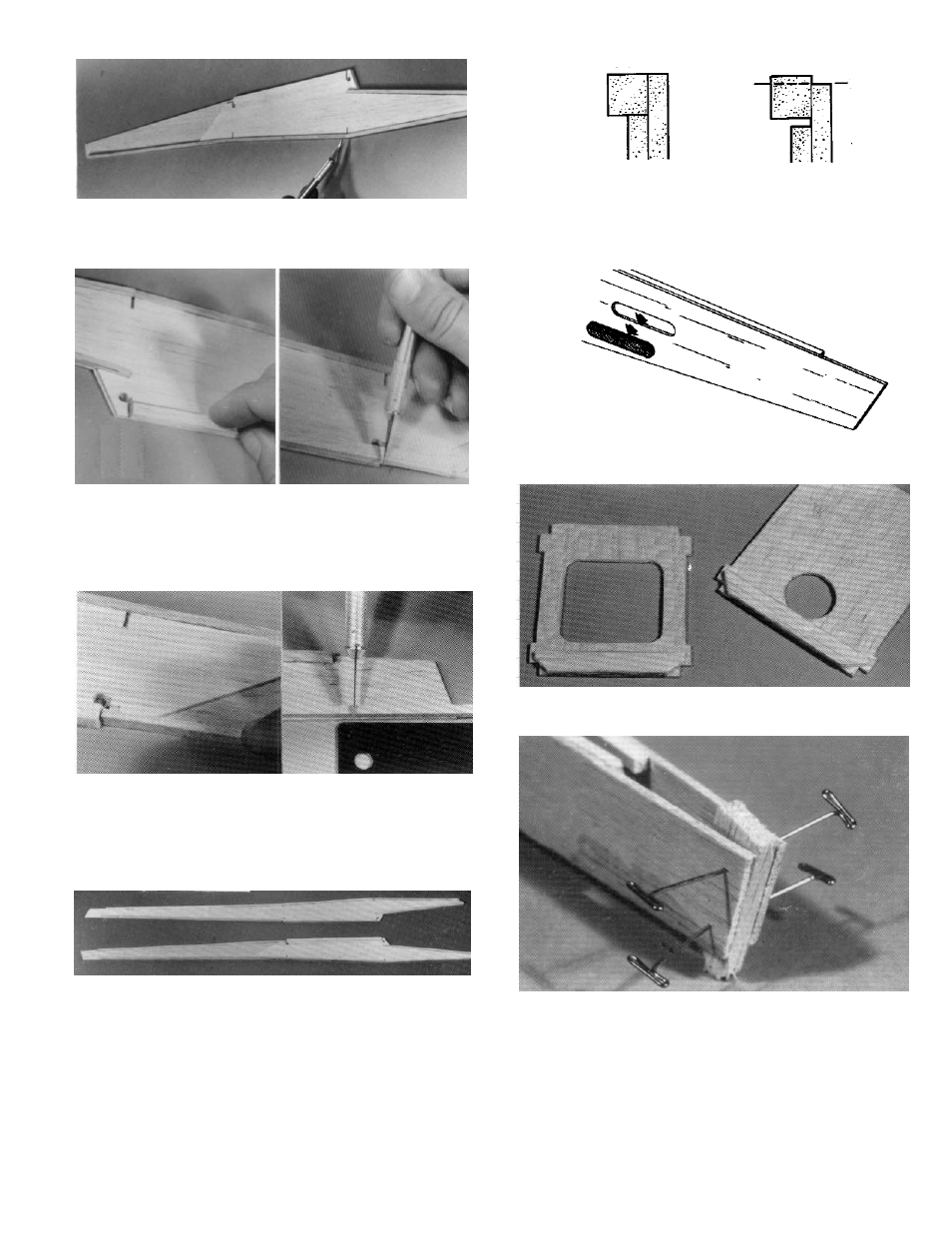

6. ‡ From the wood parts bag, take the 1/8 x 1/4"
balsa wing rest and place it flush with the front
bulkhead notch, as shown above.
‡ Making sure it is flush with the top of the fuse
side, glue in place.
7. ‡ Using a piece of 1/8" sq. balsa, butt the end
into the wing rest.
‡ Measuring 1-1/2" in from the end of the fuse
side, trim the 1/8" balsa stick and glue in place.
8. ‡ Repeat the above steps to contruct a second
fuse side. Be sure you build a right and a
left side.
NOTE: Before moving on, make sure all joints are
flush and the 1/8" strips are flush with the
edges of the fuse side, all around. Sand if
necessary.
9. ‡ Take the left fuse side only and punch out the
exit hole, as shown.
10. ‡ Glue the D/C bulkhead doubler to the bulkhead.
11. ‡ With the fuse sides together, doublers to the
inside, pin a piece of 3/16" balsa scrap between
the sides at the back end of the fuse.
16
‡ Glue the cut stick in place.
