InpuT sHafT
Refer to Figure 19
disassembly
1 . Remove all external items previously dis-
cussed in their recommended order .
2 . Remove the retaining ring (66) and dis-
card .
3 . Remove the lip seal (65) and discard .
4 . Remove the washer (64) .
5 . Remove the pump shaft (61) with pressed
on bearing (62), and the helical spring
(67) .
NOTE: Remove the bearing from pump shaft
only if worn or damaged.
6 . Remove the wire ring retainer (63) and
discard . Remove the bearing (62) from the
pump shaft (61) .
Inspection
1 . Inspect the bearing and input shaft for wear
or damage . Inspect the splines on the shaft
for possible damage . Replace if neces-
sary .

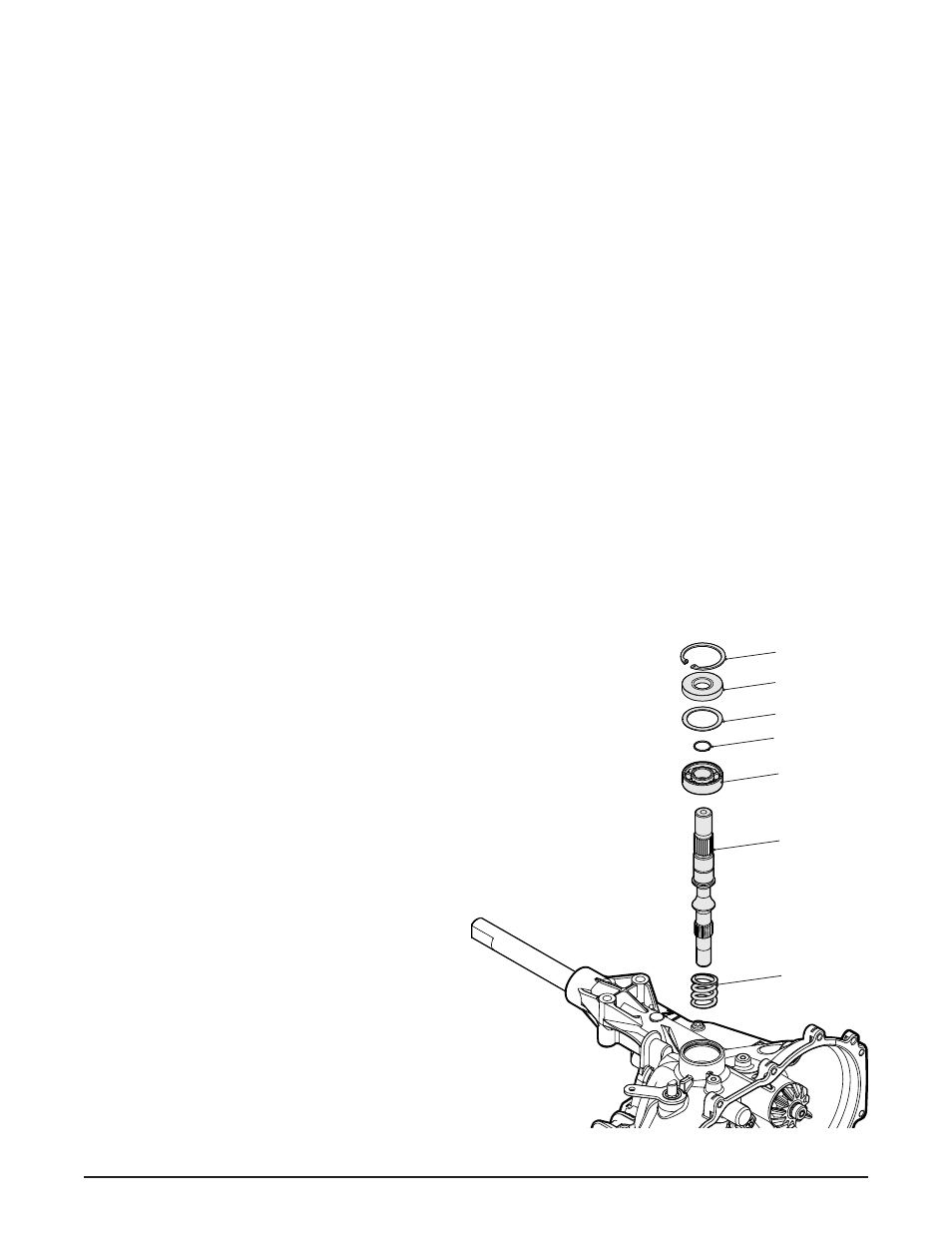

figure 19, Input shaft
assembly
1 . Reassemble all parts in the reverse order
of disassembly .
2 . Install the bearing (62), a new retaining wire
(63), and spring (67) onto the input shaft .
NOTE: Apply a light coating of grease to new
seal (65) before installing. Refer to
“Seal Kit” in the Items List on page
37.
3 . Install the input shaft assembly into the main
housing .
4 . Install the washer (64), seal (65) and retain-
ing ring (66) into the main housing .
66
65
64
63
62
61
67
