T2 ® 13

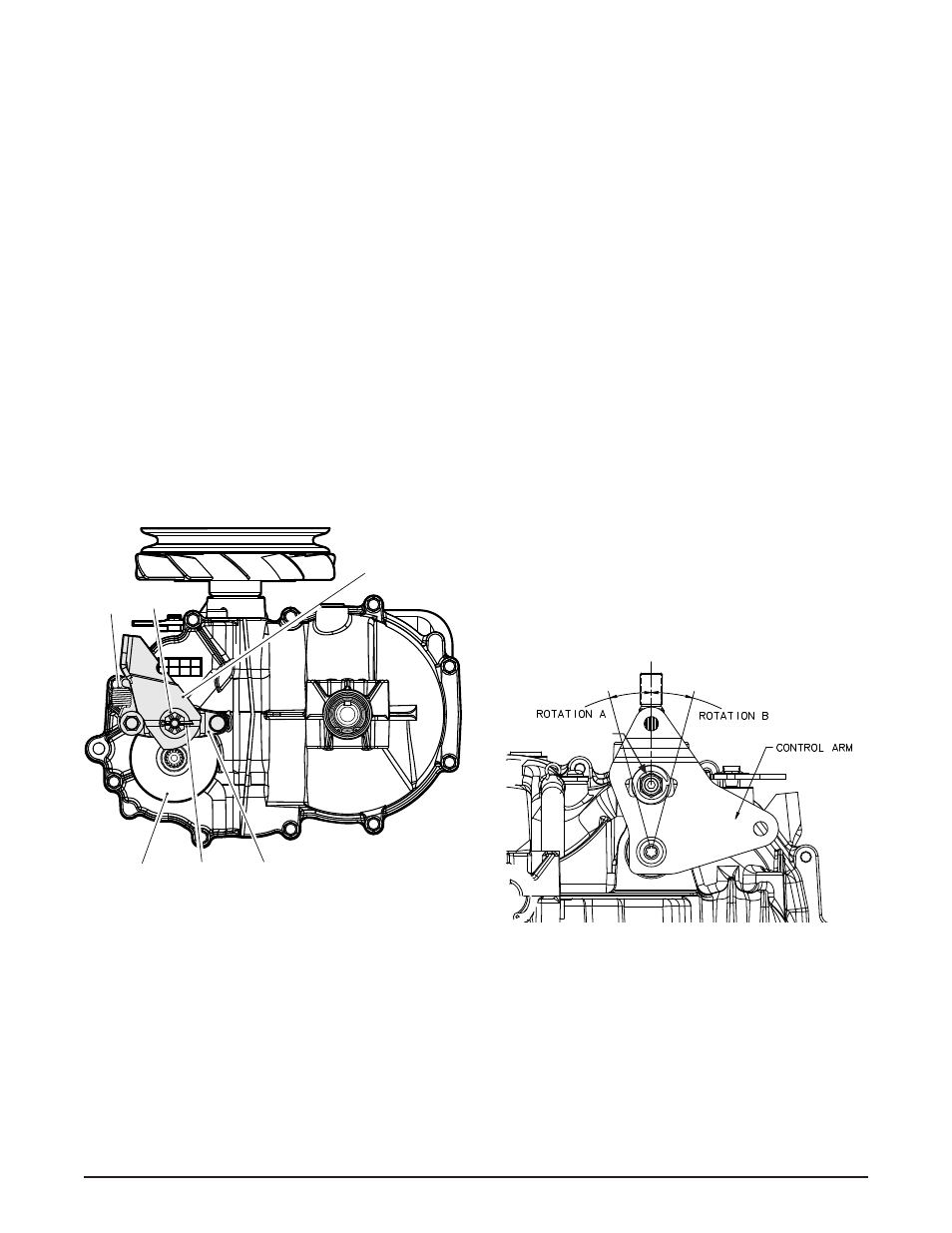

figure 6, friction pack adjustment
brake seTTInG
1 . Remove the brake arm bias spring(134),
and then the cotter pin (133) securing the
brake castle nut (132) .
2. Insert a 0.020” feeler gage between the
brake rotor (121) and top brake puck, and
then set the brake by finger tightening or
loosening the castle nut .
3 . Install a new cotter pin to secure the castle
nut, and then install the brake arm bias
spring .
frICTIOn paCk adjusTmenT
The friction pack dampens or holds the operator
control lever in its desired position .
Adjustment for the amount of drag or holding
force can be made by turning the friction pack
nut in or out .
Adjustments should be made in no more than
1/4 turn increments .
Over-tightening will result in difficulty or inability
of the operator to move the control lever .
NOTE: The factory setting for the friction
pack is tightening of the friction pack
nut to 100 in-lbs (11 Nm) torque. The
friction pack nut is then backed off
per the vehicle manufacturer’s
specifications.
brake maInTenanCe
figure 5, brake setting
(121) (124)
(130)
(134)
(133)
(132)
Friction Pack Nut
