T2 ® 17
Refer to Figure 8
PULLEY AND FAN CONFIGURATION
1 . Remove the locknut (152), and detach the
fan and pulley assembly from the input
shaft .
2 . Separate the assembly by removing the
screws (153), fan (150) and the pulley
(151) .
I nspection
1 . Check all components for wear or damage .
Replace if necessary .
assembly
1 . Reassemble all parts in the reverse order
of disassembly .
2 . When tightening the fasteners, refer to the
table on page 15 for the required torque
values .
NOTE: As a general rule, use the low end of
the torque specification on fasteners
when reassembling the unit.
Refer to Figure 9
FAN AND PULLEY CONFIGURATION
1 . Remove the locknut (152) and washer
(153) .
2 . Remove the fan (150) and the pulley
(151) .
I nspection
1 . Check all components for wear or damage .
Replace if necessary .
assembly
1 . Reassemble all parts in the reverse order
of disassembly .
2 . When tightening the fasteners, refer to the
table on page 15 for the required torque
values .

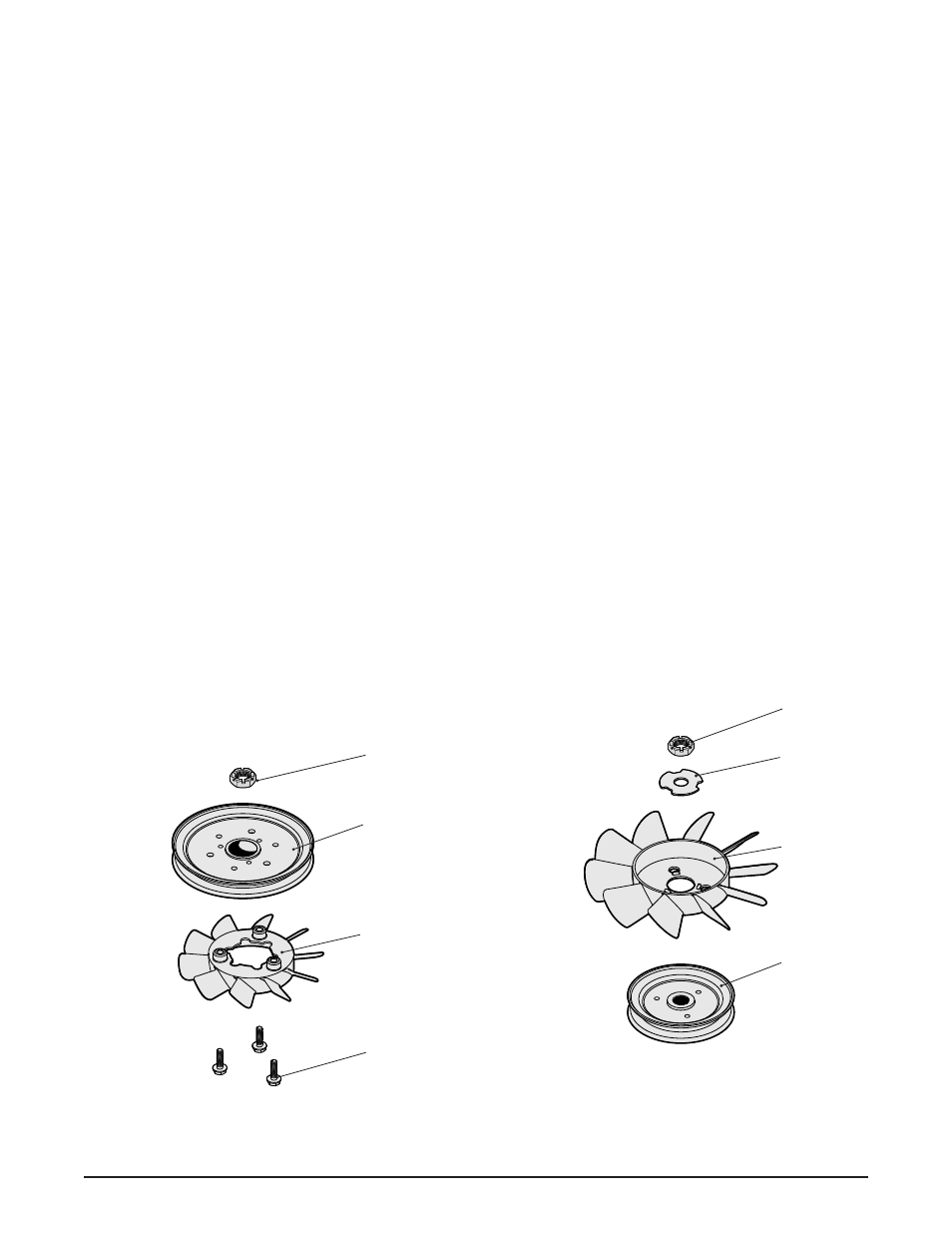

Figure 8, Fan on bottom configuration Figure 9, Fan on top configuration
fan and pulley
152
153
150
151
152
151
150
153
