Cub Cadet RZT-S Zero Electric - Manual (Page 38)

RZT-S Zero
34
Rebuilding the drop axles
1. Remove the drop axle by following the procedures
described in the previous section of this chapter.
2. Remove the patch bolt and washer that holds the
hub to the axle shaft using a 9/16” wrench.
See Figure 3.28.
3. Remove the brake and rotor assembly by following
the procedures described in the brake puck/rotor
replacement section of this chapter.
4. Remove the push nut that secures the by-pass lever
to the by-pass fork. See Figure 3.29.
NOTE: If the by-pass lever or fork are not being
replaced, the push nut can be left in place.
5. Remove the by-pass lever.
NOTE: The by-pass lever has a very tight fit on the
by-pass fork.
6. Remove the eleven housing screws using a 3/8”
wrench.
7. Lift the upper housing off of the gearbox.
8. Remove the drive axle assembly. See Figure 3.30.

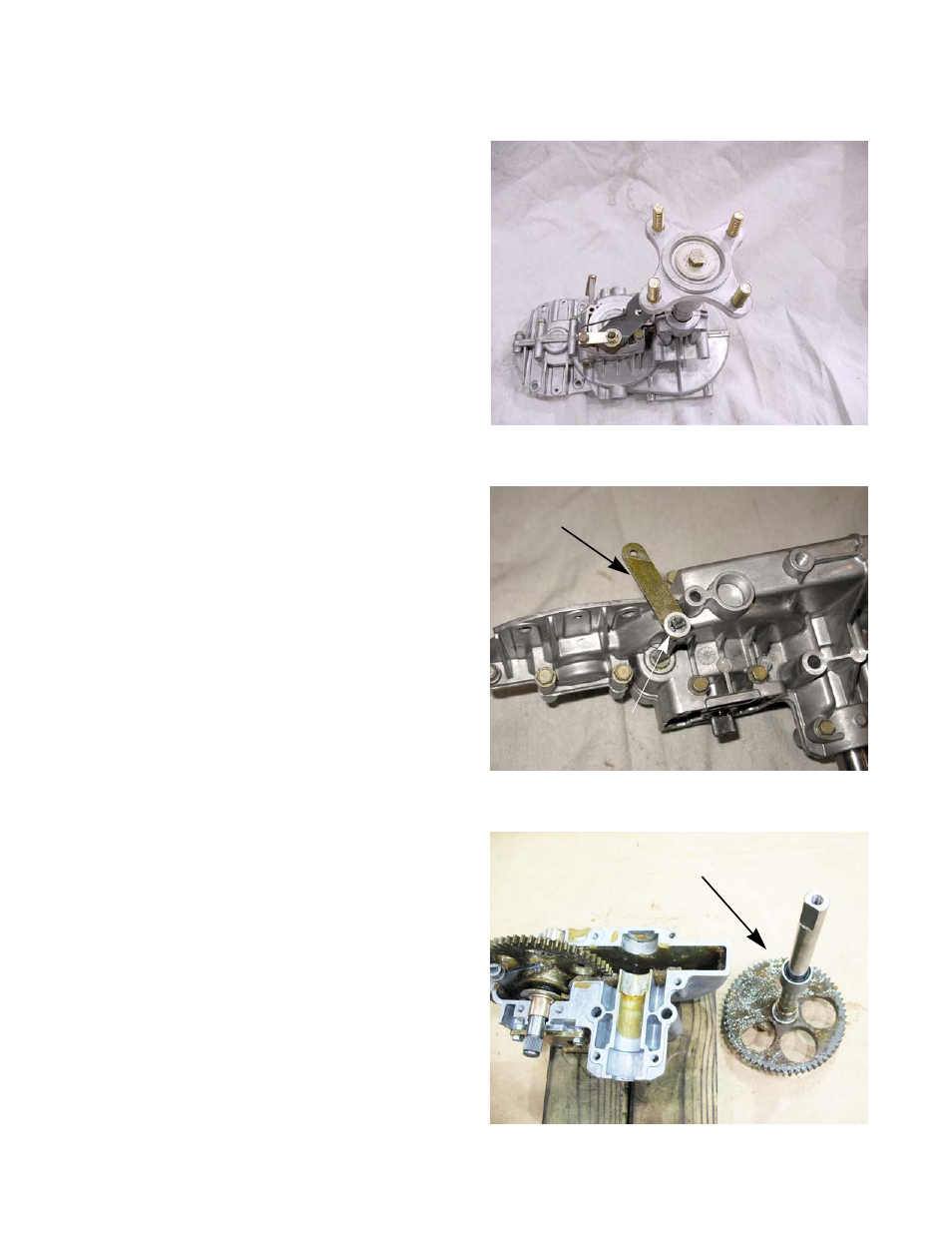

Figure 3.28
Figure 3.29
By-pass lever
push nut
Figure 3.30
Drive axle
