Chapter 5: Local Management
5-4 2H23-50R/2H33-37R User’s Guide
5.3.1 Console Cable Connection
Use the Console Cable Kit provided with the 2H23-50R or 2H33-37R to
attach the management terminal to the 2H23-50R or 2H33-37R COM
port as shown in
Figure 5-1 .
Connect an IBM PC or compatible device, running the VT terminal
emulation, to the 2H23-50R or 2H33-37R as follows:
1. Connect the RJ45 connector at one end of the cable (supplied in the
kit) to the COM port on the 2H23-50R or 2H33-37R.
2. Plug the RJ45 connector at the other end of the cable into the
RJ45-to-DB9 adapter (supplied in the kit).
3. Connect the RJ45-to-DB9 adapter to the communications port on
the PC.

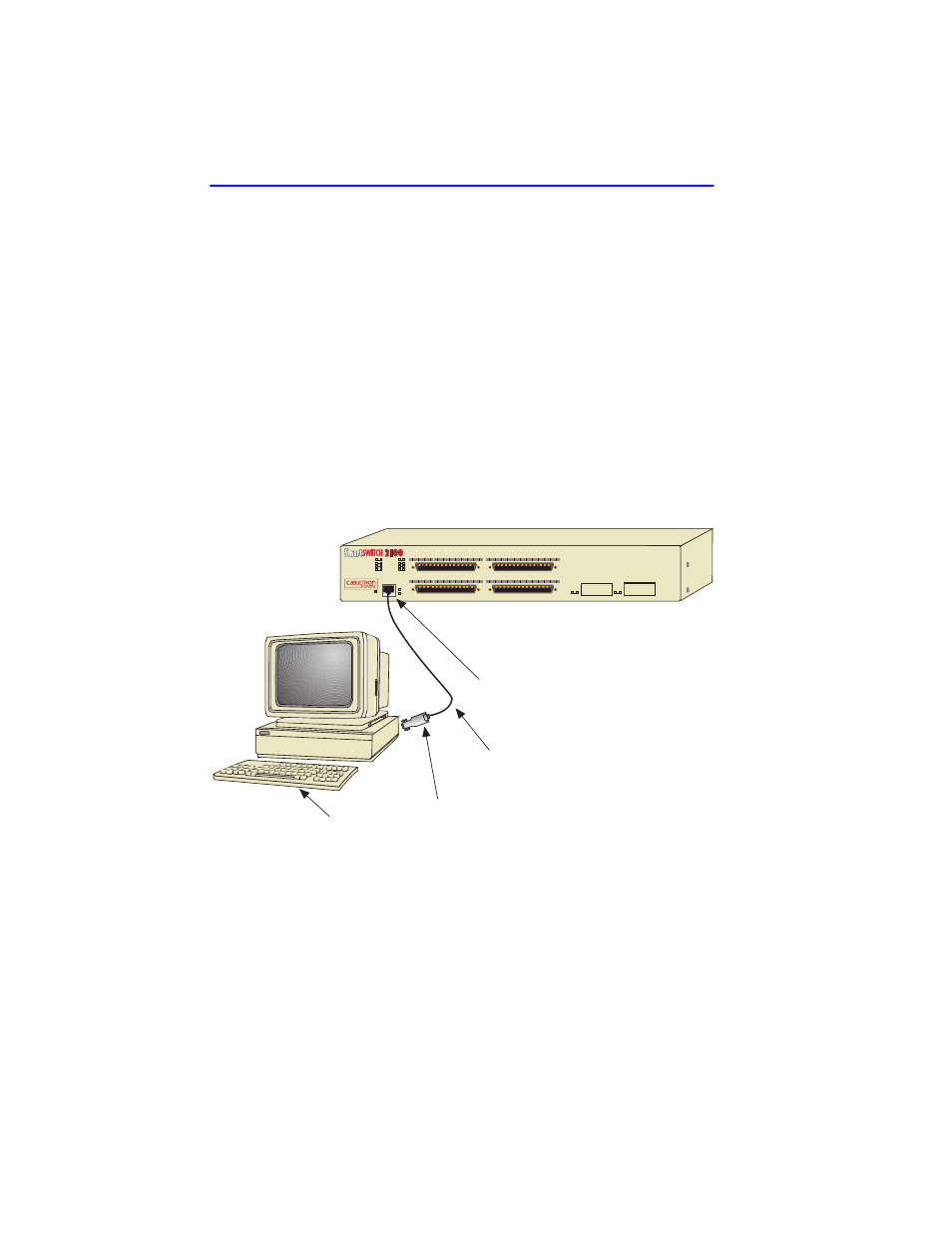

Figure 5-1 Management Terminal Connection
RJ45 COM Port
RJ45-to-DB9
PC Adapter
UTP Cable
with RJ45 Connectors
PC
6 5 CONN 1
CONN 3 CONN 4
CONN 2
22861-50
2H23-50R
COM
PWR
CPU
RESE
10 100
CONN 4
CONN 3
CONN 2
CONN 1 CONN 4
CONN 3
CONN 2
CONN 1 12 1 12 1
12 1 12 1
