Installing the Device
2H23-50R/2H33-37R User’s Guide 3-5
Installation
Rack mounting the 2H23-50R or 2H33-37R involves the following:
• Attaching the strain-relief bracket
• Rack mounting the device (attaching the mounting brackets and
fastening the device to the rack)
Attaching the Strain-Relief Bracket
Attach the strain-relief bracket to the front of the device as follows:
1. Locate the strain-relief bracket and four 8-32 x 3/8-inch pan-head
screws in the rackmount kit.
2. Attach the strain-relief bracket to the bottom of the device using the
four 8-32 x 3/8-inch pan-head screws (
Figure 3-2 ).

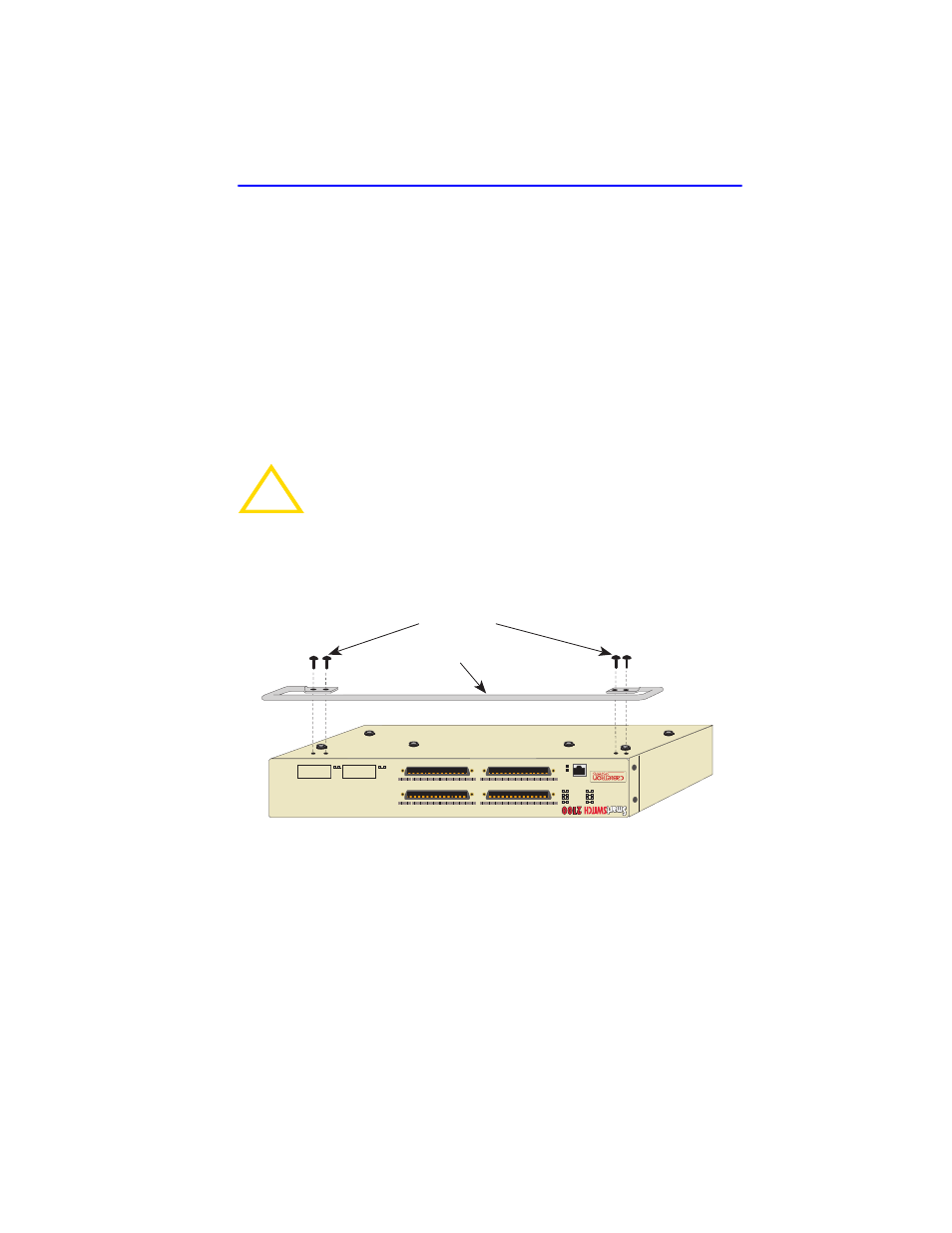

Figure 3-2 Attaching the Strain-Relief Bracket
!
CAUTION
Do not attempt to attach the strain-relief bracket with screws
other than the 8-32 x 3/8-inch screws included with the
2H23-50R. Use of longer screws will damage the unit.
Strain-Relief Bracket
Screws (4)
22862-47
CONN 1
CONN 3 CONN 4
CONN 2
CONN 4
CONN 3 CONN 2
CONN 1
CONN 4
CONN 3 CONN 2
CONN 1
12 1 12 1
12 1 12 1
6 5 2H23-50R COM
PWR CPU RESET
10 100
