Chapter 4: Troubleshooting
4-8 2H23-50R/2H33-37R User’s Guide
4.4 USING THE RESET BUTTON
The RESET button shown in Figure 4-4 resets the 2H23-50R or
2H33-37R processor.

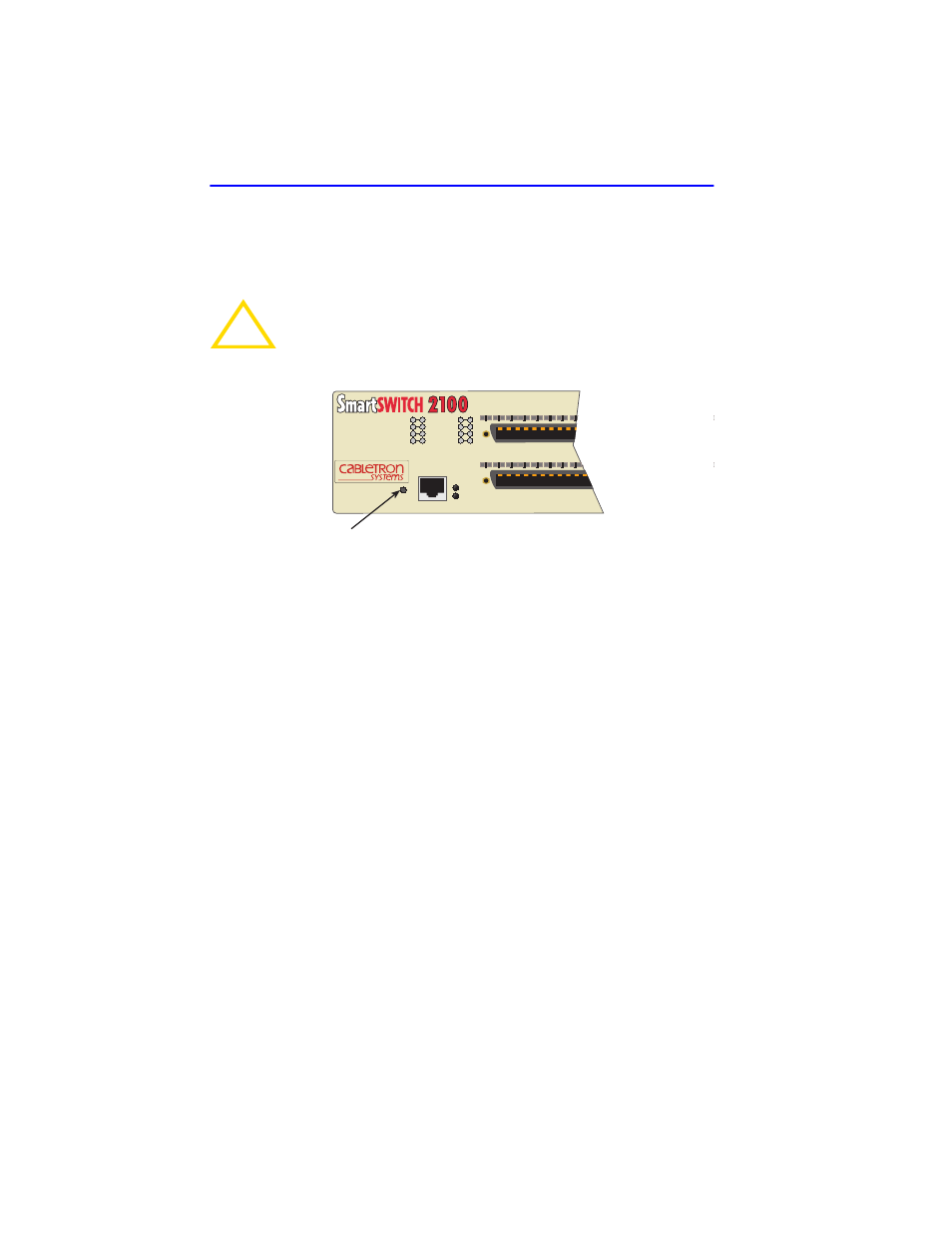

Figure 4-4 RESET Button
To reset the 2H23-50R or 2H33-37R processor, press and release the
RESET button. It takes approximately 45 seconds to complete the reset
process.
!
CAUTION
Pressing the RESET button resets the device, and all current
switching being performed by the device is halted. A network
downtime of up to two minutes will result from this action.
