DVR User Manual
45
5 Search, Playback & Backup
Search configuration includes four submenus: Time Search, Event Search, File Management and Snap.
5.1 Time Search
Step1: Enter into MenuSearch Time search tab. Refer to Fig 5-1:

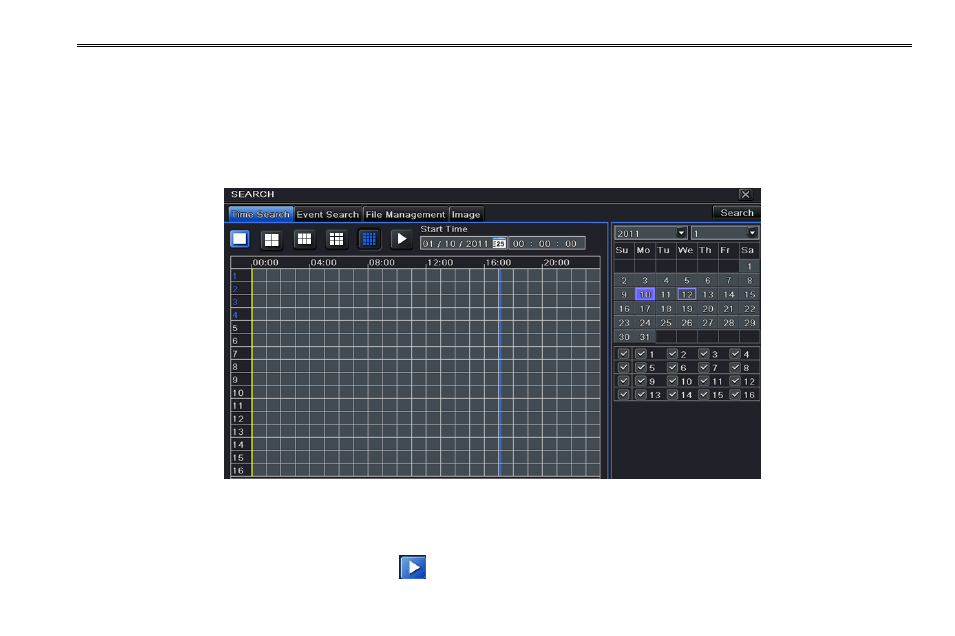

Fig 5-1 Search configuration-time search
Step2: Select date and channels on the right hand side and press “Search” button. A date with highlighted borderline indicates
presence of data.
Step3: Set the start time by clicking a particular grid or by entering the specific value in the start time field.
Step4: Select the channel display mode and click button to play record. Use the playback toolbar to control the playback.
