2.3 Rear Panel Instructions
Note: These Rear Panels are only for reference. Please Take the real object as standard.

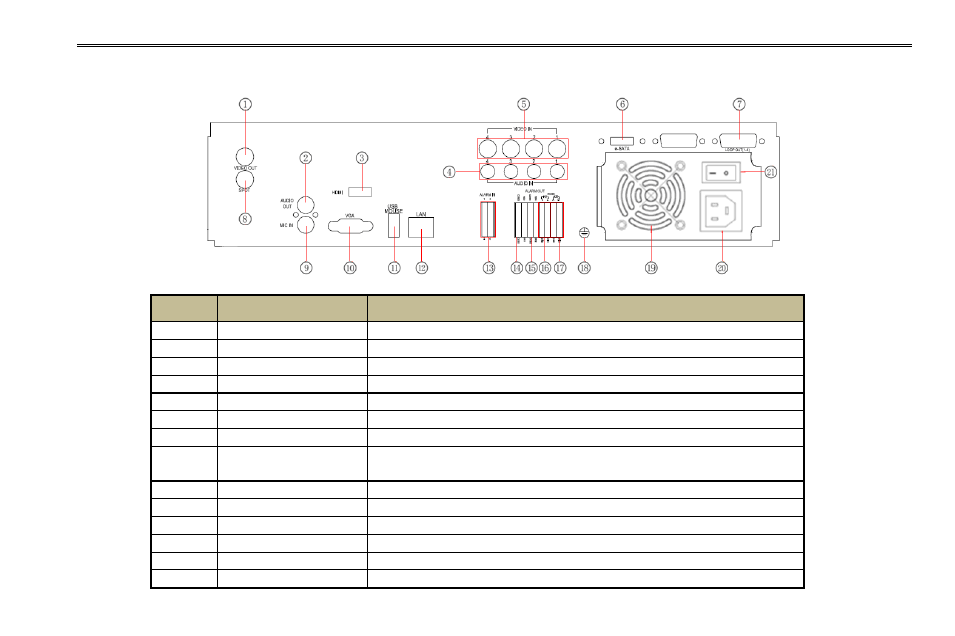

Fig 2.1 Rear Panel for 4-CH
Item
Name
Description
1
Video out
Connect to monitor
2
Audio out
Audio output, connect to the sound box
3
HDMI port
Connect to high-definition display device
4
Audio in
4 CH Audio input
5
Video in
Video input channels from 1-4
6
E-SATA
Connect to HDD for backup(optional)
7
LOOP OUT
For outputting 1-4ch image independently
8
Spot out
Connect to monitor as an AUX output to display channel by
channel. Video would be displayed without OSD.
9
MIC IN
Talk
10
VGA port
VGA output, connect to monitor
11
USB port
connect to USB mouse
12
LAN
Network port
13
ALARM IN
Connect to external sensor1-4
14
ALARM OUT
4ch relay output. Connect to external alarm.
