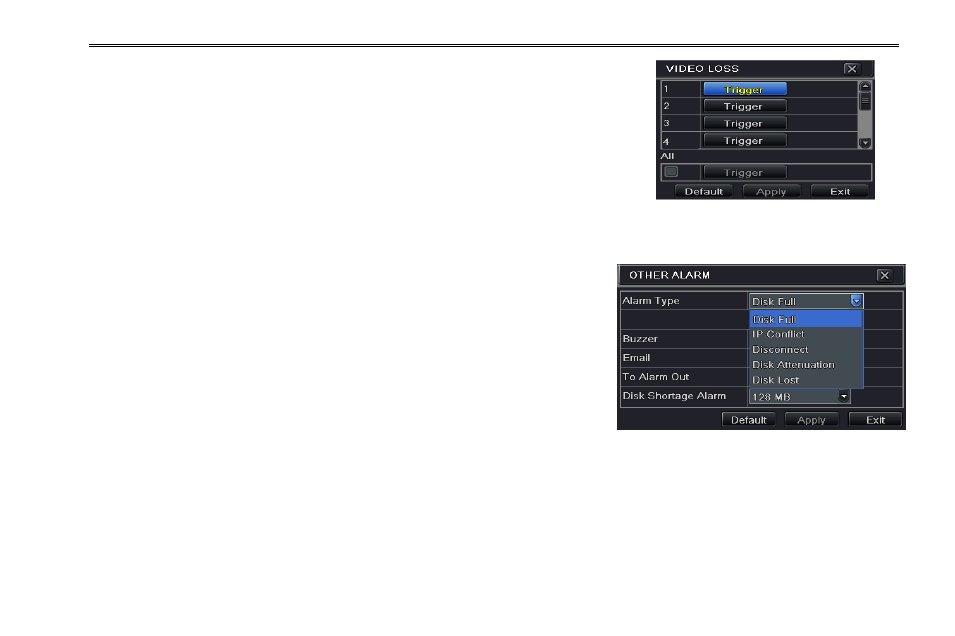

background image

DVR User Manual

33

4.5.3 Video Loss

Step1: Enter into MenuSetupAlarmVideo Loss tab. Refer to Fig 4-26:
Step2: The setup steps of video loss trigger are similar to alarm handling. You can refer
to Chapter 4.5.1 Sensor alarm handling for more details.
Step3:

Click “Apply” button to save the setting; click “Exit” button to exit the current

interface.

Fig 4-26 Video Loss

4.5.4 Other Alarm

This tab gives a choice to configure alarm for Disk Full, IP Conflict, the
Disconnect event, Disk Attenuation or Disk Lost.
Step1: Enter into MenuSetupOther alarm tab. Refer to Fig 4-27:
Step 2: Use the dropdown menu and select the event or the alarm.
Step 3: Check the required trigger options.
If the selected event is “Disk Full”, then use the drop down box for “Disk
Shortage Alarm” to choose a threshold value for remaining HDD space. If the
threshold value is reached, the system will trigger the Disk Full Alarm.
Click “Apply” to save settings; Click “Exit” to exit the current interface

Fig 4-27 Other Alarm


4.5.5 Alarm Out

Alarm out includes three sub menus: alarm out, schedule and buzzer
To setup alarm out:
