DVR User Manual
42

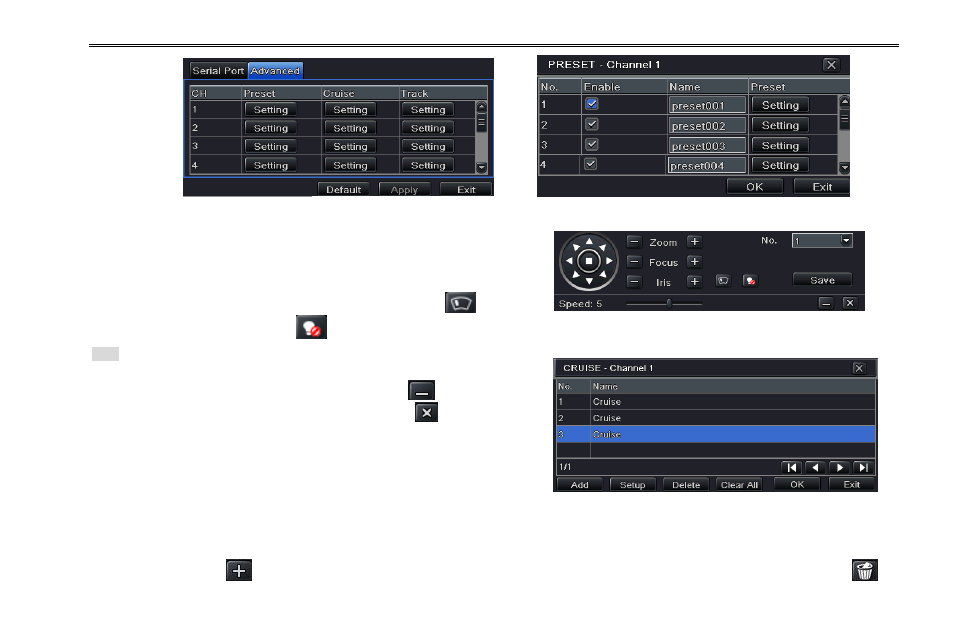

Fig 4-38 P.T.Z Configuration-Advanced Fig 4-39 Advanced-Preset
Step 3: In the preset setting tab, while clicking Setting button, a dialog
will pop-up as Fig 4-40:

User can control the dome by rotating up, down, left, right and
adjust the rotating speed zoom, focus and iris of the dome;
 Select the serial number of the preset point. Click button to
enable the PTZ wiper and click button to enable the PTZ light. Fig 4-40 Preset Setting
Note: PTZ must support wiper and light and these two buttons are just
available when selecting PELCOP or PELCOD.
 Click Save button to save the settings, click icon to hide the
tool bar, right click to view the toolbar again; click icon to exit the
current interface.

In the preset interface, click OK button to save the setting; click
Exit button to exit the current interface.
Step4: In the Advanced tab, while clicking cruise “Setting” button, a
dialog box will pop-up as Fig 4-41: Fig 4-41 Cruise Setting

Click Add button to add cruise line in the list box (max 8 cruise line can be added); select a cruise line and click Setup
button to see a dialog box as Fig 4-42:
 Click Add icon to set the speed and time of preset point; select a preset point and then click Delete icon to
