DVR User Manual

9

Item

Name

Description

15

GND

Grounding

16

P/Z

Connect to Speed Dome, Y is TX+, Z is TX-

17

K/B

Connect to Keyboard, A is TX+, B is TX-

18

GND

Grounding

19

FAN

For cooling the device

20

POWER INPUT

AC 110V-220V

21

POWER SWITCH

Switch on/off

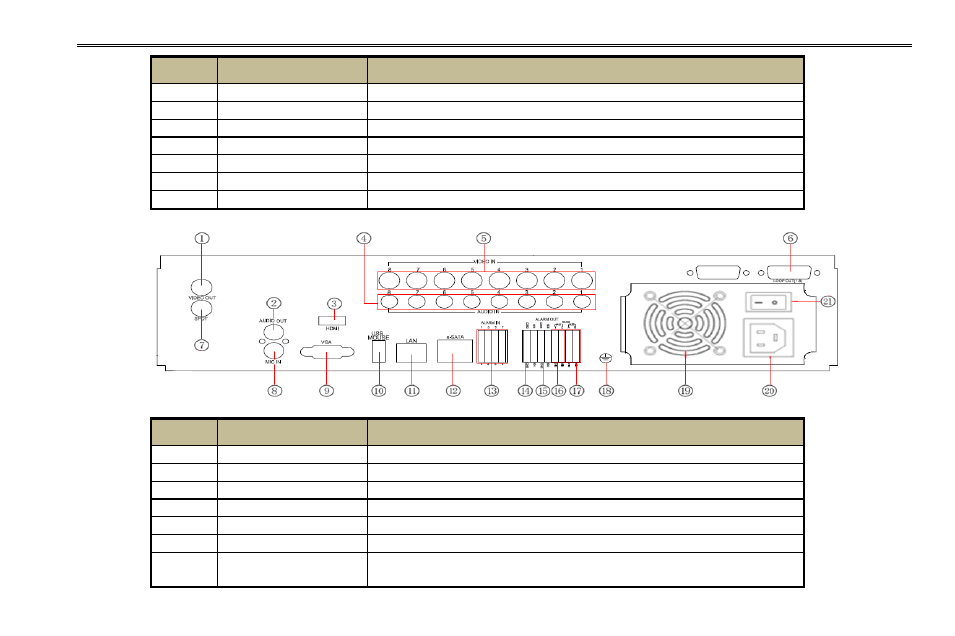

Fig 2.2 Rear Panel for 8-CH

Item

Name

Description

1

Video out

Connect to monitor

2

Audio out

Audio output, connect to the sound box

3

HDMI port

Connect to high-definition display device

4

Audio in

8 CH Audio input

5

Video in

Video input channels from 1-8

6

LOOP OUT

For outputting 1-8ch image independently

7

Spot out

Connect to monitor as an AUX output to display channel by
channel. Video would be displayed without OSD.
