DVR User Manual

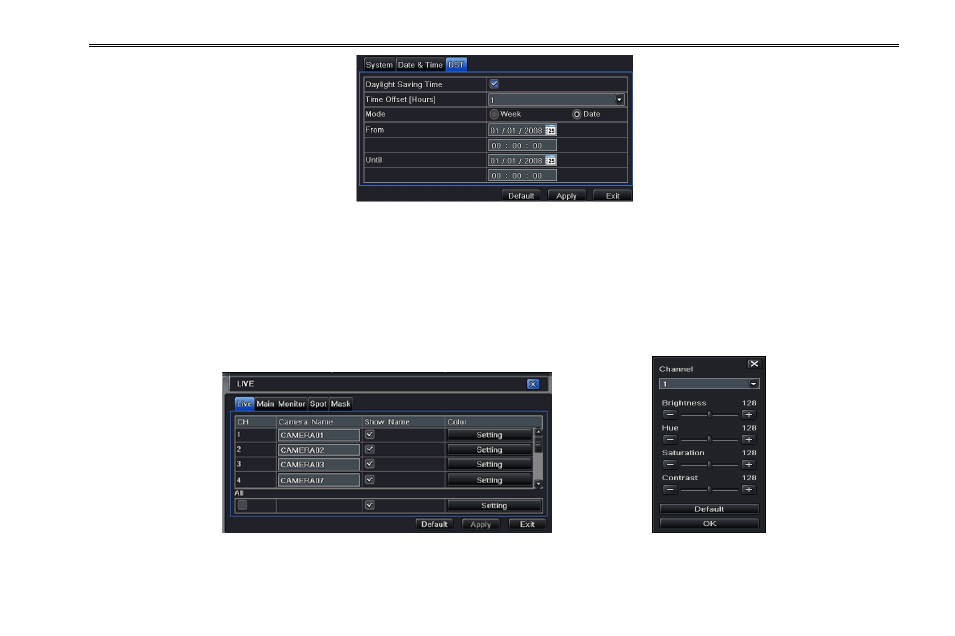

Fig 4-5 Basic Configuration-DST

4.2 Live Configuration

Live configuration includes four submenus: live, main monitor, spot and mask.

4.2.1 Live

In this interface, user can setup camera name, adjust colors: brightness, hue, saturation and contrast.
Step1: Enter into MenuSetupLiveLive tab. Refer to Fig 4-6:

Fig 4-6 Live ConfigurationLive Fig 4-7 Live-Color Adjustment

Note: A soft keyboard will pop up by clicking the camera name. User can self-define the camera name.
Step2: For a particular camera/channel setting, please click “setting” button to see a window as Fig 4-7:
