6 Operation

48

B-290 Operation Manual, Version I

6 .1

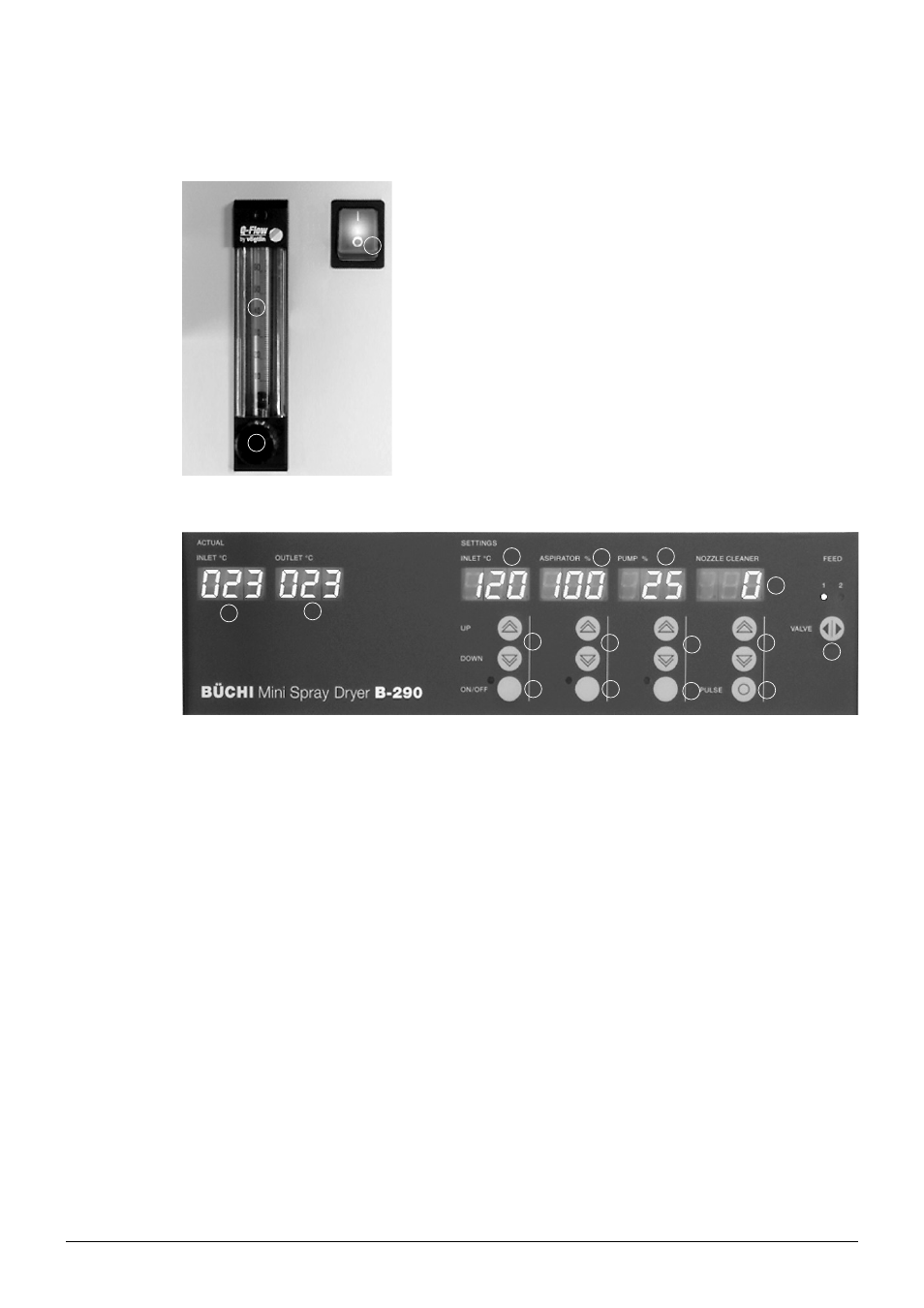

Layout of the operating and display elements

1

2

3

a Main switch
b Flow meter for spraying gas volume
c Needle valve for gas flow adjustment

Fig. 6.1: Switch, flow meter and valve

2

3

4

1

6

7

8

13

9

10

11

12

5

14

15

a LED display current value inlet air temperature
b LED display current value outlet air temperature
c LED display set value inlet air temperature
d LED display aspirator output in % of max. aspirator rate
e LED display pump output in % of max. pump rate
f LED display for nozzle cleaning
g Feed switch valve button

h Nozzle cleaner interval adjustment
i Manual operation pneumatic nozzle cleaner
j Regulating push-button pump
k Main switch pump
l Regulating push-button aspirator
m Main switch aspirator
n Regulating push-button heating
o Main switch heating

Fig. 6.2: Operating and display elements
