5 Putting into operation

31

B-290 Operation Manual, Version I

5 .6

Installing the filters

Notice

Risk of instrument damage by internal overpressure.
• External supply pressure must meet the system specifications
• Exchange clogged or defective filters immediately
• Dispose of clogged or defective filters immediately

5 .6 .1

Inlet filter installation

Use
Pre-filtering of environmental air to keep most impurities and particles away from the spray drying
process.

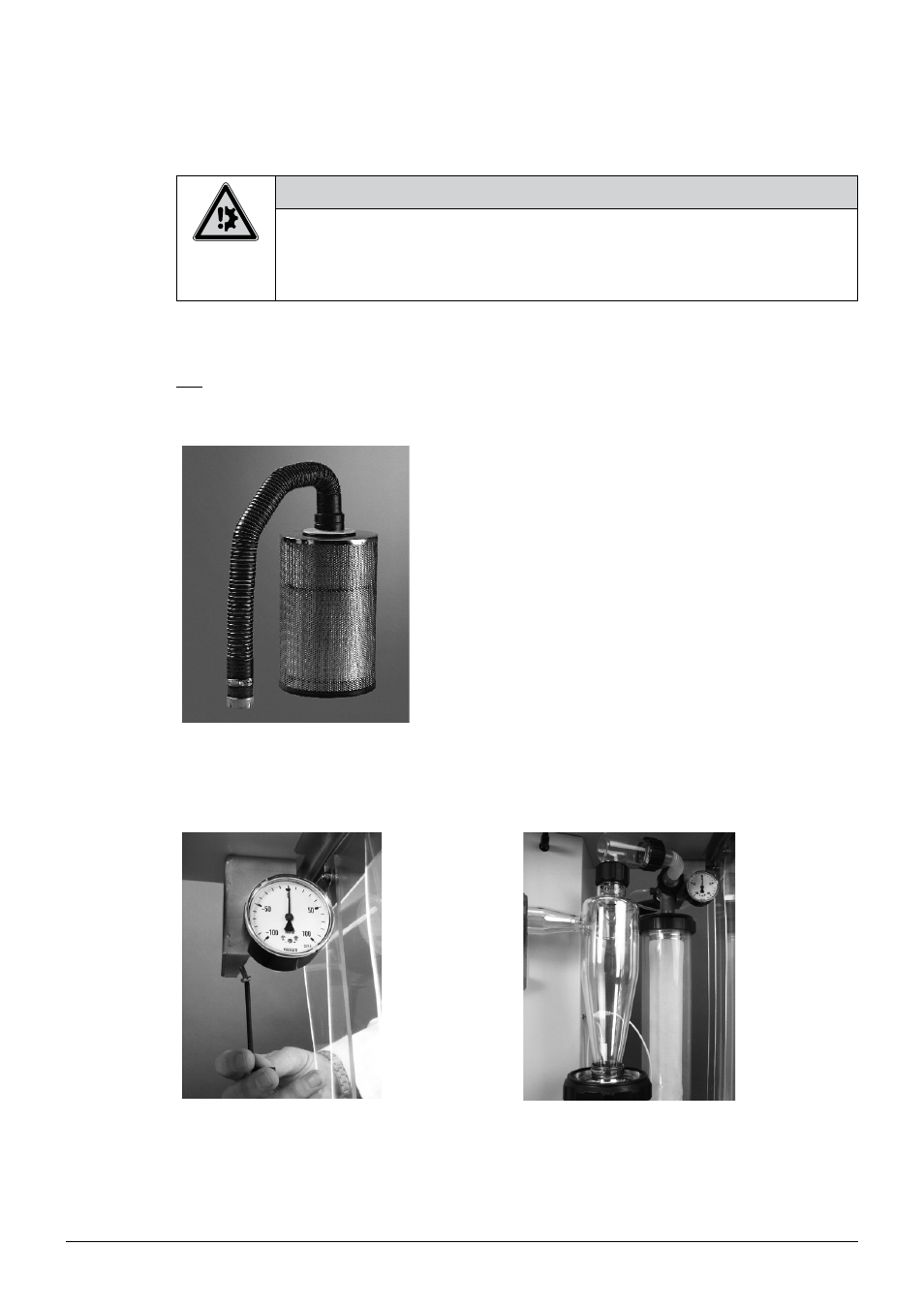

Fig. 5.5: Installing the inlet filter

To install the inlet filter directly connect it to the air inlet of the heater.

5 .6 .2

Outlet filter installation

Fig. 5.6: Installing the outlet filter

• Screw the support angle to the bottom side of the panel.
• Mount the filter directly.
• Install the connecting tubing between cyclone and filter with an SVL 42.
