5 Putting into operation

38

B-290 Operation Manual, Version I

1

2

a Exhaust tube of cyclone or filter, respectively
b Tubing between aspirator and heater

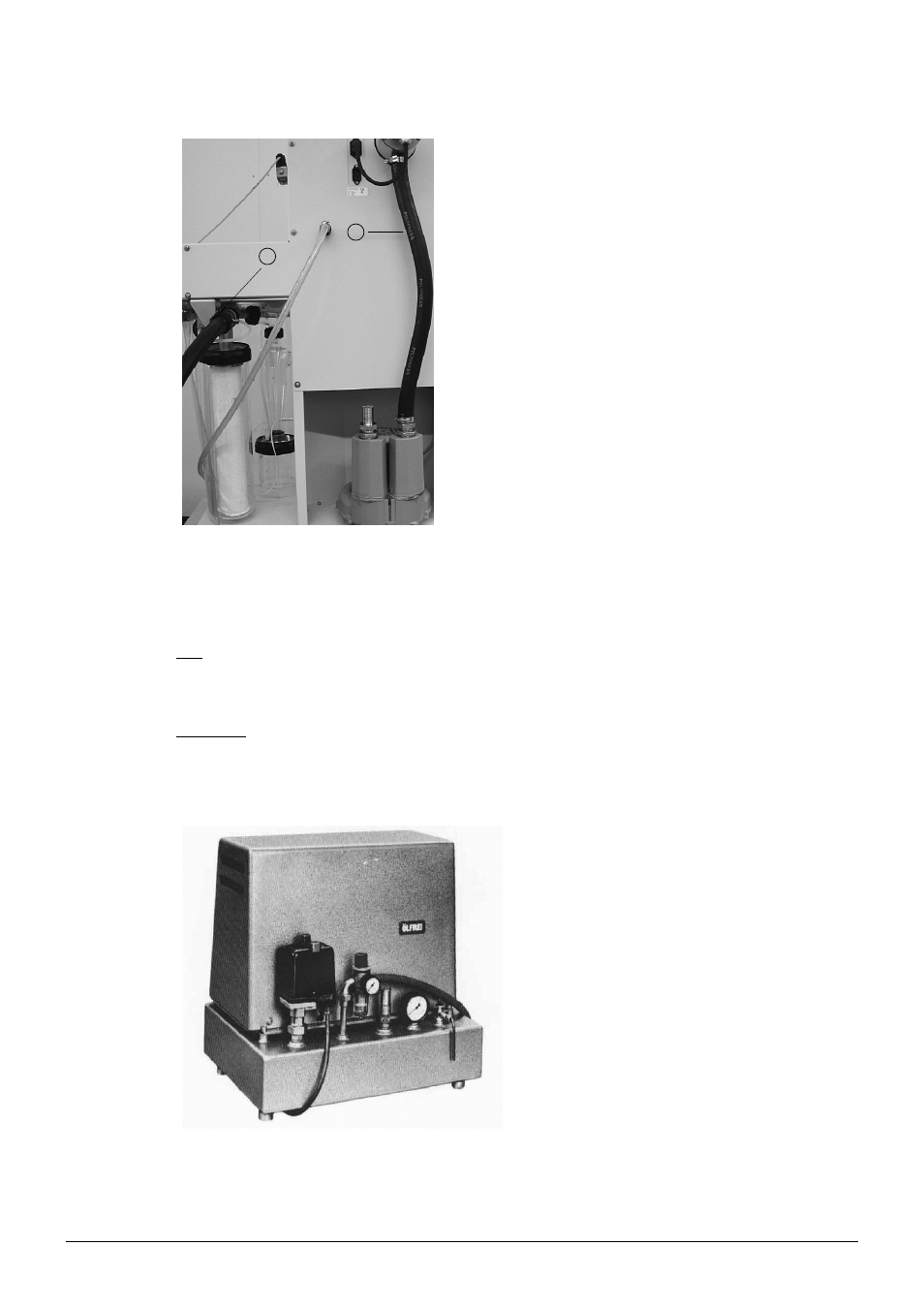

Fig. 5.15: Open mode set-up in pressure mode

5 .9

Installing the compressor

Use
For the spray process compressed air or gas is necessary. If no compressed air supply is available in
the laboratory the compressor can be installed instead.

Installation
• Place it in a dry, dust free and well tempered room with appropriate ventilation.
• Follow the compressors manual to install the device.
• Connect the outlet of the compressor to the compressed air inlet of the Mini Spry Dryer B-290.

Fig. 5.16: Oil- and dust-free air compressor

NOTE
Set the compressor to 6 bar output pressure to achieve recommended standard spray conditions.
