1-2 62-02575-07
1.2.1 Micro-Link 2 Controller/DataCORDER
The Carrier Transicold Micro-Link 2 Controller (see Figure 1-1) is a custom-designed, microprocessor-based control
system which is fitted with a separate DataCORDER module. The DataCORDER consists of:
1. Microprocessor
2. Program memory
3. Data memory
4. Real time clock (RTC)
5. Six thermistor inputs (2 Air Temperature and 4 Cargo Temperature)
6. Two voltage inputs
7. Four status LED’s
8. Two communication ports (serial)
9. Power supply (optional battery pack)

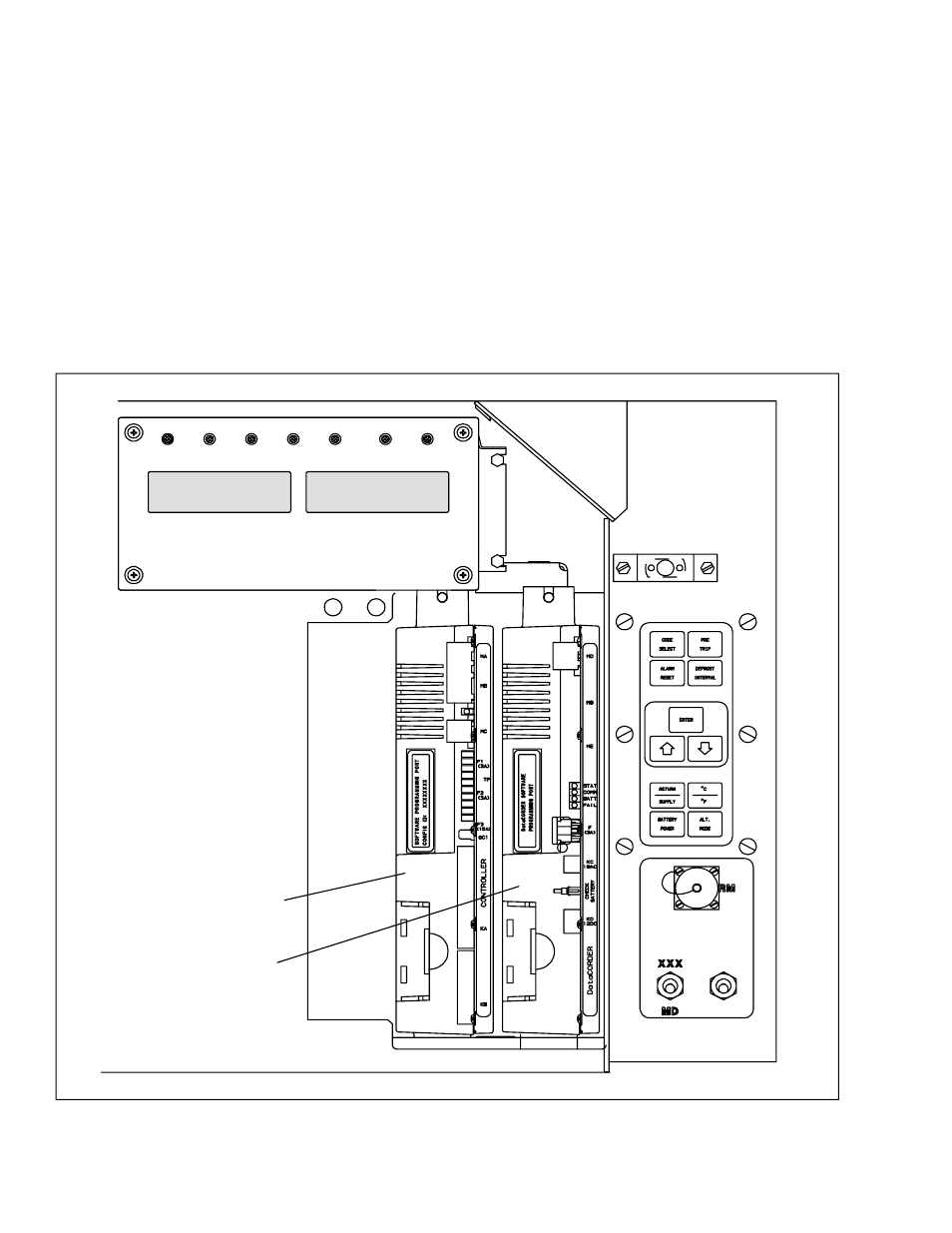

CONTROLLER
DataCORDER
Figure 1-1. Micro-Link 2 Controller and DataCORDER
