SECTION 2
SYSTEM SETUP
2.1 HARDWARE PLATFORMS SUPPORTED
The DataView Software will run on a variety of DOS based machines. We recommend the use of a desktop or laptop
machine with at least 3MB free disk space and a VGA monitor for displaying graphics, for most printing and report
generation functions. Other, less capable computers may be used for the actual data extraction.
2.2 INTERROGATION CABLES
Cable requirements may differ between interrogation devices. For cable connections see Figure 2-1.
9v
ol
t
DataReader
Computer Device
DataReader
Micro-Link 2
1
2
3
4
5 6
7
8
9
10
1
1. DataReader
2. Cable, Download
3. Cable, Adapter
4. Cable, Upload
5. Battery, Alkaline -- 9 Volt
6. Software, DataView (DOS)
7. Battery Pack with Charger
8. Cable, Battery
9. Cable Assembly
10. Adapter
NOTE
DataReader Kit includes items 1 through 6, item 2 is not sold separately.
DEUTSCH PLUG
VEAM PLUG
H. P.
PALMTOP
DEUTSCH PLUG

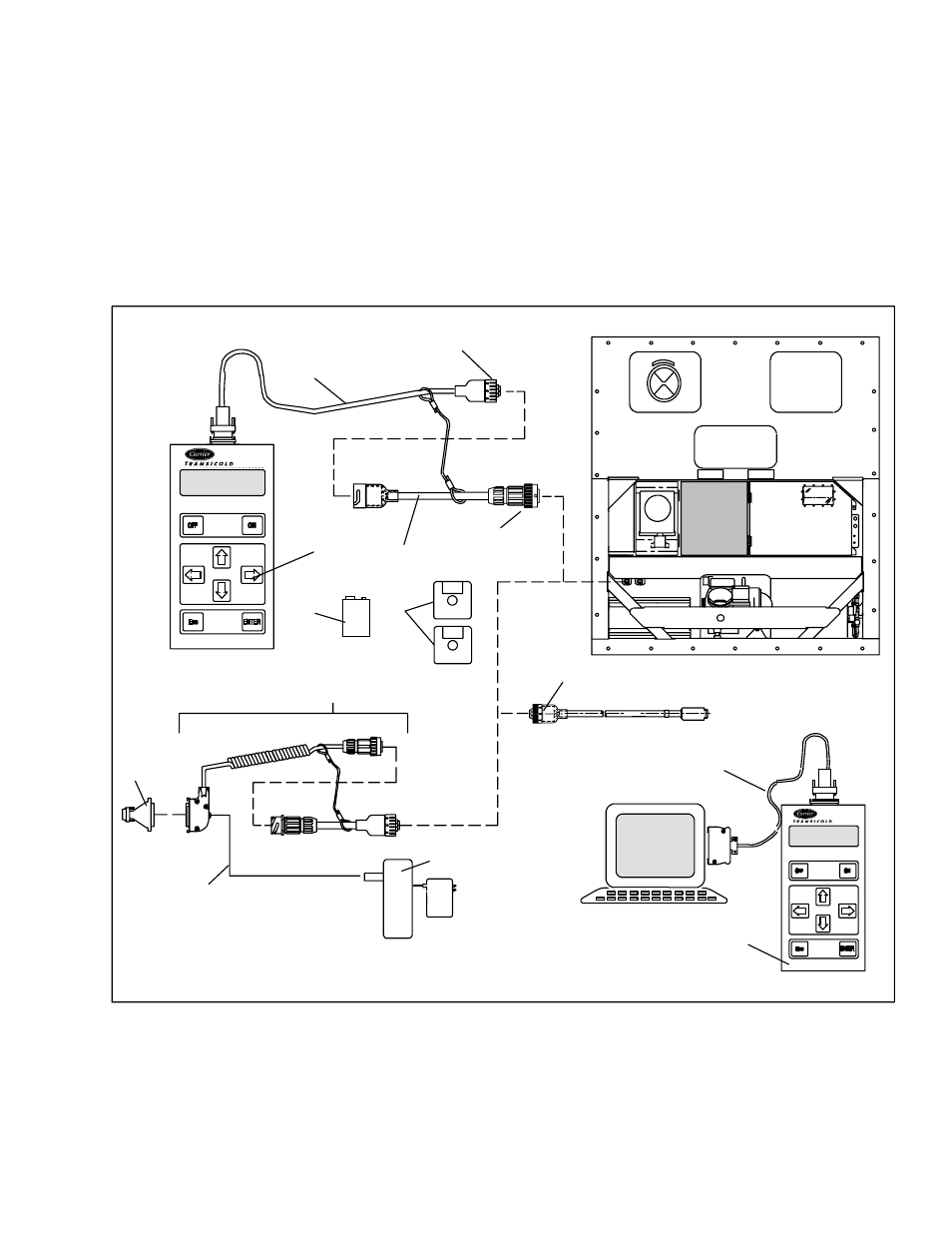

Figure 2-1. Communication Cable Connections
