SECTION 4
OPTIONAL HARDWARE
4.1 DataReader
The DataReader (see Figure 4-1) is a simple to operate hand held device designed for the primary purpose of
extracting data from Container Systems and then uploading that data to a PC. It has the ability to store multiple data
files.
DataReader
OFF
ENTER
ON
Esc

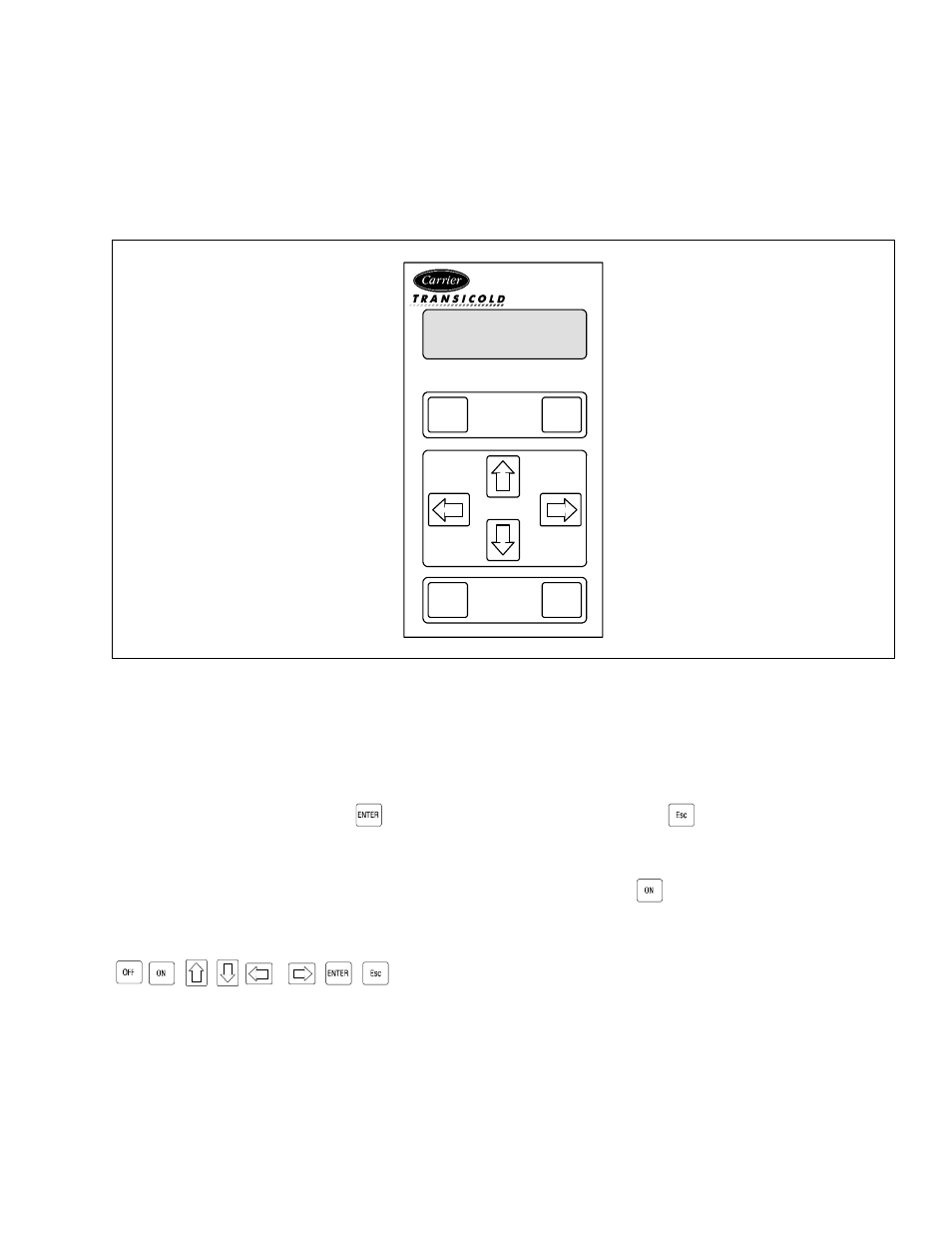

Figure 4-1. Hand Held DataReader
4.2 OPERATOR INTERFACE
The operator interface is kept simple by the use of user selection menus. To move within a menu the arrow keys are
used and to make a menu selection
is pressed. To escape from a menu press
.
Although the DataReader keypad is primarily for data extraction from the DataCORDER, the user can also perform a
number of basic system commands and enter basic information.
The DataReader will perform an auto power-off to extend battery life. Press
to turn the unit on.
a. Keypad
The keypad has eight keys in total:
b. LCD Display
The LCD display is an alpha/numeric dot matrix display. It has two lines of 16 characters each (see Figure 4-2).
