Using the Dolby Pro-Logic Surround
(Only for model SC-CH950)
What is the Dolby Pro-Logic Surround
System layout
The Dolby Pro-Logic Surround System recreates, in your home, the
powerful and dynamic sound space of a movie theater. It is suitable
for Dolby Pro-Logic encoded source materials.
This speaker system has built-in surround speaker, so you can
easily enjoy the surround sound.
To get the more dynamic sound while enjoying the Dolby Pro-Logic
Surround, connect the rear surround speaker system (not in
cluded).
You can adjust the bass/treble sound, and delay time.
(See page 63.)
Select "PHNTM” (PHANTOM) of the Dolby Pro-Logic mode when
not connecting optional center speaker to this system. (See below.)

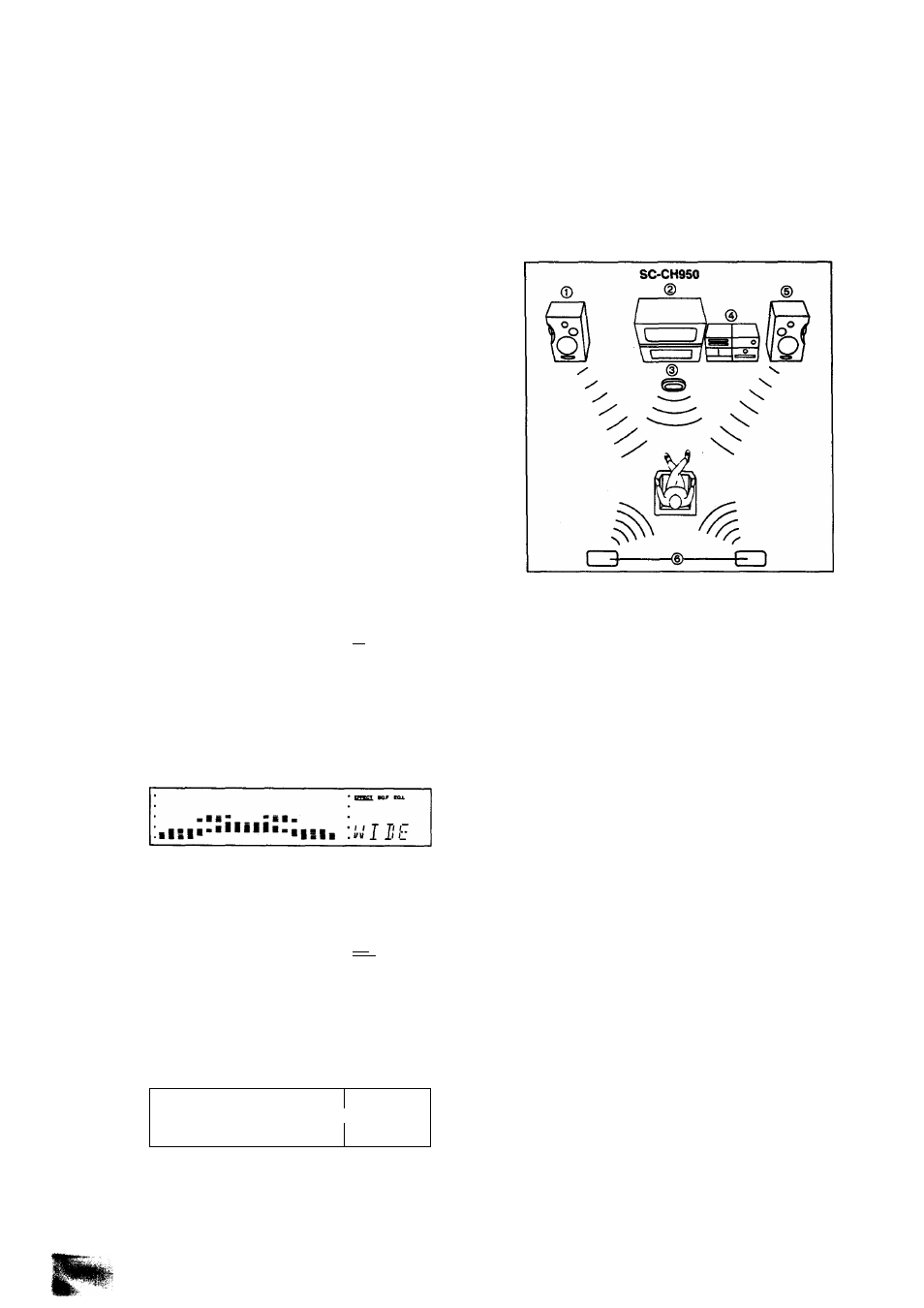

The system layout below is an example for the good sound effect.
About the Dolby Pro-Logic mode
There are following 4 modes of the Dolby Pro-Logic mode.
Select the appropriate mode according to the type of the speaker
setting you use.
[T]
NORM (NORMAL)
Select this mode when using a center speaker that Is smaller than
the front speakers. (In this case, the low frequency of the center
speaker channel Is played through the front speakers.)
• WCT
n r
iot
WIDE
Select this mode when using a center speaker that is the same size
of the front speakers. (In this case, it is necessary to connect
another amplifier to this system.)
0 Left speaker
(D Television set (not Included)
® Center speaker (not included)
@ This system
(D Right speaker
®
Surround speakers (not included)
Manufactured under license from Dolby Laboratories Licens
ing Corporation.
“Dolby” and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
3J PHNTM (PHANTOM)
Select this mode when not using the center speaker. (In this case,
the center speaker channel sound is played through the front
speakers.)
. I S - - S B .
tmcT ffts HU.
0
U ni T n/i
1
l i ( V I I t
3 ST (3 channel stereo)
Select this mode when using center speaker’only. In this case,
disconnect the surround speaker cables.
• WCT sor tax
> a i ” . - a i .
................................. - I I I .
: 3
5 r
