Display section
O e e e e e C l
—
1
J - = s ( ------------------ i X
c d O O caro ' i'—“
c p o l ■ J e C D • = l---------------
1
=
•®, ® are only for model
SA-CH9S0.
lARTZLOCK =
' ^NMONIUEWEDTHUFRISAT^LEEP «■■■■■■■À«
f
! H recb C playpn 0(№
'^^iTi \Tn iTi- iTl
iB/iiite'*®"“
, ij H ÙI & Œ': ŒI
BALANCE
g) @
VOLUME
= MAX
= MIN
MUTING

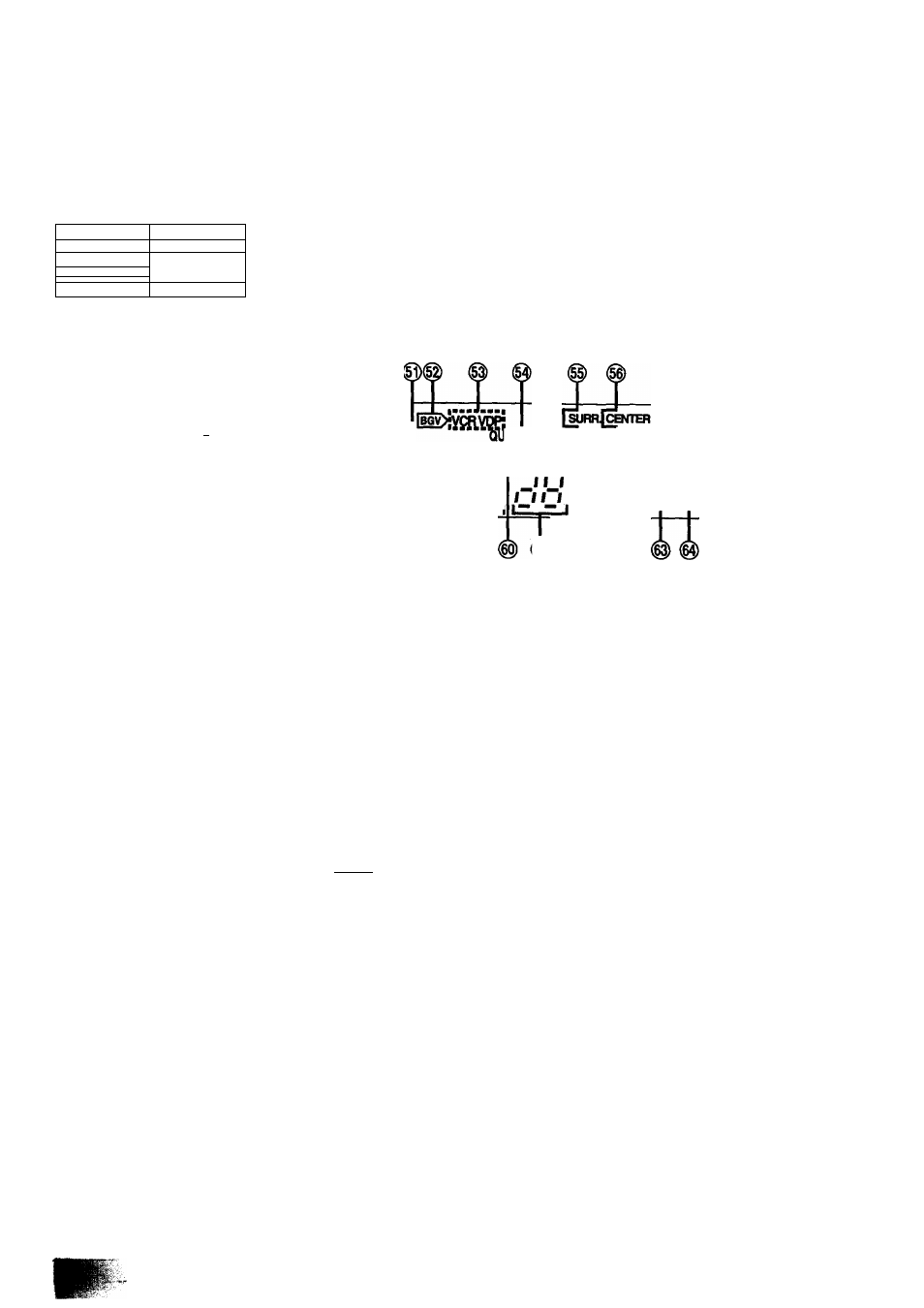

@) Timer mode indicators (□ REC, □ PLAY)
H REC: Lights when you have set the record timer mode.
0 PLAY: Lights when you have set the play timer mode.
@ Day indicators (SUN-SAT)
Shows the day of the week or the day the timer has been set
for.
@ Sleep timer indicator (SLEEP)
Lights when you have set thé sleep timer mode.
0 Timer on/off indicator (ON, OFF)
Lights together with the setting time to show the timer ON time
and OFF time.
@ BGV (background visual) indicator ( | bgv > )
Lights when listening to audio sound source.
@ Visual source indicators (VCR, VOP)
Lights to show it is possible to enjoy BGV (Back Ground
Visual) if you connect video deck or video disc player to this
system. (See page 73.)
Ig) Quartz lock indicator (QUARTZLOCK)
Lights when you precisely tune in a broadcast station.
@ Surround level display (SURR.)
(Only for model SA-CH950)
Shows the volume level of the surround speakers.
|§) Center level display (CENTER)
(Only for model SA-CH950)
Shows the volume level of the center speaker.
(g) Volume level display (VOLUME, MAX, MIN)
Shows the volume level.
@) FM STEREO/MONO indicator
(MONO, STEREO)
"STEREO” lights when an FM stereo broadcast is being re­
ceived. If you press FM mode button on the remote control to
select monaural mode, “MONO” lights.
(g) Alpha-numeric display
Shows the selected source, present time, and the contents of
the timer setting, received frequencies, volume level.
@) Memory indicator (MEMO)
Lights when the preset memory button is pressed.
@ Preset channel display
Shows the preset channel you select.
@ Channel indicator (CH)
Lights when the unit is in the preset tuning mode.
@ Balance display (L, R, BALANCE)
Shows the left-right volume balance.
g) Muting Indicator (MUTING)
Lights when you activate the muting mode.
