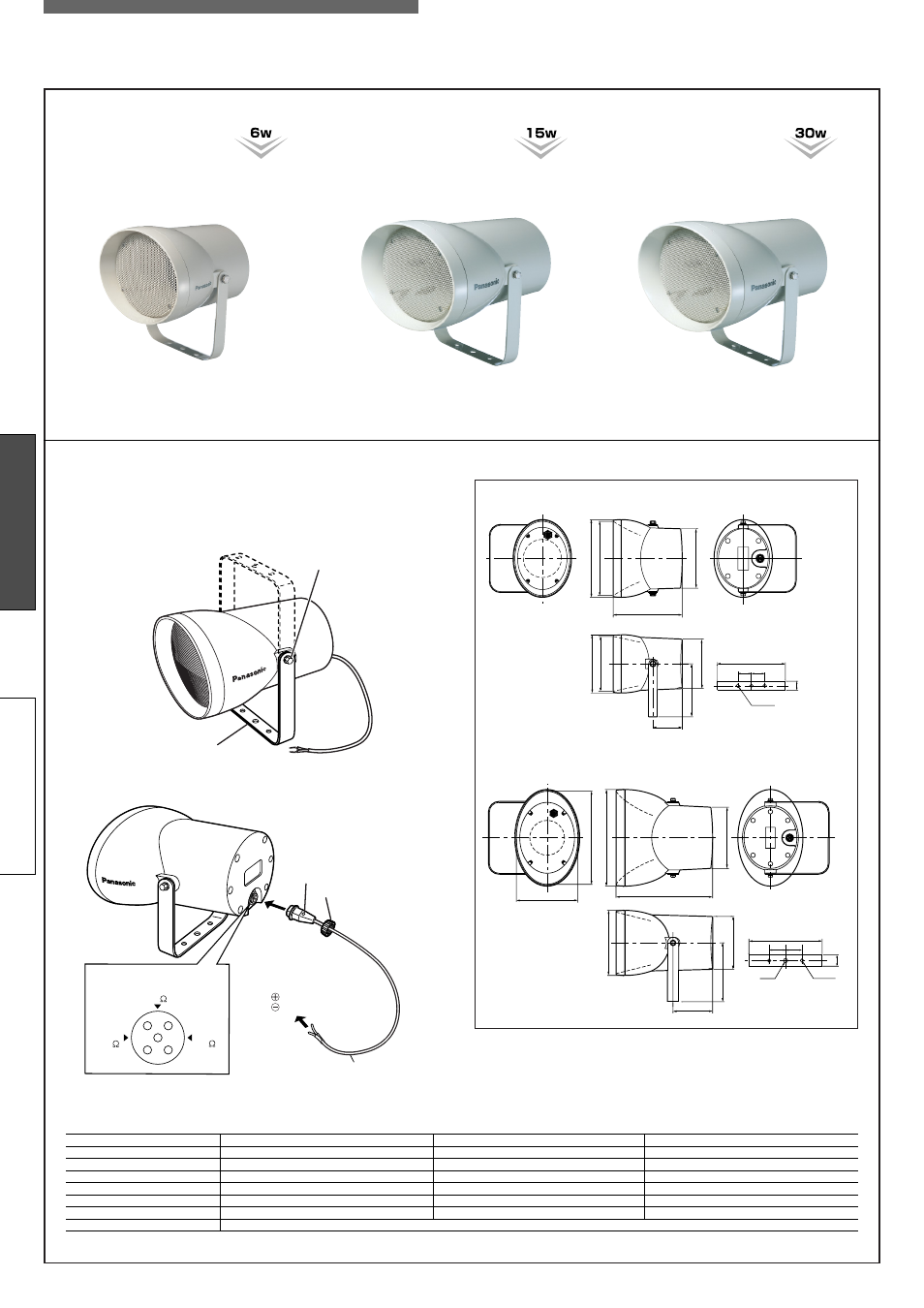

Panasonic WT-7006N - Manual

Ring
(White) marker
Impedance (100 LINE)
(in case of WT-7015N)
10W
1k
15W
670 5W
2k
To amplifier
Speaker cable
White: Negative or Common
Black : Positive
Clearhorn Speaker
WT-7006N
Clearhorn Speaker
WT-7030N
Bolt
Mounting Bracket
SPECIFICATIONS
Model No. WT-7006N WT-7015N WT-7030N
Rated Input 6 W 15 W 30 W
Input Impedance 1.7 k Ω (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) 330 Ω (30 W), 500 Ω (20W), 1 kΩ (10 W)
Sound Pressure Level 96 dB (1 m/ 1 W) 99 dB (1 m/ 1 W) 101 dB (1 m/ 1 W)
Frequency Response 200 ~ 12,000 Hz 180 ~ 15,000 Hz 180 ~ 15,000 Hz
Dimensions (W) x (H) x (D) 220 x 233 x 195 mm (with bracket) 300 x 284 x 300 mm (with bracket) 300 x 284 x 300 mm (with bracket)
Weight (Approx.) 1.5 kg 2.7 kg 3.3 kg
Finish ABS resin (Munsell 2.1Y 7.7/1.1)
Installation
Adjust speaker directivity, loosen two bolts on the sides of the
speaker and then position the speaker at the appropriate
angle. Retighten the bolts firmly.
Connections
Panasonic 140 155
210
3-ø10
83
150
195
168
165
220
25
38 38
193
WT-7006N
Panasonic
123
202
300
191
289
226
51 51
190 300
164
182.5
35
2-ш11 ш13
WT-7015N, WT-7030N
Clearhorn Speaker
WT-7015N
Dimensions
Unit: mm
