3D Disto, Operation 92
To measure for example a room's dimension, carry out the following steps:
1. Start-up the system as described in "5.1 Start-up Procedure".
3. To target the first point, for example a corner, press and use the arrow
keys or another method as described in "6.2 Viewfinder", to move the laser point
to the desired position.

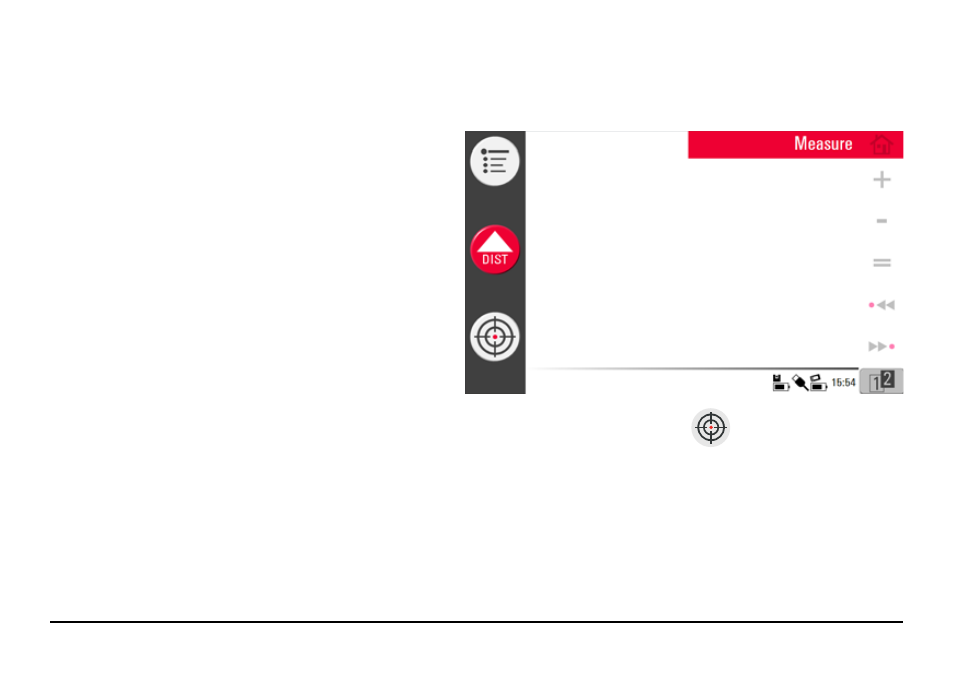

2. The following screen
appears:

While targeting ensure the laser beam is not split along corners or
edges. Otherwise this could lead to wrong measurements.

If laser point becomes a line due to an acute target angle to a wall the
system measures with the centre of the line.
