49 3D Disto, User Interface
Description

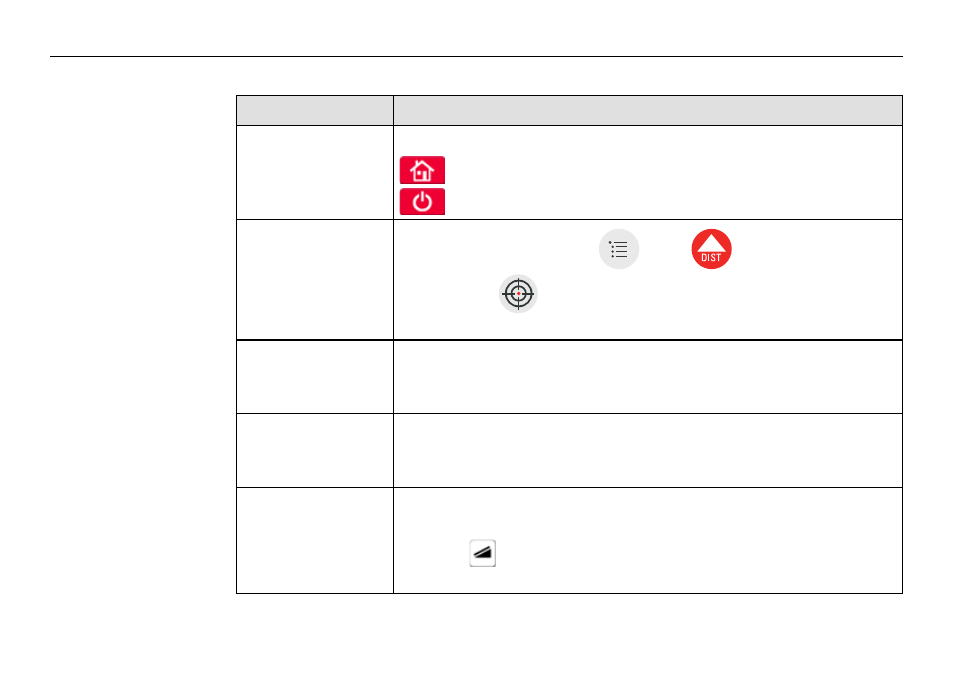

Element Description
Title bar Shows the running application.
save and close files or running applications.
shut down the Control Unit.
Main operation
bar
Contains the keys Menu , Dist , and
Viewfinder .
These keys are displayed during all applications.
Sketch area, alter-
nating with View-
finder Displays measured points, lines and areas and correct position
of 3D Disto in relation to measured points - either in foot print
or unfold mode/face mode.
Viewfinder, alter-
nating with sketch
area Shows 3D Disto’s live video stream used to target points over
longer distances, up to 50 m, exactly and to take pictures.
Results window Displays all results such as distances, heights, slopes, areas,
angles together with the corresponding result choice key, for
example . Use this key to switch between the result types.
Tapping on the results opens the calculator.
