3D Disto, Operation 88
Using Viewfinder
step-by-step 1. Press to start the Viewfinder. A second key press activates the lock mode,
a third one unlocks and closes the Viewfinder.
2. Targeting: There are different options to target a measurement point:
• Press the arrow keys on the screen for targeting, hold for fast 3D Disto turns
and short taps for single step turns.
• Tap & Measure Targeting: tap on a position on the screen. Laser point turns
to this point automatically.

A lock symbol on a key indicates the lock mode.

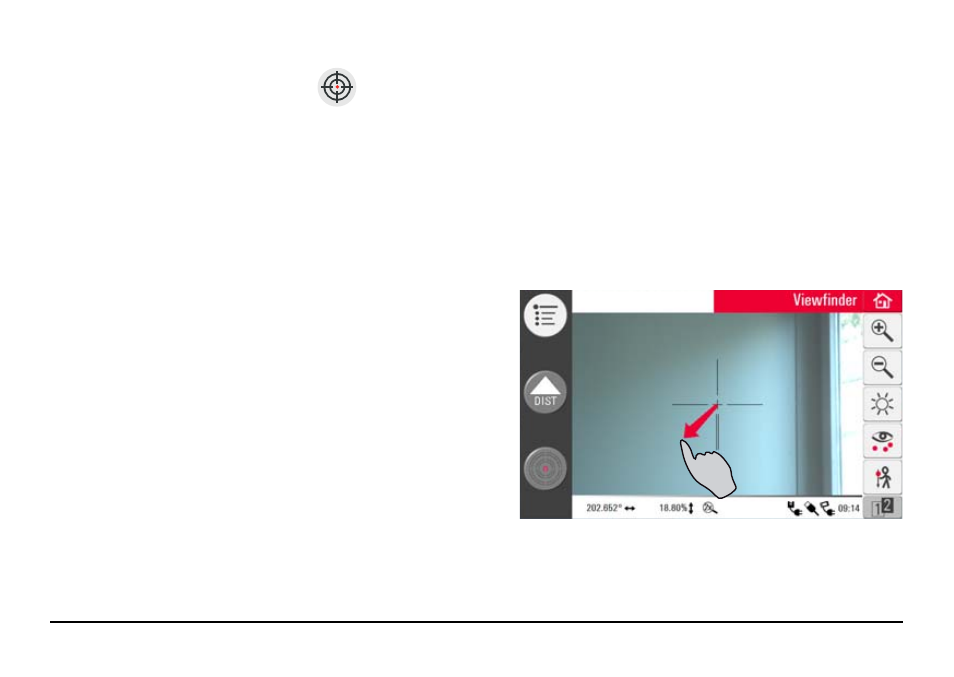

• Joystick Targeting: is acti-
vated by long tap on the
centre of the crosshairs. A
red dot appears in the
centre. Slide stylus on the
screen to turn 3D Disto in
this direction in real-time
until red arrow is released.
The longer the red arrow is,
the faster the 3D Disto
turns.
