53 3D Disto, User Interface
4.1.4 Icons & Symbols

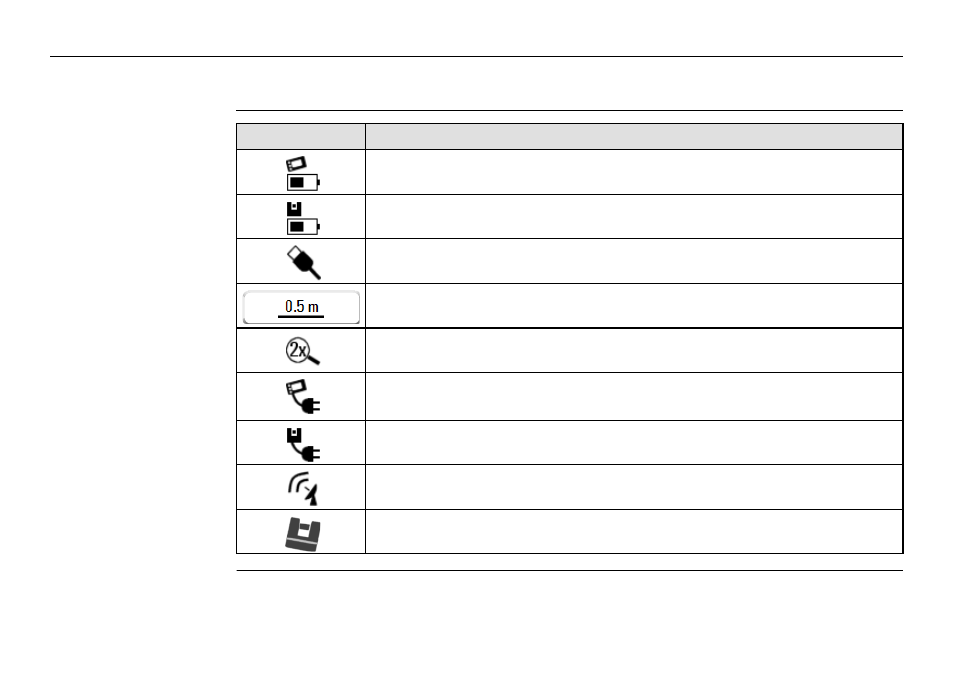

Common symbols
in status bar
Icon Description
Indicates remaining battery capacity for the Control Unit.
Indicates remaining battery capacity for the 3D Disto.
Indicates USB connection between Control Unit and 3D Disto.
Scale of sketch area and key to change zoom level.
Indicates zoom level/magnification of Viewfinder.
Indicates Control Unit is connected to power supply or powered by
3D Disto.
Indicates 3D Disto is connected to power supply.
Indicates WLAN connection is working.
Indicates tilt sensor is turned off.
