45

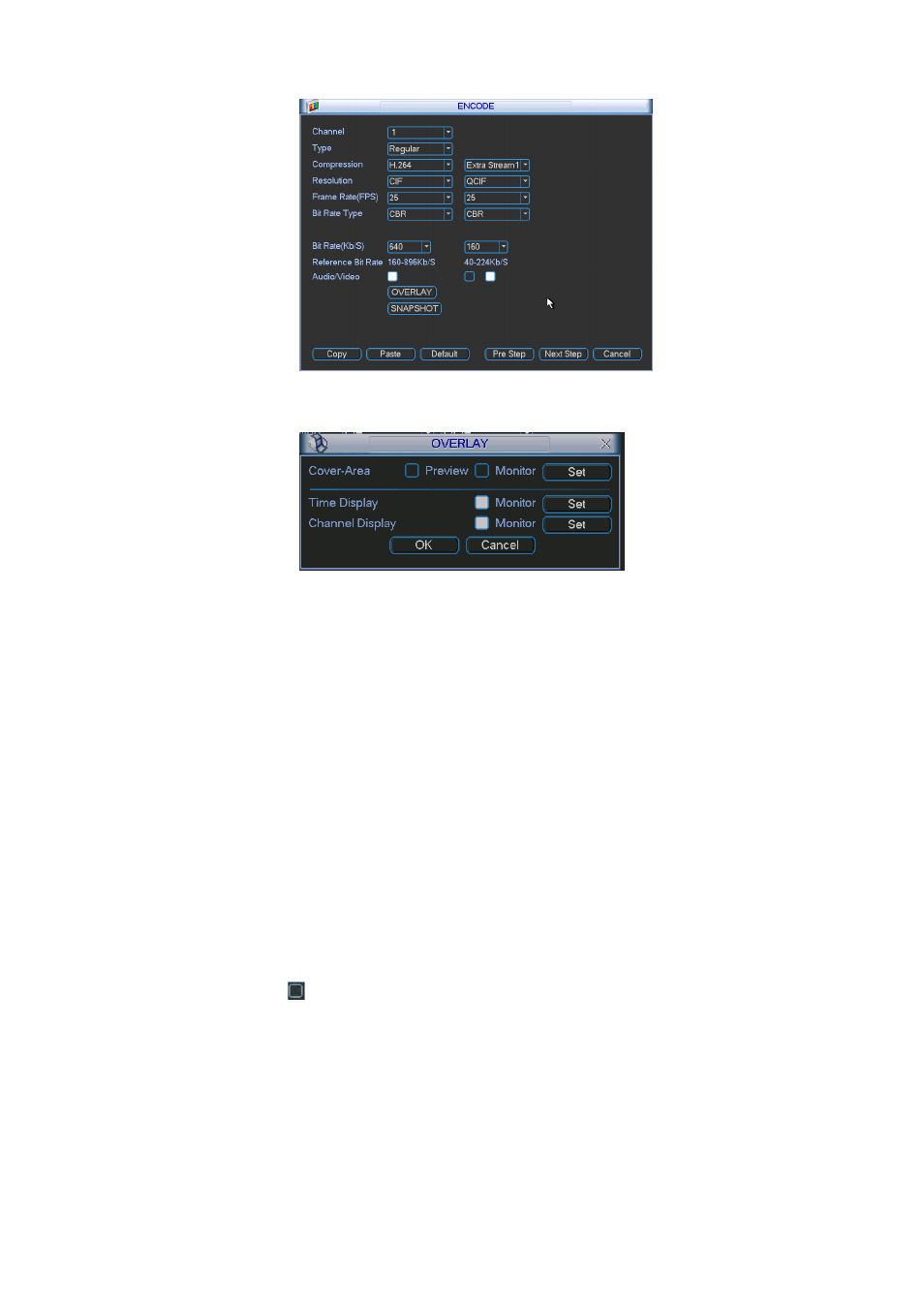

Figure 6-18
Figure 6-19
6.6.3 Schedule
In the main menu, from setting to schedule, you can go to schedule menu. See Figure 6-20.
 Channel: Please select the channel number first. You can select “all” if you want to set for the
whole channels.
 Week day: There are eight options: ranges from Saturday to Sunday and all.
 Pre-record: System can pre-record the video before the event occurs into the file. The value
ranges from 1 to 30 seconds depending on the bit stream .
 Redundancy: System supports redundancy backup function. It allows you backup recorded
file in two disks. You can highlight Redundancy button to activate this function. Please note,
before enable this function, please set at least one HDD as redundant . (Main
menu->Advanced->HDD Management)
 Snapshot: You can enable this function to snapshoot image when alarm occur s.
 Record types: There are four types: regular, motion detection (MD), Alarm, MD & alarm.
Please highlight icon to select the corresponding function. After completing all the setups
please click save button, system goes back to the previous menu.
At the bottom of the menu, there are color bars for your reference. Green color stands for
regular recording, yellow color stands for motion detection and red color stands for alarm
recording. The white means the MD and alarm record is valid. Once you have set t o record
when the MD and alarm occurs, system will not record neither motion detect occurs nor the
alarm occurs.
