Chapter 4 Data Interfaces
High-Speed RS-422/Mil-Std 188-114C Interfaces
81
SCT should be selected if the modem is set for Internal or Slave Clock mode.
SCTE should be selected if the modem is set for External Clock mode.
NOTE: The SCT output cannot be returned on the SCTE leads to eliminate
propagation delay problems with this interface.

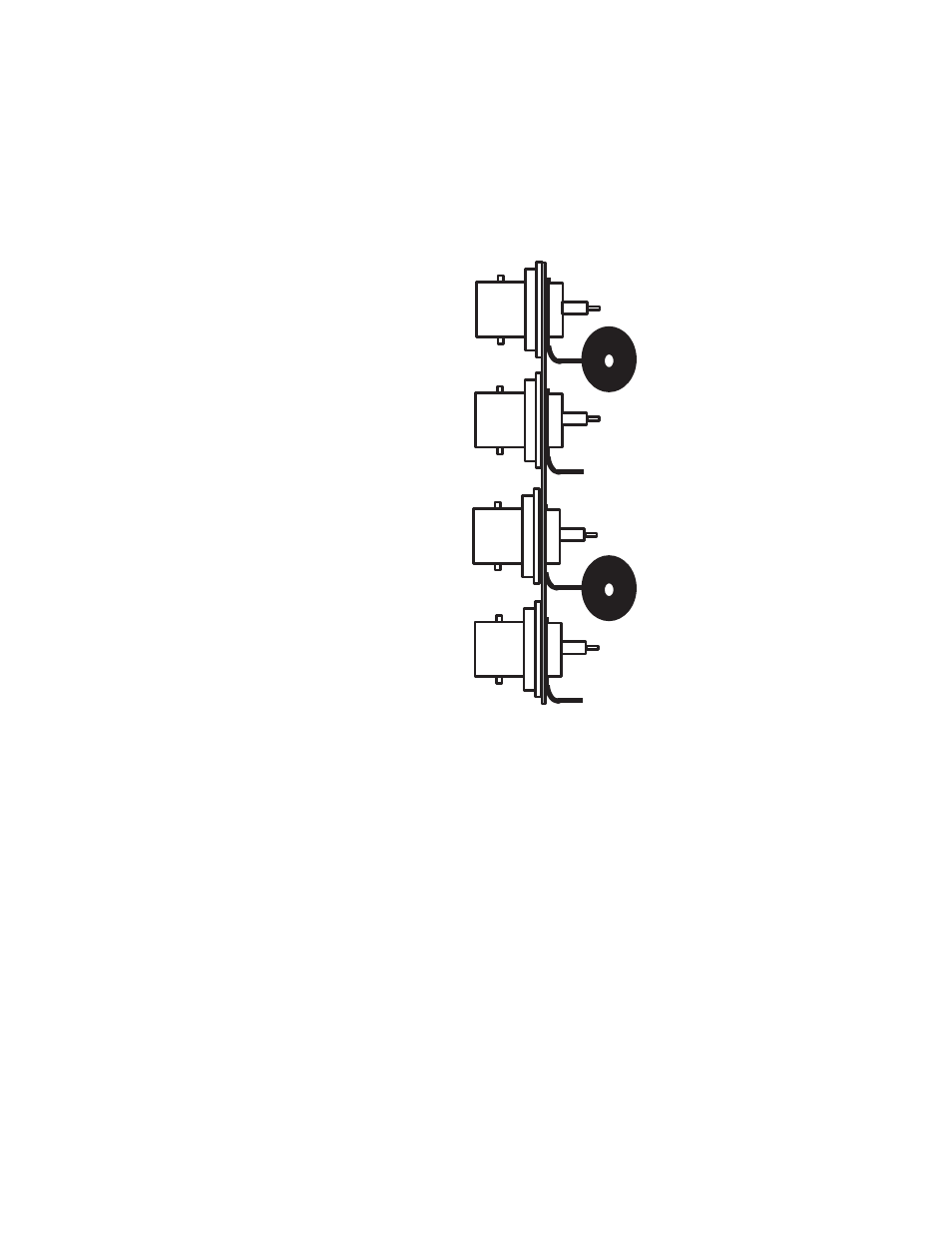

Figure 4-16 Four TwinAx Connectors (BJ-77, 3-Lug)
4.10.3 Model T22
The signaling used on this interface is RS-422A. Five TwinAx connectors (BJ-77, 3-lug) are used
for the physical connection (see Figure 4-17).
4.10.4 Model T88
The signaling used on this interface is Mil-Std 188-114C. Five TwinAx connectors (BJ-77, 3-lug)
are used for the physical connection (see Figure 4-17).
4.10.5 Model D22
The signaling used on this interface is RS-422A. A standard 37-position, D-type female
connector (DC-37) is used as the physical connection (refer to Table 4-23).
4.10.6 Model D88
The signaling used on this interface is Mil-Std 188-114C. A standard 37-position, D-type female
connector (DC-37) is used as the physical connection (refer to Table 4-23).
Receiver Clock
Received Data
Transmitted Data
Transmitter Clock
External
Transmitter Clock
or
