WEATHER GUARD Model 96121-3-01 Window Bulkhead, Mid/High-Roof, Mercedes-Benz Sprinter User Manual
Page 4
4

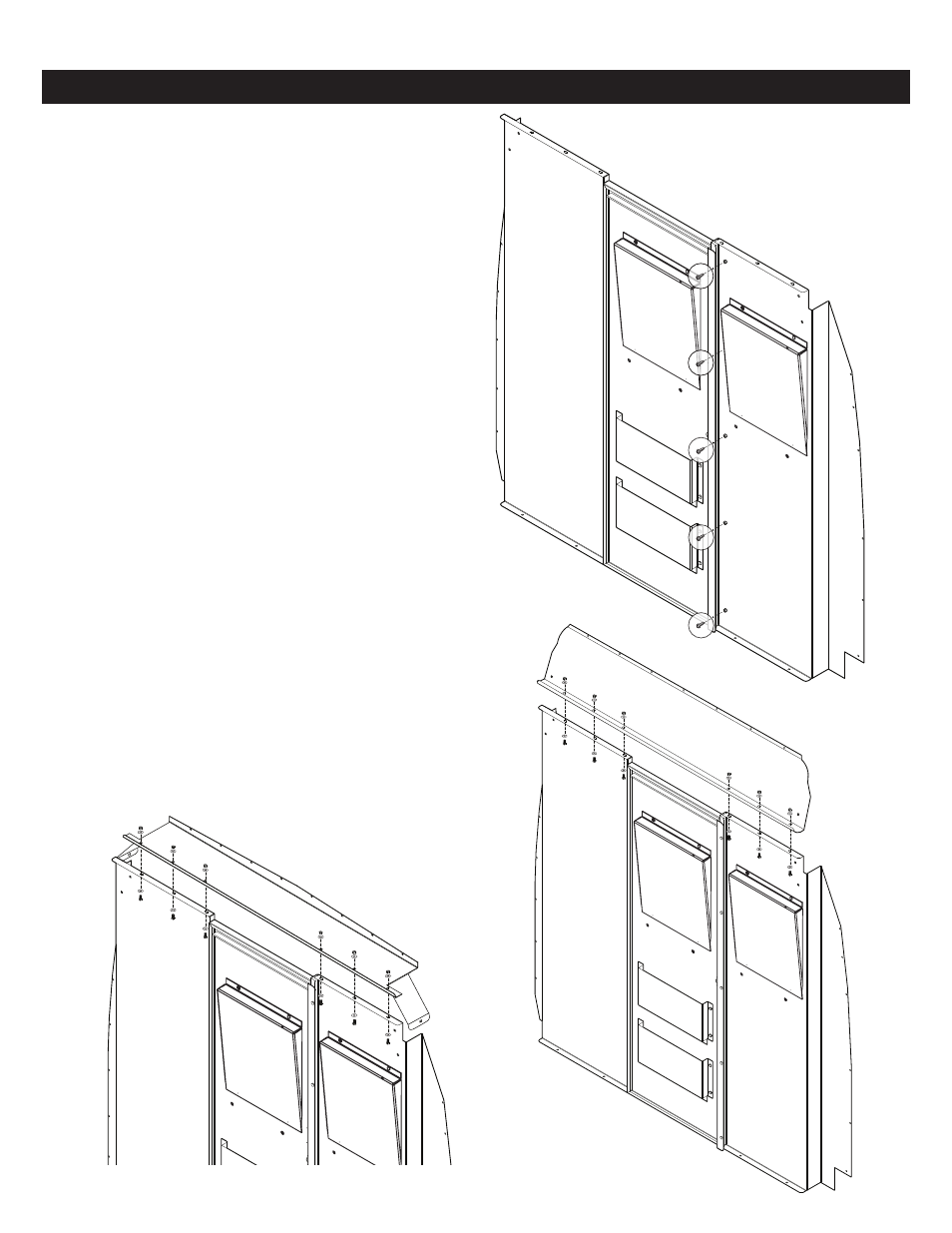

STEP 4. Attach the Passenger Side Panel to
Center Panel using five (5) #10-24 x 1/2" Hex Head
Screws and Serrated Flange Nuts.
DO NOT FULLY TIGHTEN FASTENERS AT THIS
TIME, PARTS MUST STILL MOVE IN SLOTS.
NOTE: Not all mounting holes will be used on
either of the vertical sides of the Center Panel
Extra mounting holes are for the swing door option
available for this Bulkhead.
STEP 5. Attach the Header Support (Standard or
High Roof) to the Bulkhead using six (6) 1/4-20 x
5/8" Hex Head Bolts, twelve (12) 1/4" Flat Washers
and six (6) 1/4-20 Nylon Lock Nuts.
DO NOT FULLY TIGHTEN FASTENERS AT THIS
TIME, PARTS MUST STILL MOVE IN SLOTS.
INSTALLATION INSTRUCTIONS
High Roof
Standard Roof
High Roof
Standard Roof
