WEATHER GUARD Model 96121-3-01 Window Bulkhead, Mid/High-Roof, Mercedes-Benz Sprinter User Manual
Page 13
13

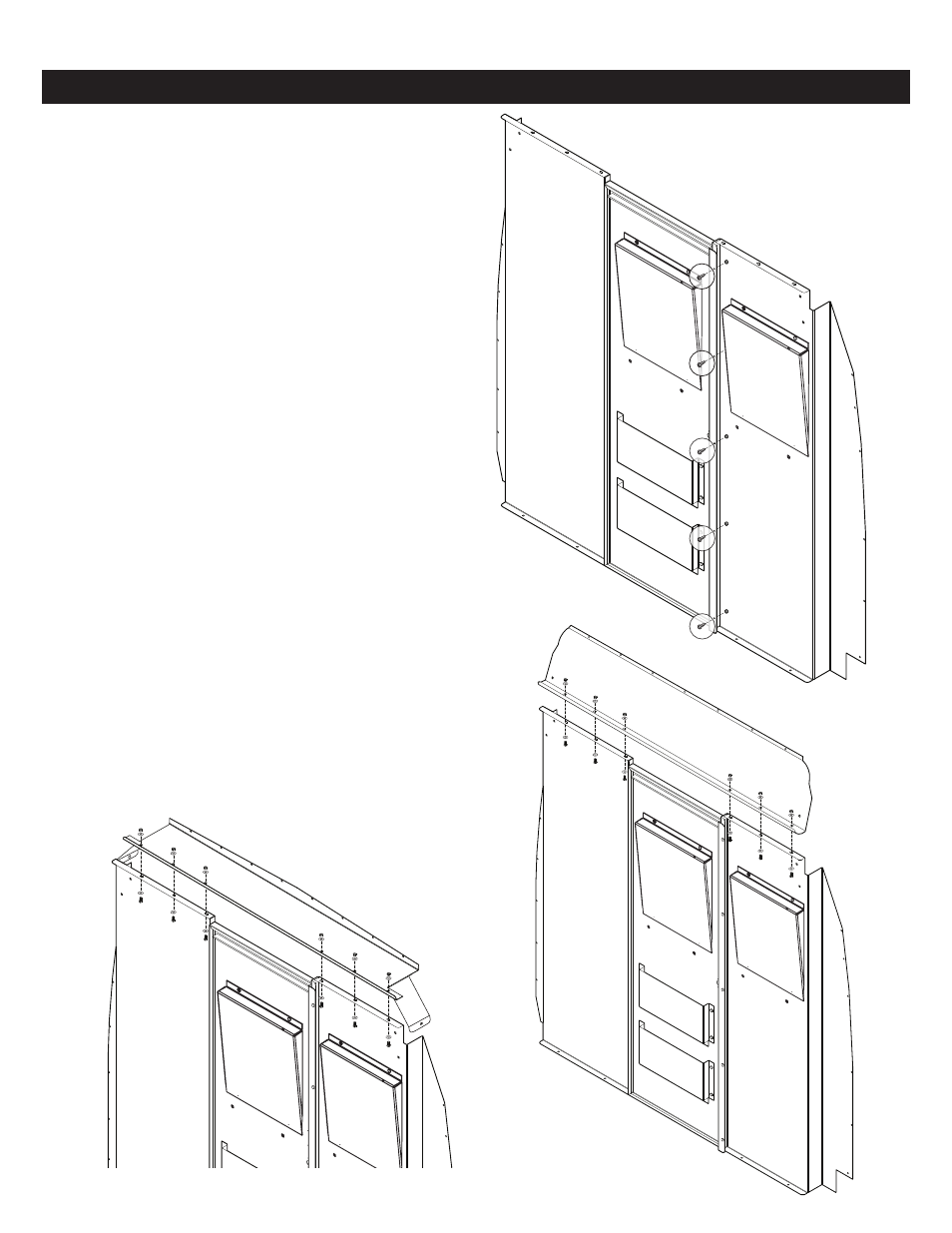

PASO 4. Fije el panel del lado del pasajero al panel
central con cinco (5) tornillos de cabeza hexagonal
de 10-24 x 1/2" y tuercas de brida serradas.
NO AJUSTE TOTALMENTE LOS SUJETADORES
EN ESTE MOMENTO. LAS PIEZAS TODAVÍA
DEBEN MOVERSE EN LAS RANURAS.
NOTA: no todos los orificios de montaje se
utilizarán en los lados verticales del panel central.
Los orificios de montaje adicionales son para
la opción de puerta de vaivén disponible para
esta mampara.
PASO 5. Fije el soporte de cabecera (techo
estándar o techo alto) a la mampara con seis (6)
pernos de cabeza hexagonal de 1/4-20 x 5/8",
doce (12) arandelas planas de 1/4" y seis (6)
tuercas de bloqueo de nylon de 1/4-20.
NO AJUSTE TOTALMENTE LOS SUJETADORES
EN ESTE MOMENTO. LAS PIEZAS TODAVÍA
DEBEN MOVERSE EN LAS RANURAS.
INSTRUCCIONES DE INSTALACIÓN
High Roof
Standard Roof
High Roof
Standard Roof
Techo estándar
Techo alto
