GLD Touch Screen Reference V1.4 – Issue 1 44 ALLEN & HEATH

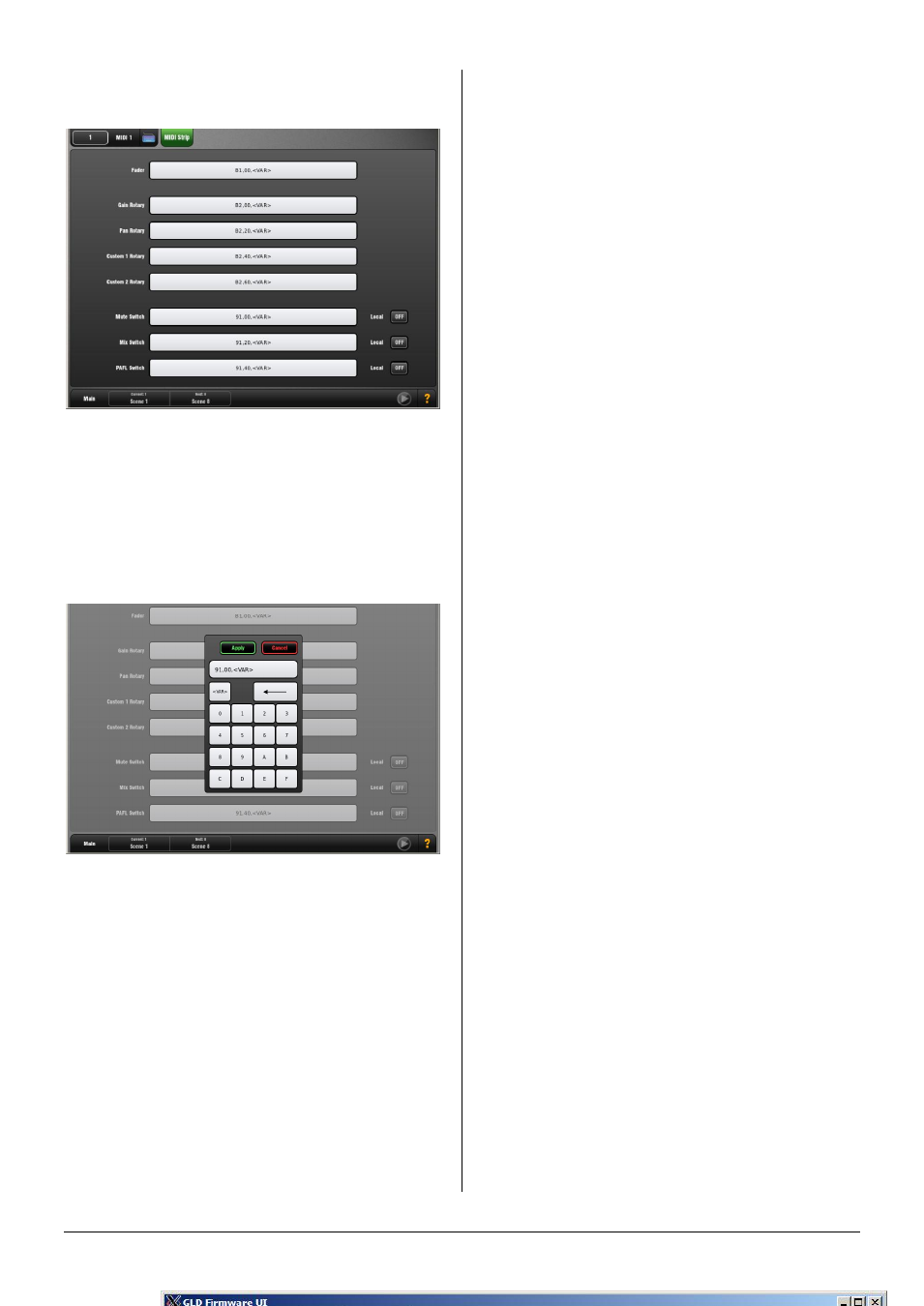

To set up MIDI Strips – Press the MIDI Strip Sel key while
the Processing screen is active to open its setup page.
Name and Colour - Touch the keyboard icon at the top left
of the screen to open the naming keypad and colour
selector.
Custom Message - Touch a box for each control to open
the MIDI message keypad. Type in the required message.
Type '' to represent a variable value. Touch Apply to
accept or Cancel to escape.
Local - Turn this button ON if you want the key indicator to
follow local presses (toggle on/off by pressing the key at
the surface). Turn this button OFF if you want the key
indicator to follow remote messages (the MIDI device sends
back a message to indicate current state). It is typical to set
Local ON if you are using MIDI Strips to control a slave
mixer. Set OFF if you are working with a DAW (Digital Audio
Workstation).
DAW Control driver for Mac computer - Download this
driver from the Allen & Heath web site if you are working
with a DAW running on an Apple Mac computer. This
converts the MIDI strip messages to the popular HUI or
Mackie Control protocols.
Note A driver is not available for Windows PC computers.
Template Show MIDI Strip defaults - The following default
CC and Note on/off messages are assigned within the
factory Template Shows for MIDI Strips 1-32 (hex values
shown):
• Fader =
B1, 00, to B1, 1F,
• Rotary Gain = B2, 00, to B2, 1F,
• Rotary Pan = B2, 20, to B2, 3F,
• Rotary Custom 1 = B2, 40, to B2, 5F,
• Rotary Custom 2 = B2, 60, to B2, 7F,
• Mute key = 91, 00, to 91, 1F,
• Mix key = 91, 20, to 91, 3F,
• PAFL key = 91, 40, to 91, 5F,
To reset MIDI Strip controls - Hold down the Reset key
and then press the MIDI Strip Sel key. This does not
change the assigned MIDI messages but will reset their
values to all its switches off and fader to minimum position.
To reset MIDI Strip messages - You can restore the
factory default MIDI messages by recalling Scene 498 in the
Template Shows. This resets the messages for all 32 MIDI
strips. The Scene Filter is set to overwrite just the MIDI Strip
messages.
Refer to the Allen & Heath web site for the MIDI and TCP/IP
protocols.
